Prysmian 370HD06 155-165mm High Voltage Cable Cleat
bicon 370HD06
High Voltage Cable Cleat
Prysmian 370HD06Â high voltage cable cleats specifically designed to protect HV Cables and during installations for normal industrial areas, substations or outdoor unpolluted areas – forming part of the Prysmian BICON range of single way cable cleats.
Prysmian 370HD06 cable cleats with two-piece two bolt fixing are suitable for larger high voltage cables up to 165mm outer sheath diameter.
Epoxy coated cable cleats are available for heavy industrial substation and hazardous area locations – order code Prysmian 370HE06.
Prysmian 370HD06 cable cleat
Technical Specification
- Manufacturer Prysmian
- Cable Cleat Brand BICON
- Heavy Duty 2 Bolt Cleat
- Aluminium Cable Cleat
- Single Way Cable Cleat
- Two Piece Two Bolt Fix Design
- Cable Cleat Diameter Min 155mm
- Cable Cleat Diameter Max 165mm
370HE06 cable cleats manufactured by Prysmian from aluminium alloy can clamp cable diameters 155-165mm – weight per cleat 4291g.
| Cable Cleat Test Standard | EN 61917 |
| Type | 6.1.1 Metallic |
| Impact Resistance | 6.3.3 V Heavy |
| Lateral Load | 50 kN |
| Axial Load | 8 kN |
| Needle Flame | >120 secs |
Prysmian BICON High Voltage Cable Cleats 370HD06

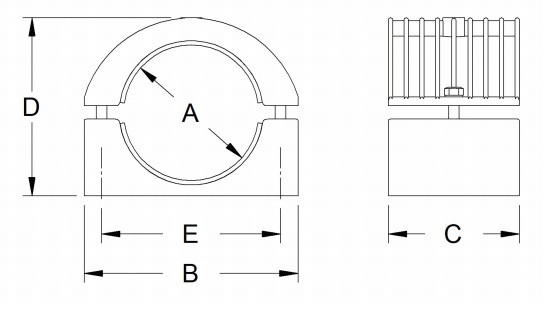

prysmian 370HD06 Cleat Dimensions
- B 260mm
- C Â 160mm
- D Max 215mm
- E 220mm
- Weight 4291g
SINGLE CABLE CLEAT SELECTION TABLE
Specification details for Prysmian 370HD06 cable cleat for single cable applications:
| Prysmian High Voltage Cable Cleat Selection | Prysmian High Voltage Cable Cleat Details | |||||||
| Prysmian BICON Order Code Standard | Prysmian BICON Order Code Epoxy | Cable Diameter | Dimensions (mm) | Weight (g) | ||||
| A (mm) | B | C | D | E | ||||
| Min | Max | Max | ||||||
| 370HD06 | 370HE06 | 155 | 165 | 260 | 160 | 215 | 220 | 4291 |
High Voltage Cable Cleats
Call T&D for technical advice about selecting cable cleats for high voltage power cable support and protection – this includes 6.6kV, 11kV, 15kV, 22kV and 33kV cables (BS6622 BS7835).
Cable cleats for supporting and retaining high voltage cables in transmission and distribution substation and overhead line electrical infrastructure.
Single Way Cable Cleats – plastic, stainless steel and aluminium cable clamps are available for clamping LV, MV & HV cables.
