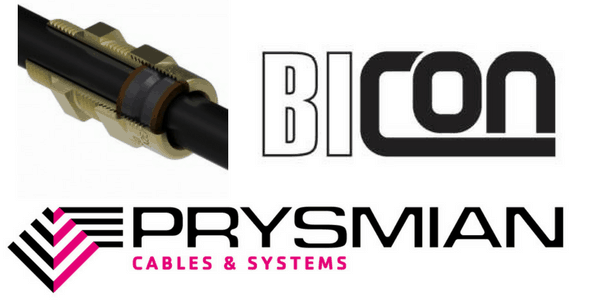

A2EX40 Hazardous Area Cable Glands – Prysmian KM494-57
Prysmian KM494-57 (A2EX40) A2EX hazardous area cable glands are certified ΙΙ 2GD, Ex e ΙΙ & Ex d ΙΙC under ATEX directive 94/9/EC providing high performance in high temperatures in deluge – suitable for most climatic conditions – weatherproof, waterproof and deluge proof.
Prysmian KM494-57 are suitable for terminating circular unarmoured cables in Zone 1 and Zone 2 locations.
Hazardous Area Cable Glands
- Manufacturer: Prysmian
- Brand: Bicon
- Order Code: KM494-57 (A2EX40)
- Quantity Per Kit: 1 Cable Gland
- Cable Gland Size: A2EX40
- Cable Dimensions Ø (B): Min 24.0mm Max 34.0mm
- Entry Thread (D) : M40×1.5
- Thread Length (E) : 15mm
- Protrusion Length (F): 46mm
- Hexagon A/F (G): 47.2mm
- Hexagon A/C (H): 53.6mm
- Nickel Plated Version: Prysmian KM494-57V (A2EX40)
- ➡ More Hazardous Area Cable Glands
Cable Glands & Terminations
Cable glands available in brass, aluminium, nickel plated or stainless steel for the termination of LV wire armoured, wire braided and unarmoured cables, including low smoke zero halogen cables in industrial non-hazardous areas.
Complete range of MV-HV Cable Terminations for the connection of medium/high voltage power cables to electrical equipment available.
To provide cable support to cable glands and terminations at LV Low Voltage, MV Medium Voltage or HV High Voltage, T&D distribute a complete range of cable cleats.
