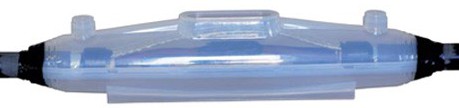

Prysmian MPJEMJ2U Resin Cable Joint
Low Voltage LV Industrial Cable Joints – Prysmian MPJEM2U
Prysmian MPJEM2U industrial straight cable joints are used for jointing unarmoured LV cables with two core, three core and four core copper conductors ranging from 25sqmm to 50sqmm and have a slim-line joint shell design to allow use with compression connectors.
MPJEM2U resin cable joints can be used to repair damaged cable or maintain and extend existing low voltage power cables with outside cable diameter up to 32mm.
T&D distribute the full range of MPJEM-U LV industrial cable joints suitable for cables ranging from 1.5sqmm up to 300sqmm.
Prysmian MPJEMJ2U Resin Cable Joint Technical Specification
- LV Resin Cable Joint Reference – Prysmian MPJEMJ2U
- Straight Cable Joints for LV Cables with Isocynate Free JEM Resin
- Cable Joint Suits 600/1000 Volt Unarmoured Polymeric (XLPE EPR) Cables
- Prysmian JEM Resin Suits XLPE, MDPE, PVC and Lead Cables
- Two Core Cables – 35sqmm – 50sqmm
- Three Core Cables – 35sqmm – 50sqmm
- Four Core Cables – 25sqmm – 50sqmm
- Connector – BT25CS (25sqmm), BT35CS (35sqmm), BT50CS (50sqmm)
- Minimum Box Entry Diameter (A) – 14mm
- Maximum Box Entry Diameter (B) – 32mm
- Box Length (C) – 245mm
- Internal Diameter (D) – 48mm
- Kits Exclude Cable Crimp Connectors – See Cembre Splices
- Also Heat Shrink Cable Joints | Cold Shrink Cable Joints
Prysmian MPJEM2U LV Cable Joints – Dimensions
