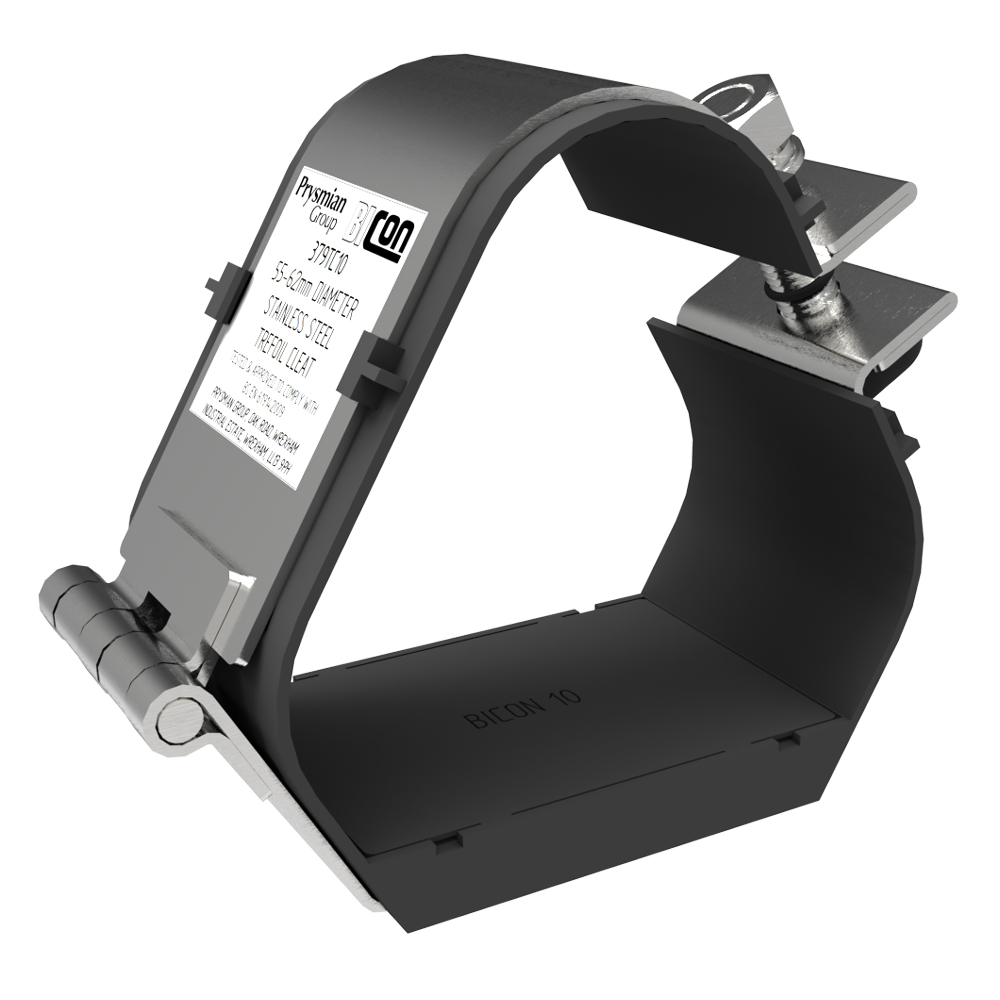

Stainless Steel Cable Cleats
Prysmian Orbit Cable Cleats are stainless steel cable cleats – the single piece, single fixing cable cleats are ideal for use within the harshest environments under the highest fault conditions providing cable support and protection to low, medium and high voltage power cables with operating temperatures -40°C to +120°C.
Stainless steel cable cleats are extensively specified for supporting and clamping cables in onshore and offshore hazardous area locations where high corrosion resistance to aggressive environments is required.
Prysmian Orbit cable cleats are part of the Prysmian Bicon range of cable cleats for cleating and clamping LV, MV and HV cables with diameters between 33mm to 150mm.
Stainless Steel Cable Cleats
- Suitable for cleating LV MV HV cables with diameters 33-150mm
- Manufactured from non-magnetic, corrosion resistant 316L stainless steel
- Liners are made from LSOH materials
- Orbit cable cleats suitable for standard and LSOH cable sheaths
- Can be used in harsh environments and with all standard ladder and tray systems
- Cleats fixed to the support structure with a single bolt
- Operating temperature -40ºC to +120ºC
- Stainless steel cable cleats comply with IEC 61914
Cable Cleats | Stainless Steel | Aluminium | Non-Metallic from Prysmian
Prysmian Orbit Cable Cleats Performance Data
- Type – 6.1.3 Composite
- Operating Temperature – 6.2 -40ºC to +120ºC
- Impact Resistance – 6.3 V.Heavy
- Needle Flame – 10.1 > 120 seconds
- Corrosion – 6.5.2 High, Outdoor – wet conditions
- Material – 316L Stainless Steel
BS EN 50368:2003 Cable Cleats for Electrical Installations has been withdrawn and replaced by BS EN 61914:2009.
Also from Prysmian ➡ Fire Resistant Cable Cleats | Trefoil Cable Cleats
| Prysmian Orbit Cable Cleats Selection | Prysmian Orbit Cable Cleats Details | |||||
| Prysmian BICON Order Code | Cable Diameter | Dimensions (mm) | Weight (g) | |||
| A (mm) | B | C | D | |||
| Min | Max | |||||
| 379SC01 | 33 | 40 | 65 | 86 | 60 | 435 |
| 379SC02 | 38 | 46 | 71 | 92 | 60 | 467 |
| 379SC03 | 45 | 53 | 78 | 99 | 60 | 499 |
| 379SC04 | 52 | 60 | 85 | 106 | 60 | 530 |
| 379SC05 | 59 | 67 | 92 | 13 | 60 | 526 |
| 379SC06 | 66 | 74 | 99 | 120 | 60 | 558 |
| 379SC07 | 72 | 82 | 111 | 132 | 60 | 639 |
| 379SC08 | 82 | 92 | 120 | 141 | 60 | 683 |
| 379SC09 | 92 | 103 | 130 | 151 | 60 | 737 |
| 379SC10 | 103 | 113 | 139 | 160 | 60 | 784 |
| 379SC11 | 113 | 123 | 148 | 169 | 60 | 850 |
| 379SC12 | 122 | 132 | 157 | 178 | 60 | 865 |
| 379SC13 | 131 | 141 | 165 | 177 | 60 | 908 |
| 379SC14 | 140 | 150 | 175 | 196 | 60 | 950 |
Installing Orbit Cable Cleats
All stainless steel cable cleats have a single central fixing hole for a 12mm diameter fixing bolt.
âž¡ For further information, specification and selection details about Prysmian Orbit Cable Cleats refer to the product sections below – see Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV cables.
View the complete Prysmian range of Single Way Cable Cleats.
Prysmian – mv hv 11kv 33KV CABLE ACCESSORIES
Prysmian manufacture the BICON range of electrical cable accessories including cable joints, terminations, glands and cleats to enable the installation of LV-HV power cables; contact T&D to discuss your 11kV-33kV requirements for jointing, terminating, cleating and glanding of medium voltage and high voltage cables.
Prysmian Orbit Cable Cleats (High Fault Current Rated)Download
