Prysmian Orion MV-HV Trefoil Cable Cleats 376TE06
Prysmian Orion 376TE06
Trefoil Cable Cleats
Prysmian Orion 376TE06 aluminium trefoil cleats are designed for use with larger diameter single core cables cleated in trefoil formation with deep section cast bases to aid easy cable installations.
Prysmian 376TE06 cable cleats with single or double bolt fixing are suitable for LV, MV, HV cables up to 75mm outer sheath diameter.
Standard cable cleats are available – order code Prysmian 376TR06.
- Manufacturer Prysmian
- Cable Cleat Brand BICON
- Range Orion
- Cable Cleat Order Code 376TE06
- Aluminium Cable Cleat
- Trefoil Cable Cleat
- Single or Double Bolt Fixing
- Trefoil Cable Outside Diameter Range: 62-75mm
- Tested In Accordance With EN 50368:2003
| BS EN 61914 | Clause | Classification |
| Cable Cleat Type | 6.1.3 | Composite |
| Operating Temperature | 6.2 | -40°C to +105°C |
| Impact Resistance | 6.3 | Heavy |
| Needle Flame | 10.1 | >120secs |
| Resistance To Short Circuit | 6.4.4 (2 short circuit) (HV Cable used) | 31kA rms, 80kA peak |
| Corrosion | 6.5.2 | High, Outdoor – wet conditions (coating required for marine locations) |
Prysmian Orion 376TE06 Trefoil Cable Cleats

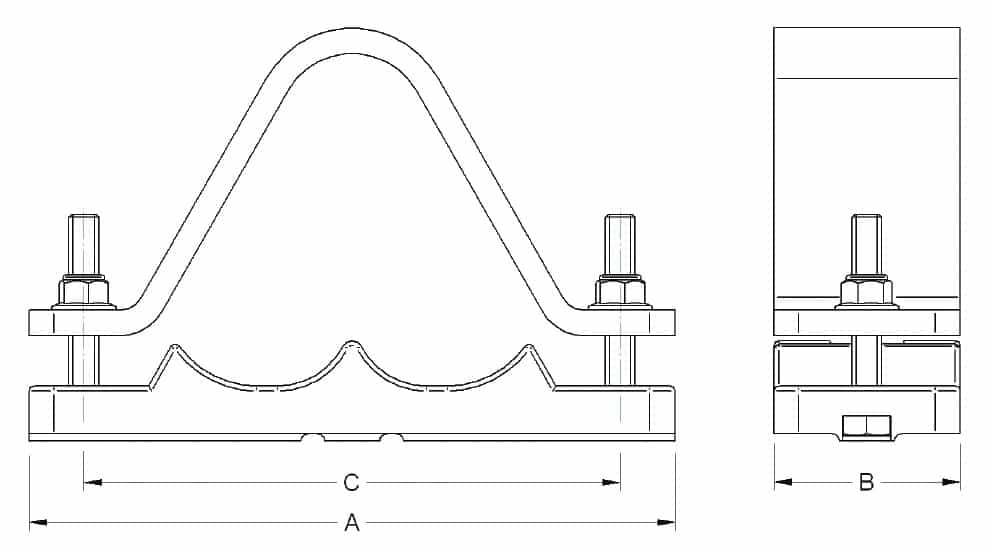

PRYSMIAN 376TE06 CLEAT DIMENSIONS
- A 260mm
- C 216mm
- B 80mm
- Weight 2.484kg
TREFOIL CABLE CLEAT SELECTION TABLE
Specification details for Prysmian 376TE06 cable cleat for trefoil cable applications:
| Cable and Cleat Selection | Cable Cleat Details | |||||||
| Prysmian BICON 376 Orion Cable Cleats | Cable Diameter | Dimensions (mm) | Weight (kg) | Stud Size | ||||
| A | C | B | ||||||
| Standard Cable Cleat | Epoxy Coated Cable Cleat | Min | Max | |||||
| 376TR06 | 376TE06 | 62 | 75 | 260 | 216 | 80 | 2.484 | M12 |
For harsh environment and hazardous area cable installations Prysmian Multicleats cable cleats consisting of aluminium or stainless steel bases with a stainless steel strap complete with a tensioning clip the BICON Multicleat system can be specified with an epoxy coating for superior corrosion resistance in outdoor polluted atmospheres – see also our complete range of stainless steel cable cleats.
âž¡ See Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV medium/high voltage power cables – this includes Prysmian Fire Resistant Two Bolt Cleats manufactured from cast iron with LUL approval suitable for all types of cable routes and environments.
Trefoil Cable Cleats
For further information about LV, MV & HV cable joints, terminations, cleats and glands visit Prysmian.
