Prysmian Ranger Cable Cleats

Cable Cleats

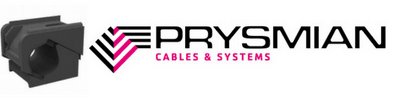

Prysmian Ranger Cable Cleats are self-adjusting two piece, single fixing plastic cable cleats providing cable support and protection against all weather conditions with operating temperatures -20°C to +90°C.

Prysmian Ranger cable cleats are part of the Bicon range of cable cleats for cleating and clamping cables with diameters between 13mm to 76mm made from ABS providing excellent oil and chemical resistance.

Prysmian Ranger

Cable Cleats

Features & Benefits

Suitable for cleating cables with diameters 13 to 76mm
Cable cleats made from ABS which provides good oil and chemical resistance
Sunlight (UV) and weather resistant
Overlapping self-adjusting ranges
Double stacking facility
‘C’ Section channel location aids fixing and stacking
Ranger cleats are not designed for long vertical runs

2 Bolt Cable Cleats

Cable cleats with 2 bolt fixing design are available in aluminium, plastic and high specification Low Smoke Zero Halogen (LSOH) polymer material.

➡ Prysmian also have a range of plastic 2 bolt cable cleats manufactured from black nylon 66 with two piece, two fixing cable cleats for 50-94mm cable diameters.

A Low Smoke Zero Halogen version is also available for use with Prysmian Draka Saffire OHLS and Afumex cables.

Also from Prysmian ➡ Fire Resistant Cable Cleats | Trefoil Cable Cleats

Prysmian Ranger Cable Cleat Selection			Prysmian Ranger Cable Cleat Details
Prysmian BICON Order Code	Cable Diameter		Dimensions (mm)				SWL FOS2 (kgfl)	Weight (g)
	A (mm)		B	C	D	E
	Min	Max	B	C	D	E
382AA01	13	18	35.5	47	49	18	300	51
382AA02	17	22	40	47	54	20	260	52.5
382AA03	21	28	45	47	62	24	295	63
382AA04	27	37	53	47	67	30	167	76
382AA05	36	51	69	47	92	36	158	121
382AA06	50	76	92	47	111	52	110	193

Installing RANGER CABLE CLEATS

The cable cleat should be mounted on suitable M10 fixings. There is no need for any channel adaptor when mounting on to a ‘C’ section channel. SWL data based upon the use of commercial grade 4.6 mild steel.

➡ For further information, specification and selection details about Prysmian Ranger Cable Cleats refer to the product sections below – see Prysmian Cable Cleats to view cable support clamps for LV, MV & HV cables including short-circuit protection for 11kV and 33kV cables.

View the complete Prysmian range of Single Way Cable Cleats.
