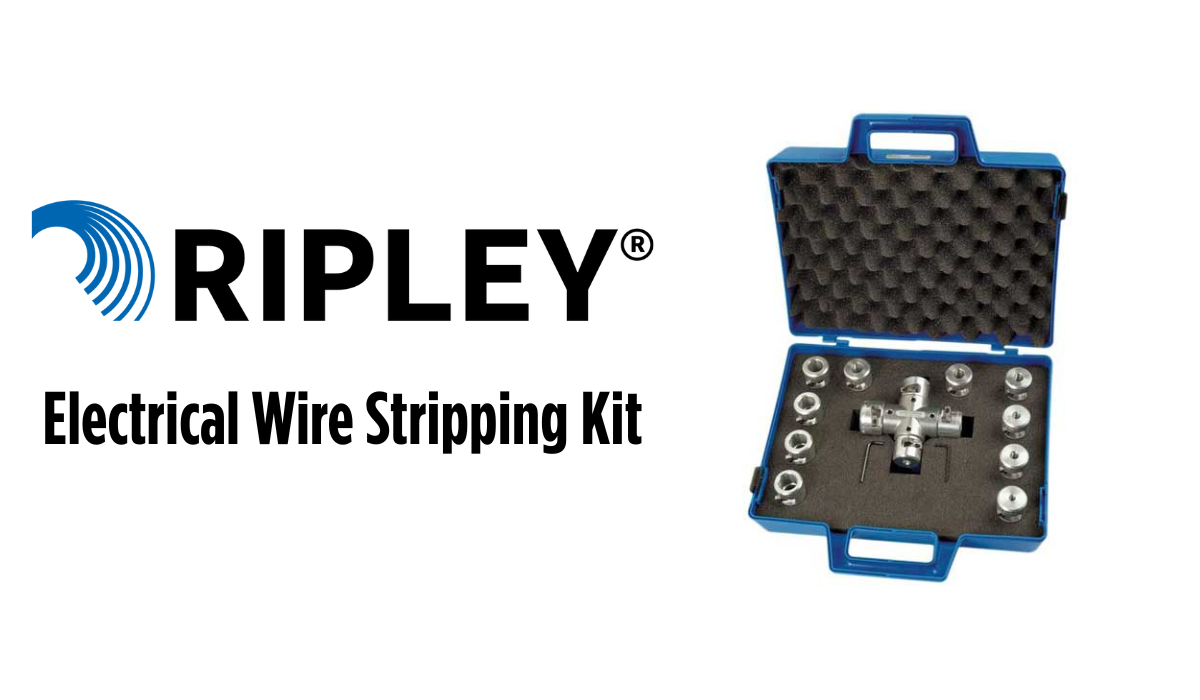

Ripley Electrical Wire Cable Stripping Kit

Ripley Electrical Wire Cable Stripping Kit

The Ripley Electrical Stripping Kit offers a versatile all-in-one square‑cut bushing solution engineered for stripping a broad range of cable sizes — from 6 AWG up through 500 kcmil. The The MV HV Cable Preparation Tool Kit is designed with professional-grade components and a rugged hard‑plastic case, it delivers quick cable end preparation with precision and ease.

Kits are available with your choice of:

• A manual 4×4 tool – ideal for field stripping without power

• A WS 68 SNAP power-driven tool – perfect for high-efficiency stripping

This all-in-one kit supports conductor sizes from 6 AWG up to 500 kcmil, with optional bushing expansions available separately for 600–750 kcmil conductors.

Stripper Kit Key Benefits

• Covers a broad range of cable diameters and conductor types

• Durable field-ready case for easy transport and protection

• Choose manual, power, or combo kits to match your workflow

• Expandable – additional bushings sold separately for larger sizes

Comparison Chart

Model	Part Ref	Stripping Application	Conductor Type	Kit Contents
THHN Cu Manual Kit	34695	Manual	THHN Cu	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper
RHW / RHH / USE Cu Manual Kit	34785	Manual	RHW / RHH / USE Cu	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper
XHHW Cu Manual Kit	34910	Manual	XHHW Cu	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper
THHN / XHHW / XHHN Al Manual Kit	34998	Manual	THHN / XHHW / XHHN Al	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper
RHW / RHH / USE Cu Power-Driven Kit	38684	Power-Driven	RHW / RHH / USE Cu	View Kit Contents WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
THHN Cu Power-Driven Kit	38685	Power-Driven	THHN Cu	View Kit Contents WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
XHHW Cu Power-Driven Kit	38686	Power-Driven	XHHW Cu	View Kit Contents WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
THHN / XHHW / XHHN Al Power-Driven Kit	38687	Power-Driven	THHN / XHHW / XHHN Al	View Kit Contents WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
RHW / RHH / USE Cu Manual & Power-Driven Kit	42564	Manual + Power-Driven	RHW / RHH / USE Cu	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
THHN Cu Manual & Power-Driven Kit	42567	Manual + Power-Driven	THHN Cu	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
XHHW Cu Manual & Power-Driven Kit	42569	Manual + Power-Driven	XHHW Cu	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar
THHN / XHHW / XHHN Al Manual & Power-Driven Kit	42574	Manual + Power-Driven	THHN / XHHW / XHHN Al	View Kit Contents 4×4® Plus 4-Bushing 600V Cable End Stripper WS 68 SNAP Power-Driven 600V Cable End Stripper with Quick-Connect Collar



---

Cable Preparation Jointing Termination | MV HV Cable Tools | 600V 11kV 33kV 66kV 132kV

---

Why Choose Ripley Tools?

Ripley Tools provide precision engineered, ergonomic design and rugged performance for use on underground power cables and overhead line conductors. The Ripley Cable Preparation Kits continue that legacy, offering Cable Jointers a trusted, high-quality tooling solution for preparing LV MV HV cables quickly, safely and accurately.

---

THORNE & DERRICK are Specialist Distributors of LV HV Cable Jointing, Earthing, Substation & Electrical Eqpt up to 66kV – this covers the most extensive range of Ex Stock Innovation Tooling to facilitate safe and reliable preparation, termination and installation of cables from market-leading brands including Klauke, Hivotec, Alroc, Nexans and Cembre.

Our Cable Tools enable the Jointing, Termination, Spiking & Preparation of LV MV HV Power, Fibre Optic, Umbilicals and Electric Cables – the most extensive ranges of Hydraulic & Battery-Operated tools for cutting and crimping all types of armoured and unarmoured cables with XLPE, EPR & PILC insulation.
