Ripley UA01-7085 Cable Jointer’s Kit | MV HV Cable Preparation Tool Set

Ripley UA01-7085

Cable Jointer’s Kit | Complete MV HV Cable Preparation Tool Set

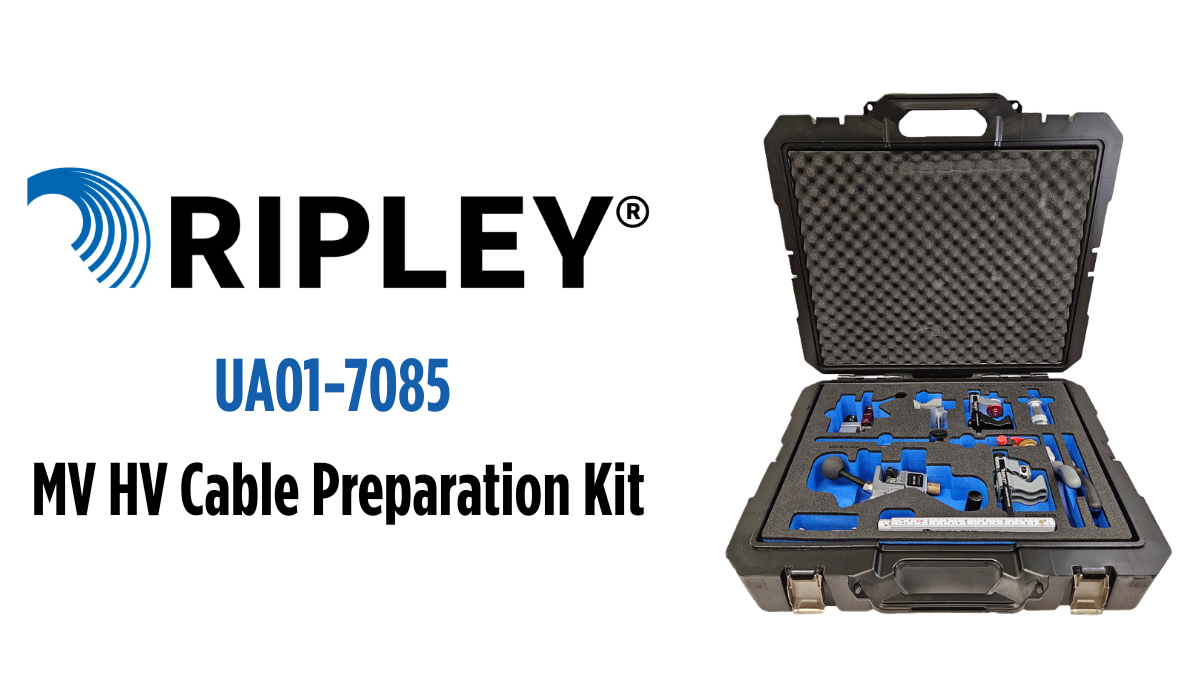

The Ripley UA01-7085 Cable Jointer’s Kit is a complete MV HV cable preparation tool kit designed for professional cable jointers working on medium and high voltage power cables.

Developed in collaboration with certified trainers for medium voltage cable preparation classes, the UA01-7085 kit is suitable for preparing MV/HV cables with an outer diameter from 10mm to 60mm. The kit provides the specialist tools required for outer jacket stripping, jacket peeling, semi-con scoring, semi-con shaving, insulation stripping and insulation chamfering.

Manufactured by Ripley Tools, the UA01-7085 Cable Jointer’s Kit helps improve cable preparation accuracy, tool organisation and on-site safety by reducing the need to rely on traditional knives during MV HV cable jointing and termination work.

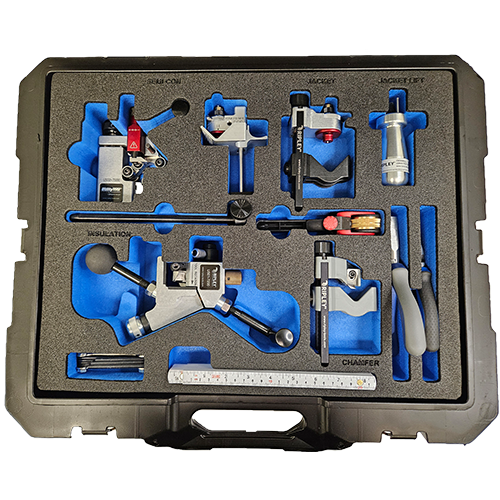

The complete kit is supplied in a rugged carrying case with custom laser-cut foam inserts, helping protect the tools during transport and keeping every item organised and easy to access on site.

Ripley UA01-7085

Key Features & Benefits

The Ripley UA01-7085 kit provides cable jointers with a complete set of professional-grade tools for preparing MV/HV cables safely, accurately and consistently.

The rugged carrying case keeps tools protected during transport, while the custom laser-cut foam insert helps prevent damage and makes it easy to identify missing tools before and after site work.

The kit includes Ripley’s specialist underground cable preparation tools including the US15, US02, SCS, US01, US10 and US14, covering key stages of medium voltage cable preparation from sheath removal through to insulation chamfering.

The included jacket lifting tool is designed to assist with peeling tough outer jackets over concentric neutrals, helping reduce hand injuries and improving safety during cable preparation.

By reducing the need for traditional knives, the UA01-7085 supports safer working practices and helps minimise the risk of cuts or lacerations during cable jointing and terminating operations.

MV HV Cable Preparation Tool Kit

Ripley UA01-7085 Kit Contents

	Ripley US15-7010 PRO Large Format Cable Slitter The US15-7010 is a large format cable slitter with metric scale, used for end and mid-span cable jacket cutting. Suitable for cable outer diameters from 10mm to 60mm for end stripping and up to 50mm for mid-span applications.

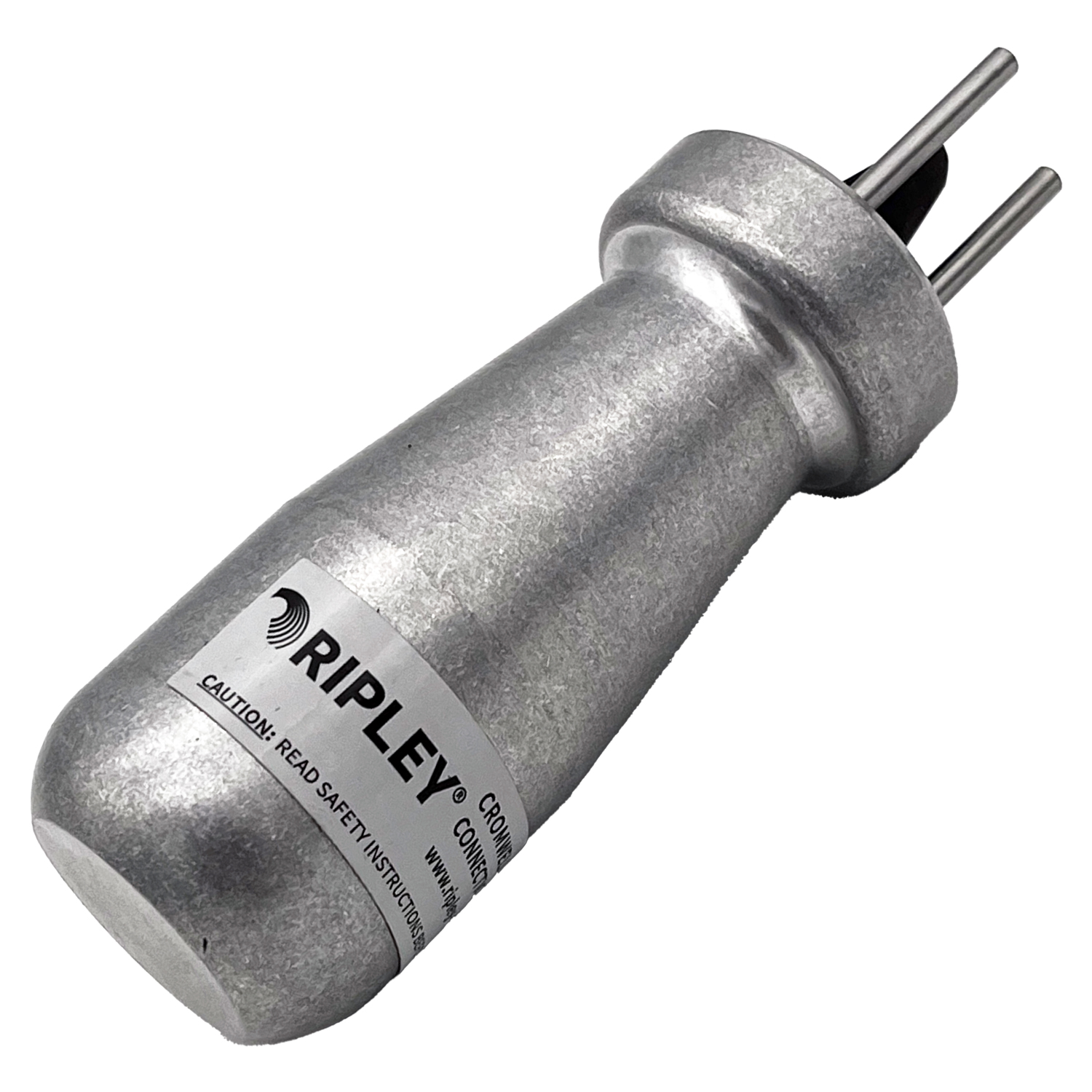

Ripley US15-7020 Jacket Lifting Tool The US15-7020 jacket lifting tool assists with lifting and peeling tough outer cable jackets, helping improve safety when working over sharp concentric neutrals and reducing reliance on knives.
	Ripley US02-7005 SemiCon Shaving Tool The Ripley US02-7005 is a semi-con shaving tool for preparing medium voltage cables. It is designed for precise bonded semi-con removal on cables with an outer diameter range from 12.7mm to 63.5mm.
Ripley 43650 SCS V2 Semi-Con Scorer The Ripley SCS V2 semi-con scorer is used to score and remove easy-strip semi-con screens from MV HV power cables. The tool is suitable for cable outer diameters from 8mm to 51mm.
	Ripley US01-7205 Adjustable Cable Stripper with Stop Bar The US01-7205 adjustable cable stripper is designed for controlled cable stripping on MV HV power cables. The stop bar supports repeatable, accurate stripping lengths and is suitable for cable outer diameters from 12.7mm to 63.5mm.
Ripley US10-7000 Insulation Chamfering Tool The US10-7000 cable insulation chamfering tool is used to chamfer cable insulation during the preparation of medium voltage power cables for joints, terminations and separable connectors. Suitable for 12.7mm to 60mm OD over insulation/semi-con.
	Ripley US14-7000 Ratcheting Outer Sheath Cable Slitter The US14-7000 ratcheting outer sheath cable slitter is designed for outer sheath removal on cables greater than 25mm outer diameter. It supports controlled sheath cutting as part of MV HV cable preparation.
Ripley UA04-7000 7” Serrated Flat-Nose Pliers The UA04-7000 serrated flat-nose pliers assist with gripping and peeling cable layers during jointing and termination preparation, providing additional control when removing cable jackets and semi-con screens.

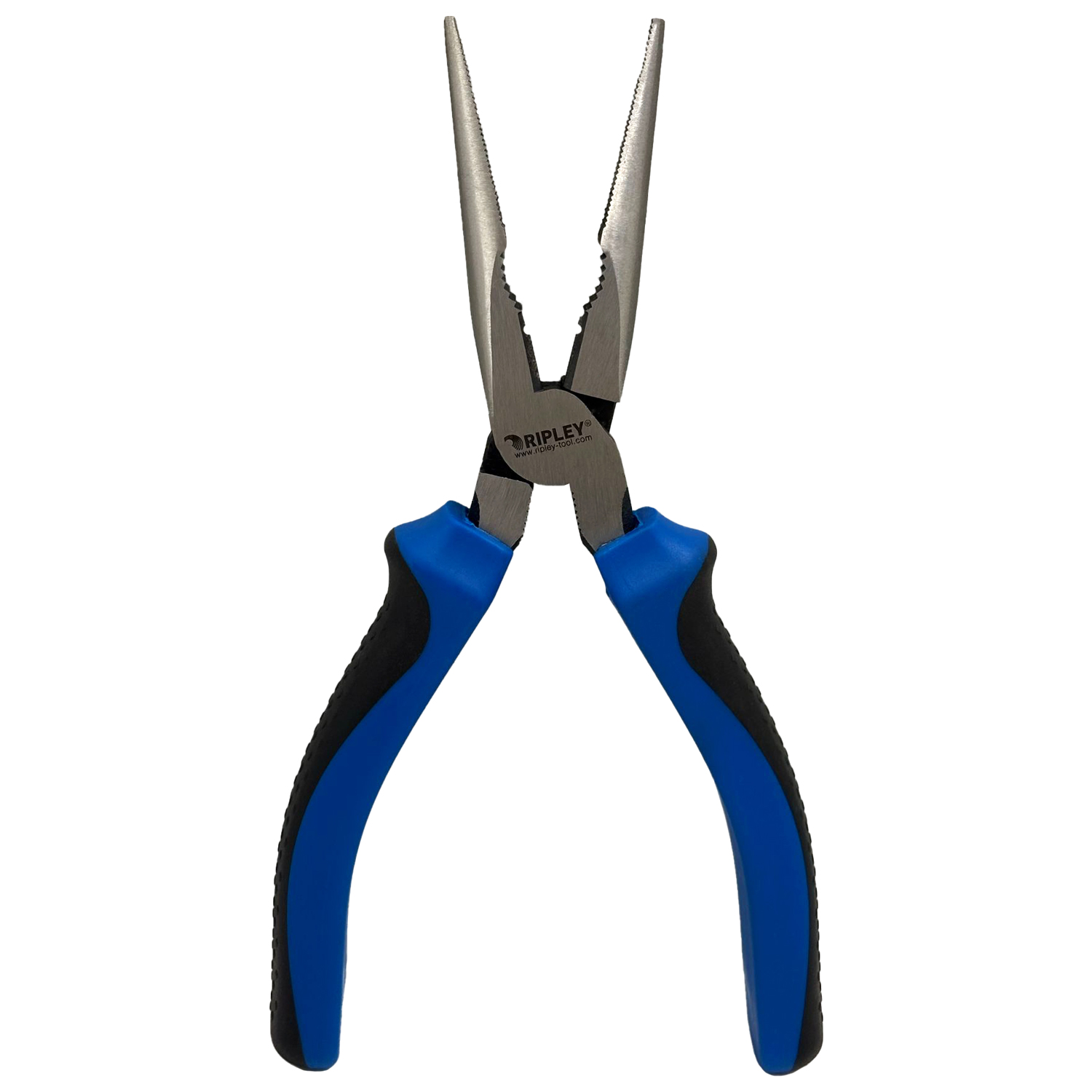

	Ripley MA04-7301 6” Needle-Nose Pliers The MA04-7301 needle-nose pliers provide additional handling and gripping control during cable preparation, helping cable jointers complete detailed preparation tasks accurately.

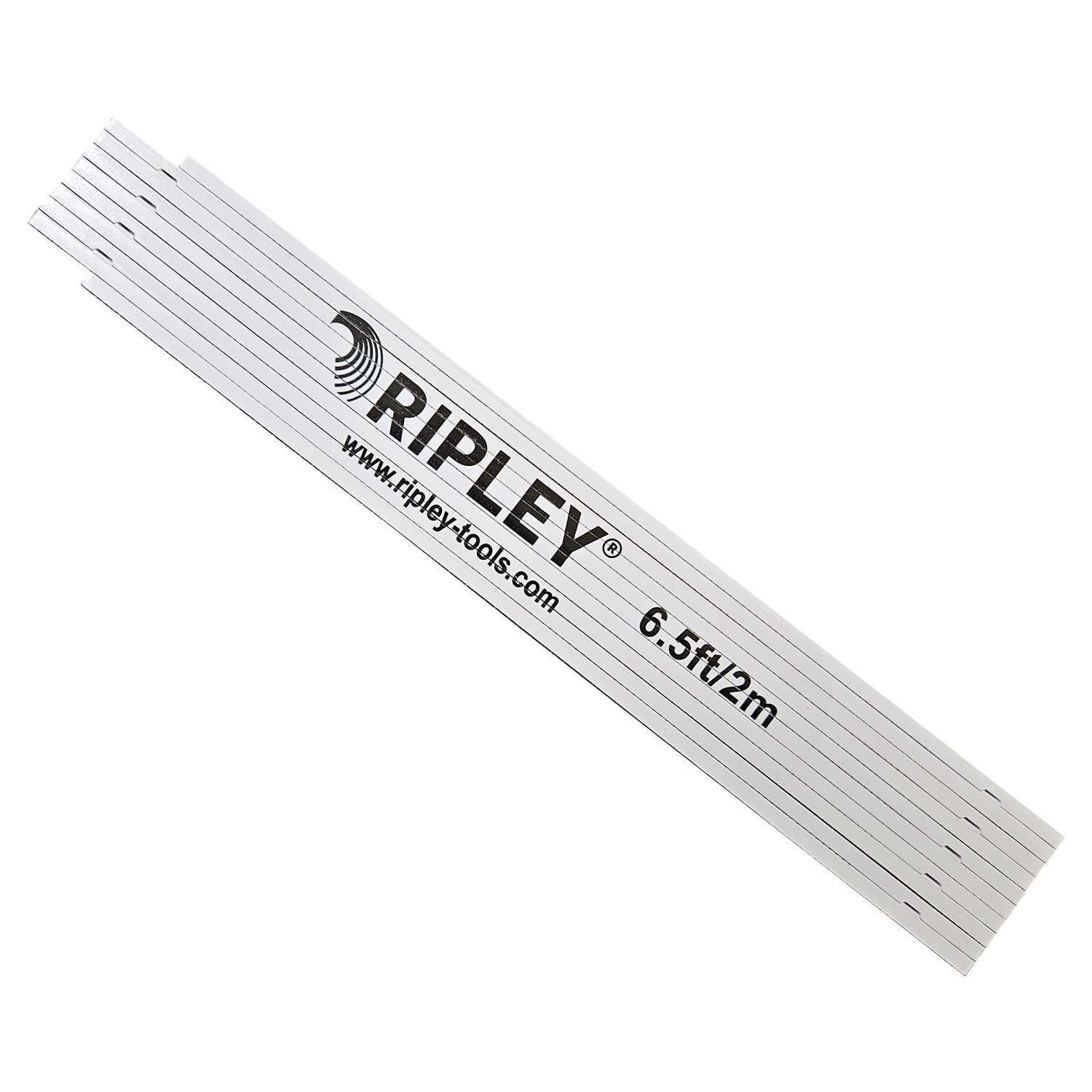

Ripley UA01-7201 ABS Folding Ruler The UA01-7201 ABS folding ruler supports accurate measurement during MV HV cable preparation, helping ensure correct stripping, scoring and chamfering dimensions before jointing or terminating.

Ripley UA01-7085 Included Tools

Why Choose Ripley Tools?

Ripley Tools provide precision engineered cable preparation tools for use on underground power cables, overhead line conductors and medium/high voltage cable systems. The Ripley UA01-7085 Cable Jointer’s Kit brings together key MV HV preparation tools in one organised case, helping cable jointers prepare cables safely, accurately and efficiently.

From outer jacket removal and semi-con scoring to insulation stripping and chamfering, Ripley cable preparation tools support reliable installation of cable joints, cable terminations and separable connectors across LV MV HV power cable networks.

THORNE & DERRICK is a Specialist Distributor of LV HV Cable Jointing, Earthing, Substation & Electrical Equipment up to 66kV — this includes a comprehensive range of professional cable preparation tools for the safe and reliable jointing, terminating and installation of power cables.

Our Cable Tools range supports the preparation, jointing, termination, cutting, crimping and installation of LV MV HV power cables, fibre optic cables, umbilicals and specialist electrical cables. We supply market-leading cable tooling brands including Ripley Tools, Klauke, Alroc, Nexans and Cembre.

Data Sheets

• Ripley UA01-7085 Jointers Kit – Data Sheet
  Download
