Type 11 Trailing Cable – 640 / 1100 Volt Mining Cables

Type 11 Mining Cable

MIning Cables

Type 11 Trailing Cable

Type 11 Trailing Cable BS6708 Description: Flexible tinned annealed copper (TAC) conductors, MEPR insulated, 3 copper/nylon screened power cores plus 1 copper/nylon screened pilot core, laid up around a PCP centre, sheathed overall with a heavy duty flame retardant elastomeric compound.

Cable Voltage 640 / 1100 Volt.

BCS 188 : 1978 refers.

➡ See complete range of flexible and trailing Mining Cables

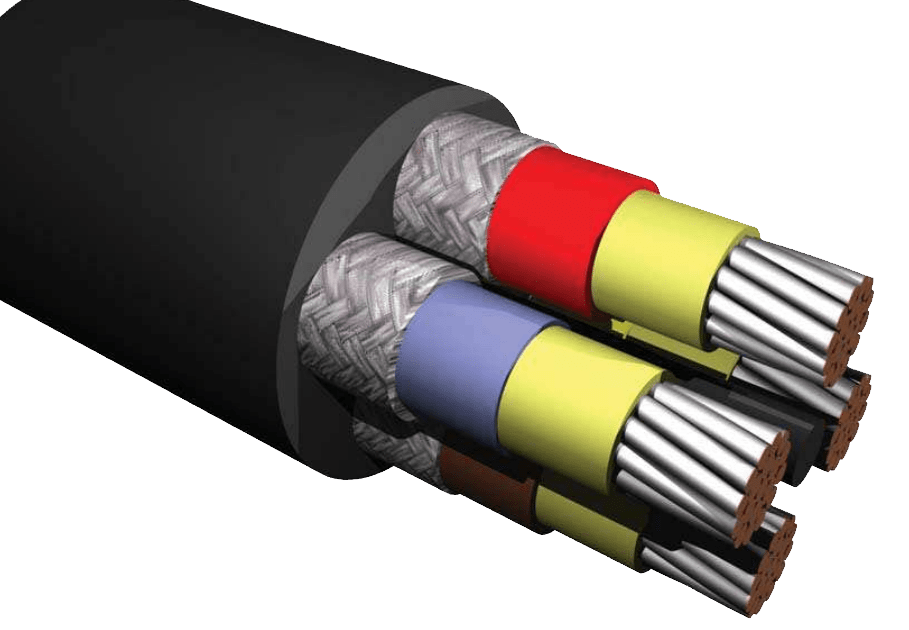

mining Cable Specification

  1. Phase conductor – (3 off) TAC flex conductors
  2. Phase insulation – Extruded MEPR yellow
  3. Phase identification – Proofed tape – red, yellow, brown
  4. Phase core screen – Composite copper/nylon braid
  5. Filler – PCP rubber centre
  6. Pilot conductor – (1 off) TAC flex conductor
  7. Pilot insulation – Extruded MEPR yellow
  8. Pilot identification – Taped – blue
  9. Pilot screen – Composite copper/nylon braid
  10. Lay up – 3 power cores + 1 pilot core laid up around an elastomeric centre
  11. Overall sheath – Extruded heavy duty PCP black

Type 11 Trailing Cable
