Type 62, 63 & 64 Trailing Cable

Type 62, 63 & 64 Trailing Cable BS6708 Description: Flexible tinned annealed copper (TAC) conductors, MEPR insulated, copper/nylon screened power cores, laid up around a PCP centre where applicable, elastomeric bedding, galvanised steel wire armoured and sheathed overall with a heavy duty flame retardant elastomeric compound.

Cable Voltage 640 / 1100 Volt.

BCS 504 refers.

➡ See complete range of flexible and trailing Mining Cables

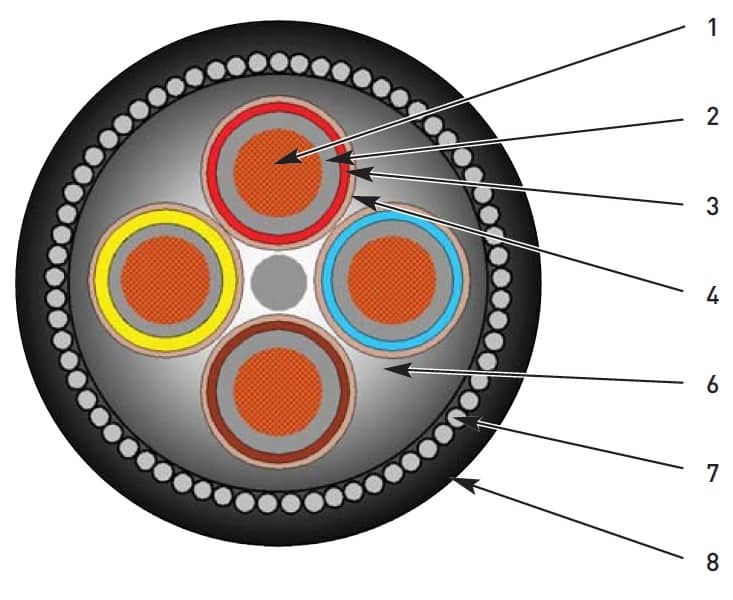

mining Cable Specification

  1. Core conductor – 2, 3, or 4 TAC flex conductors
  2. Core insulation – Extruded MEPR yellow
  3. Core identification – Type 62 – brown and blue
    Type 63 – red, brown, blue
    Type 64 – red, yellow, brown and blue
  4. Core screen – Composite copper/nylon braid
  5. Lay up – Type 64 laid around an elastomeric centre
  6. Bedding sheath – Extruded PCP black
  7. Pliable armour – Galvanised steel wires
  8. Overall sheath – Extruded heavy duty PCP black

Type 62, 63 & 64 Trailing Cable BS6708
