The US10 tool provides a chamfer to the insulation on primary power cables as part of the cable preparation for elbow installation, cable splices, and terminations.

The innovative US10 Cable Insulation Chamfering Tool utilises a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminium frame provides a stable and precise clamping platform in any space.

The tool produces a precise chamfer on all XLPE insulated cables, and most EPR insulated cables with insulation diameter range 0.50” – 2.36” (12.7 – 60.0 mm).

US10 cable tools manufactured by Ripley are used by MV-HV jointers to remove the insulation to prepare the cable ready for the installation of joints, terminations or connectors.

See our complete range of Jointing Tools for the preparation and stripping of LV MV HV cable prior to the installation of joints, terminations and connectors.

Ripley US10

Features

Easily adjusts to suit XLPE & EPR insulation materials on 0.5″ to 2.36″ (12.7 mm to 60 mm) cable diameters

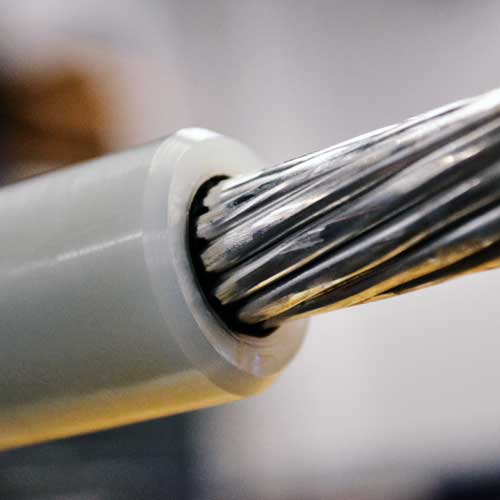

30 degree (US10-7000) or 45 degree (US10-7001) angle bevel models perform with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
Integrated tool stop

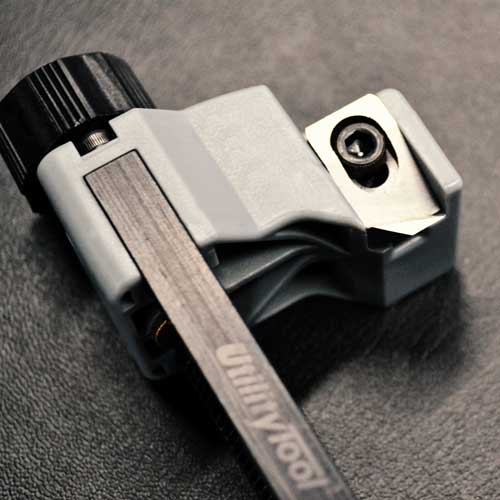

Equipped with safe, recessed blade to prevent potential injury & blade damage
Machined, ground and heat treated tool steel blade
Compact form for tight work spaces. 200 mm dia max
Glovable EASY USE WITH GLOVES

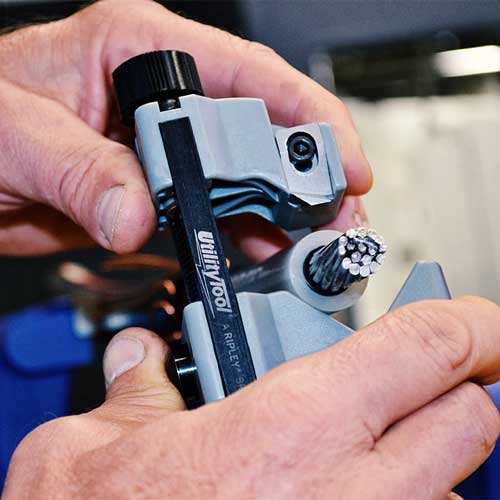

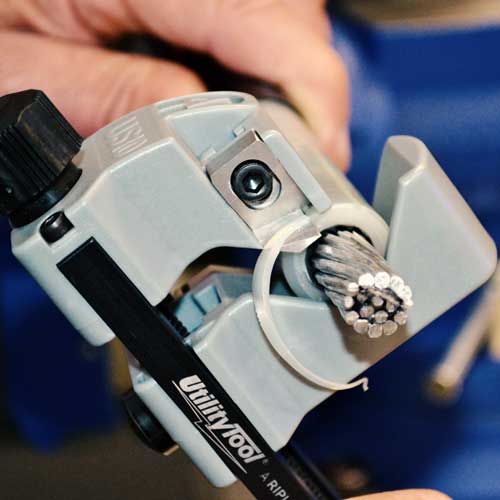

Easily adjusts to support cable with diameters from 0.55″ to 2.36″	Chamfer depth is adjustable to accommodate various insulations	Recessed blade assures safety & is easily replaced.	Unique, low-friction V-jaw provides precise & accurate clamping.

US10 Series Comparison

Model	Ripley Part Number	Ripley Replacement Blade Part Number	O.D Over Insulation / Semi-con	Chamfer Angle

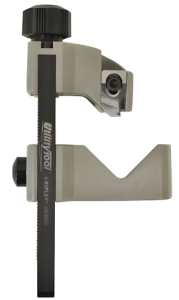

30 Degree Chamfer Tool	US10-7000	US10-7500	0.5″ – 2.36″ (12.7 – 60 mm)	30°
45 Degree Chamfer Tool	US10-7001	US10-7501	0.5″ – 2.36″ (12.7 – 60 mm)	40º

Cable Compatibility

Cable Compatibility – Primary Distribution Underground
Colour – Grey
Cable Access – End
Insulation Materials – XLPE, EPR
Min Voltage – 15kV
Max Voltage – 35kV

Video: Ripley Stripping Tools Improve Safety And Reliability

Improve reliability and safety at the same time; take the knife out of your hand and put the Ripley tools in your hand. “What I like about this tool is that it’s very easy to see your blade when you’re doing your chamfer in the field.”
