Prysmian Multicleats – 3 Simple Steps To Cable Cleat Installation

Published 27 Feb 2017

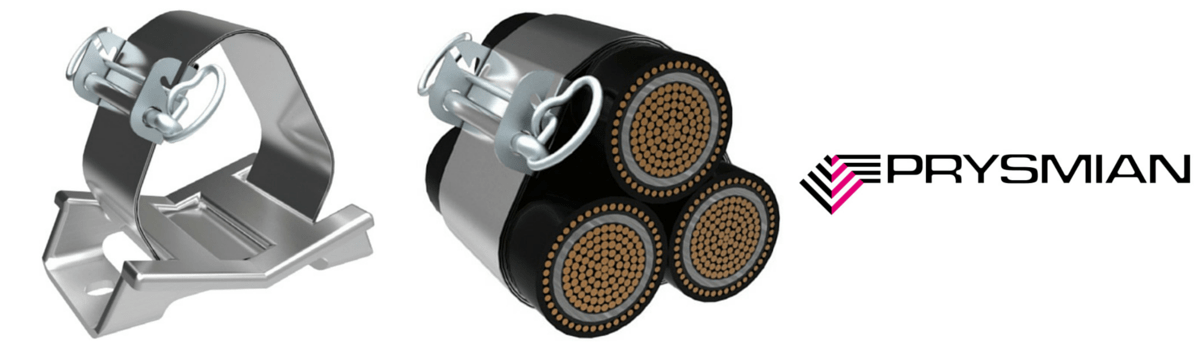

Prysmian BICON Multicleats – Cable Cleats

Prysmian BICON Multicleats – Cable Cleats

  • by Chris Dodds T&D - estimated reading time 5 minutes

Cleats

T&D are Prysmian cable cleats stockists and distributors committed to supporting the correct installation of all BICON brand products – the following short post outlines the recommended installation procedure for Prysmian Multicleats which are specified to provide short-circuit containment of LV, MV and HV power cables.

Prysmian Multistrap is a stainless steel cable strap complete with a tensioning clip, securing pin and winding key – can be used for single, bundled or trefoil cleats including 11kV/33kV single core high voltage substation cables.

BICON. A Prysmian brand.

BICON. A Prysmian brand.

Multistraps are used as an intermediate cable restraint between Multicleats – positioned centrally between a pair of Multicleats to provide additional protection to medium/high voltage power cables in the event of a short-circuit.

The Multicleat cable cleats are commonly used to support and clamp 11kV/33kV power cables in industrial installations, hazardous areas and high voltage substations.

Aluminium cable cleats are also available for cleating cables onto containment in LV-HV substations and electrical building services where corrosion exposure levels are lower.

Multicleats

1. Fasten Prysmian BICON Multicleat base to cable support with M10 fixings. Loop Prysmian Multistrap through cable cleat base and around cables. Standard Duty Multicleats = 2 loops. Heavy Duty Multicleats = 3 loops.

2. Pull slack Prysmian Multistrap into outer loop. Insert split pin from right hand of Multicleat around outer layer of Multistrap about 10mm from end. Push plastic shear torque adaptor fully onto the end of the split pin and attach 13mm socket wrench. To tension the Prysmian Multistrap around the cables, rotating key anti-clockwise with the socket wrench until the adaptor shears.

3. Remove the shear torque adaptor and wrench. Swing the key over and engage in slots in clip.

The Prysmian Multicleat and Multistrap is correctly installed – compatible with most cable containment types including cable ladder and tray systems.

Prysmian BICON Multicleat Installation Steps

Prysmian BICON Multicleat Installation Steps

For further Multicleat & Multistrap technical specification, selection details and information see the following Slideshare.

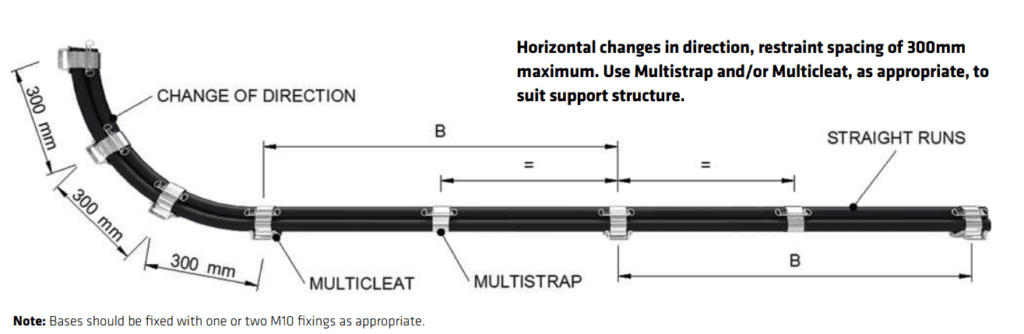

To ensure sufficient cable support the Prysmian Multistrap MUST be used at the mid-point between Multicleats on all horizontal or vertical straight cable runs – here the Multicleats are shown cleating single core 33kV cables in trefoil arrangement however the strap-type cable cleats are suitable for single, multiple or bundled cable configurations.

Contact Thorne & Derrick for technical support or specification advice to ensure the correct cable cleat / cable strap arrangement according to the fault rating, installation application and environmental location.
