Renewable Energy Energisations at Medium Voltage with 3M Electrical
Published 30 Jul 2024
MV Power
Reliable Solutions for Renewable Electrical System Installations
Since 1985, Thorne & Derrick have been Authorised Distributors for the 3M Electrical range of Low, Medium & High Voltage Cable Accessories for the insulation, connection, repair and provision of reliable electrical power up to 66kV utilising Cold Shrink, heat shrink, Scotch Tape and Scotchcast Resin technologies.
For more than 30 years, 3M Electrical has been committed to delivering comprehensive solutions tailored to the needs of challenging renewable energy projects, including wind farms, solar farms, and battery energy storage systems.
3M understands the pivotal role that well-designed and dependable electrical installations play in maximising the benefits of renewable energy sources. As energy demands increase and circuits operate at high capacities, minimising downtime becomes essential for maintaining efficiency and productivity.
To address these challenges, 3M offers a comprehensive range of easy-to-install and reliable electrical solutions across Low, Medium, and High Voltage applications. Their products are designed to withstand the rigours of modern energy systems while ensuring optimal performance.
Together, we can collaborate with you to provide strong technical support, training and customised product kits to help you keep your system running.

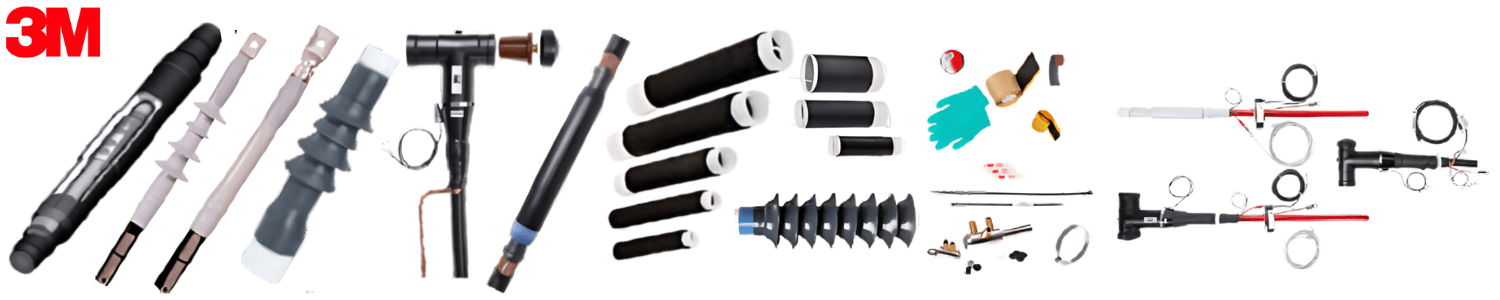

Power Cable Accessories
Easy-to-install, reliable solutions
 3M™ Cold Shrink Medium Voltage splice kit QS200 12-36 kV |
Designed from the ground up, these medium voltage cable splices are one of the pinnacles of 3M’s performance, quality and reliability these kits are used with 1-core and 3-core cables, armoured or non armoured. No special cable jointing tools, torches or other heat sources needed. |
| Designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and ease of installation. Electrical field control device pre-installed in the insulation body help to avoid complexity during the installation. The specific properties of the insulating silicon body allow to terminate wide range of cable cross sections.
3M™ MV termination kits are available both with and without mechanical lugs included. 3M™ QT-III Termination is a further development of the QT-II. It has similar functionality but offers additional advantages for the end user. The main advantages of the QT-III Termination are that it contain fewer individual components. This eliminates time-consuming installation steps, which leads to fewer chances of error. |
 3M™ Cold Shrink Medium Voltage Termination QT-II  3M™ Cold Shrink QT-III Termination Kit 12-36 kV |
 3M™ Separable Connector Kit 12-36 kV |
The Separable Connector is used to establish the connection between the cable and switchgear, transformer or other equipment. Products are moulded using high quality EPDM and sold in packs of 3 phases and they come with stress control element, earthing set, mechanical cable lug and assembly instructions. The straight, elbow and T-plug connectors cover a wide range of cable cross sections. All kits are fully type tested to Cenelec HD 629.1 (DIN VDE 0278). |
| 3M™ Cold Shrink Connector Insulators are useful as primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V, both indoor and outdoor. They are often good in providing physical protection and environmental sealing for communication and other non-electrical applications, including sheath repairs. Operating temperature range is -40°C to 90°C. In applications where the product is continuously exposed to UV radiation it is good to overwrap with e.g. Scotch® Super 33+™ Vinyl Electrical Tape or Scotch® Self-Fusing Silicone Rubber Electrical Tape 70. |
 3M™ Cold Shrink Connector Insulators 1000 V |
 3M™ Cold Shrink High Voltage Splice kit QS3000 72.5 kV |
3M™ Cold Shrink High Voltage Splice QS3000 Series Kits are designed for inline splicing up to 72.5 kV Umax Voltage class, 1-core XLPE Crossed Linked Polyethylene cables systems with copper wire screen, lead sheath or aluminium sheath according to IEC 60840. |
| 3M™ Cold Shrink High Voltage Termination QTEN Series Kits. 1-core copper wire, lead sheath or aluminium sheath screened cables. The product options cover power cables up to 2500 mm² in size. The QTEN series, is designed for XLPE Crossed Linked Polyethylene cables up to 72.5 kV (U_max) according to IEC 60840. The kit includes silicone Cold Shrink body with integrated silicone rain sheds with a separate Cold Shrink stress control tube. Silicone Cold Shrink tubes are included to seal on cable lug and cable sheath. The creepage current collector is included for a defined earth potential at the end of the rain sheds. |  Cold Shrink High Voltage Termination kit QTEN Series 72.5 kV |
 3M™ Sensored Cable Accessories (SCA) |
3M™ Sensored Cable Accessories (SCA) are Medium voltage cable accessories including accurate current and voltage sensors to support the grid automation. It provides high accuracy voltage, current and phase angle with real time measurements when connected to secondary equipment, like RTUs or protection relays, at the medium voltage secondary substation. Moreover with a capacitive voltage sensor, the accessories provide reliable measurements over a wide temperature range and capable to capture up to the 50th harmonic (2500 Hz), offering a unique way to measure key parameters on the grid for use in prominent use-cases such as Real time monitoring, Fault detection and location, Voltage regulation and volt-var optimisation, Power quality management and Asset health. |
Insulation, Connection and Termination Solutions for Renewable Electrical System Installations
3M™ Locating and Marking System
3M™ Locators and Markers provide a complete system for locating, marking and mapping vital underground assets. From markers that give an exact path and estimated depth of underground utilities, to markers that store information, to utility locators that interface with GPS/GIS field mapping instruments, 3M offers the precision tools needed to manage your assets.
 |
 |
 |
| 3M™ Path Marking Tape | 3M™ EMS and iD Ball Marker | 3M™ Dynatel™ Locator XE Series |
Cable Jacket Repair
 |
 |
| Scotch® Cable Jacket Repair Tape | 3M™ Heat Shrink Tubing HDCW |
Other Supplies
 |
 |
 |
| Vinyl Electrical Tape | Rubber Electrical Tape | 3M™ Scotchflex™ Cable Tie |
Thorne & Derrick are Specialist Distributors to Solar EPC’s & High Voltage Jointing Contractors working on the design, construction and maintenance of UK, European and international projects supplying an extensive range of LV HV Solar Cables, Jointing, Substation & Electrical Eqpt. Based in the UK, we are highly customer responsive and absolutely committed to providing a world-class service.
We stock LV HV Cables, Accessories & Electrical Equipment to enable the construction, maintenance and operation of utility-scale PV installations – our products connect 600V/1500V solar cables into combiner boxes, inverters, transformers and energise switchgear up to 33kV/132kV for high voltage grid connections. Since 1985, we have provided expert technical support and express delivery from extensive UK stocks to world-wide destinations.
