Terminating Wavecon Cable Into Schneider M1 Low Voltage Distribution Boards
Published 15 Jun 2021
Image Courtesy of: Darren Street at D+R Jointing Services Ltd

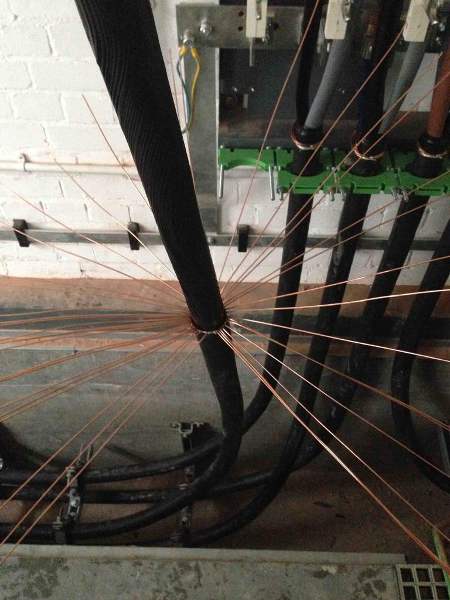

Pictured above is a 300mm² wavecon LV cable which is being terminated onto a Schneider M1 LV board as part of a full substation installation – the install was carried out by two cable jointing/fitting teams.
schneider electric
Schneider Electric, with operations in over 100 countries, leverages its portfolio to make energy safe, reliable, efficient, productive and green.
While global energy demand is set to rise to support growing industrialisation and urbanisation, the scarcity of resources is becoming more pressing. Everyone needs to do more with less.
From its creation in 1836 as a producer of iron and steel, Schneider Electric has transformed itself into the global specialist in energy management.
With available and mature technologies that can save up to 30% of business-as-usual energy consumption, energy efficiency is a key component of this energy challenge.
Thorne & Derrick are distributors of the Schneider Electric range. Contact us for a competitive quote.
