110kV G&W Cable Termination – HPFF High Pressure Fluid Filled

Published 06 Oct 2020

Image Courtesy of: Steve Fielder – HV/EHV Cable Jointer.

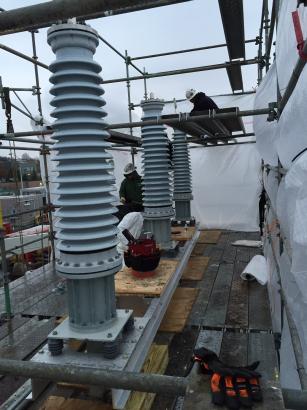

Pictured: 110kV G&W Cable Termination – HPFF High Pressure Fluid Filled

“It’s a 110kV G&W cable termination, the system is high pressure fluid filled and the cables run inside stainless steel pipe from termination to termination,” clarifies Steve.

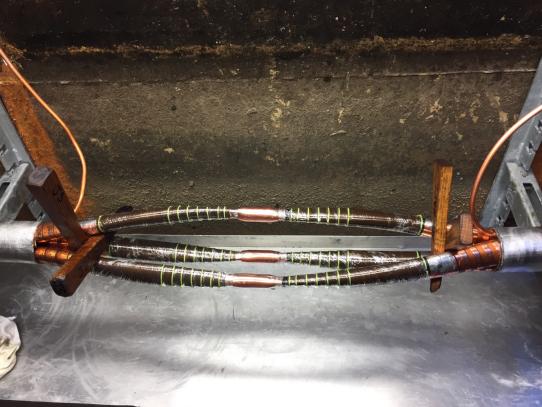

“Usually the terminations go into a trifurcating joint just under or near the terminations, the 3 conductors then travel in a single 8 or 10 inch pipe to the other end and then another trifurcating joint up to the other terminations to complete the system,” adds Douglas Page.

Overview of G&W Cable Accessories

In 1905 G&W introduced the first disconnectable cable terminating device.

Over 100 years later, G&W continues to create technical innovations that have improved performance and reliability. With over 100 years experience, G&W is the name you can trust for quality cable accessories. With sales representation worldwide, G&W has a proven track record for success. G&W cable accessories are designed to accommodate cables from all manufacturers and can be created to accommodate any customer cable system. The optional mechanical shrink feature offers an easier and faster installation while reducing possible damage during installation. G&W also offers installation supervision and installation training, which can be customized to suit the audience.
