33kV Cable Stripping | Bonded Semicon Removal Using Ripley US02

Published 06 Jun 2024

Application | Stripping 33kV Cable BS7870 XLPE AWS Single Core 500sqmm

Using | Ripley US02 Bonded Semicon Screen Removal Tool

Contractor | Direct Jointing & Power Services Ltd

Cable Jointer & Company Director | Daniel Sowden

Direct Jointing & Power Services Ltd | Installing & Maintaining High Voltage Cables & Power Networks up to 33kV

Contact | [email protected] | 07468533057

More Information | US02-7000 Semicon Shaving Tool | Ripley US02 | Cable Tool HV

Direct Jointing & Power Services Ltd

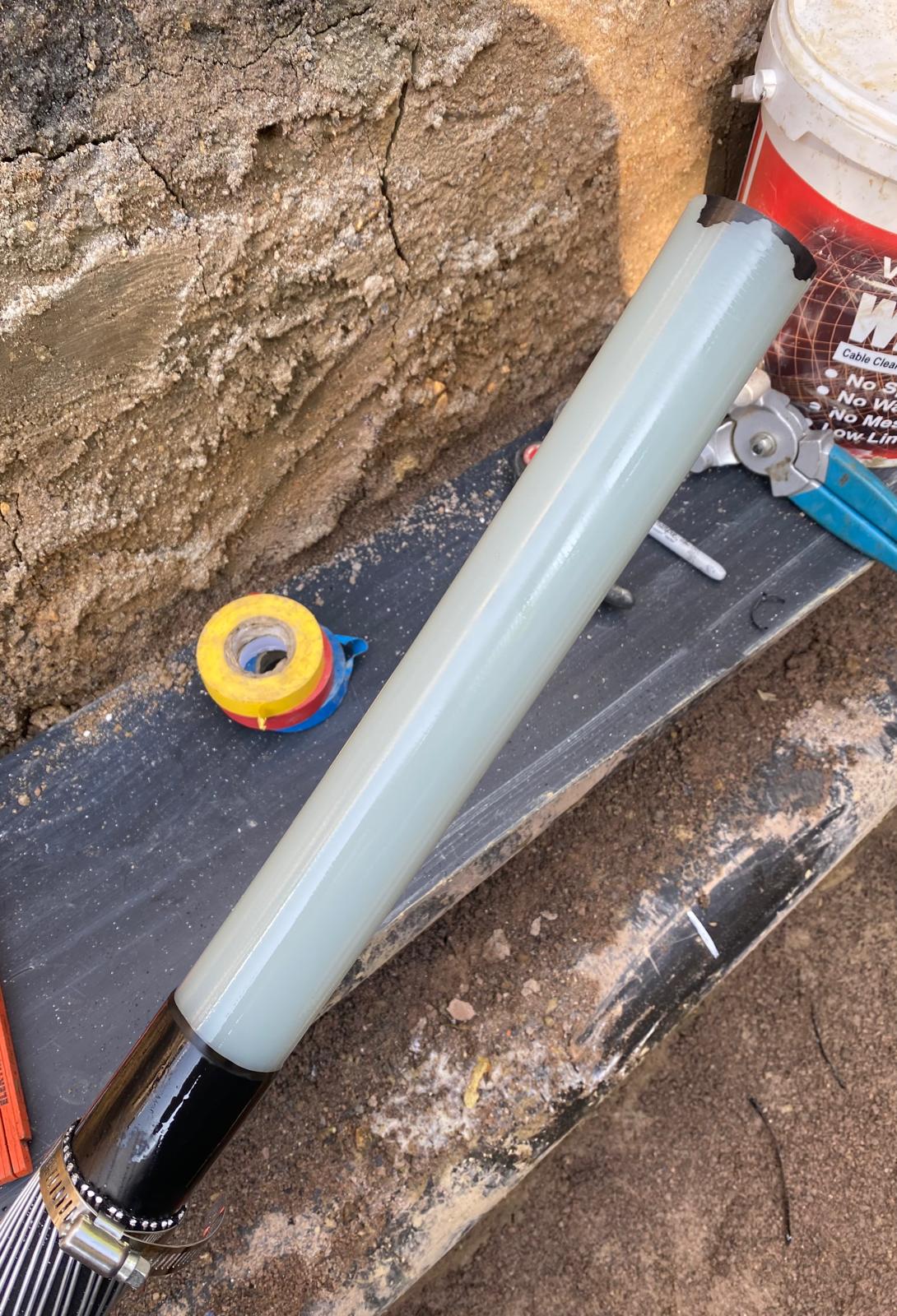

33kV Cable Preparation | Pre-Polish

33kV Cable Preparation | Pre-Polish

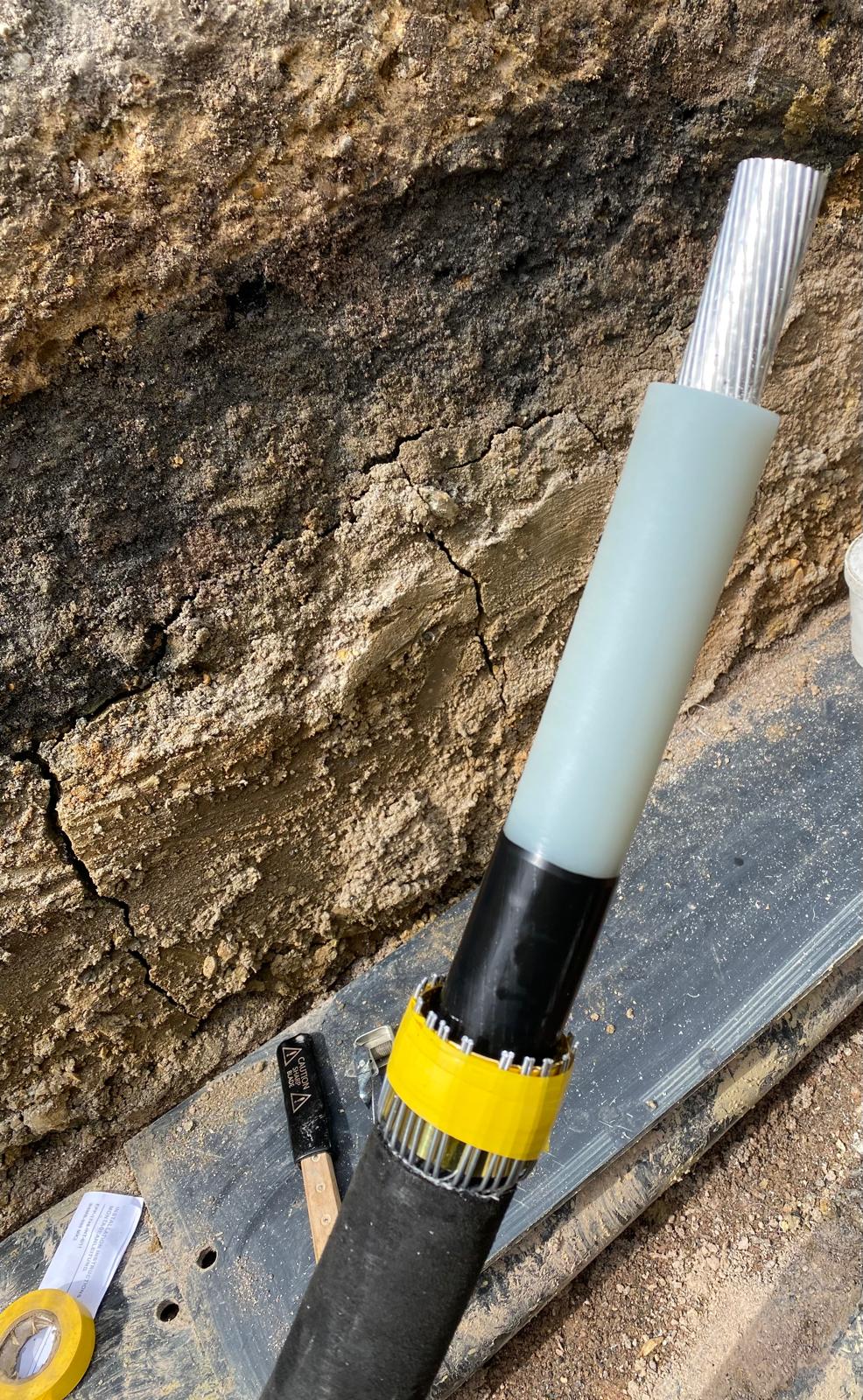

33kV Cable Preparation | Post Polishing

33kV Cable Preparation | Post Polishing

Cable Preparation Tools | Distributed From Stock | Approved Supplier

Cable Preparation Tools | Distributed From Stock | Approved Supplier

Ripley US02-7000

Ripley US02-7000

Semicon Shaver & Stripping Tool manufactured by Ripley Tools quickly and easily removes bonded semi-con from MV & HV power cables without the requirement for lubrication.

The semicon tool has a unique blade shape which preserves the smooth surface on the XLPE insulation of medium voltage cables typically distributing electrical power at 11kV and 33kV voltages – the Ripley US02 tool eliminates the need for deburring or additional surface finishing of the cable insulation. Its optimal stability design securely supports cables with diameters from 18 mm to 60 mm throughout the shaving operation of the cable preparation process, prior to jointing or terminating medium voltage cables.

The US02 tool provides an exceptionally smooth finish and does not require lubricating grease as the integral wheels provide a sustained motion during the cable preparation process – the US02 has four settings on it that adjust the pitch as it winds down the cable and a stop that enables the jointer to provide a square cut to finish off. The settings are 0.5mm, 1mm, 1.5mm and 2mm.

Thorne & Derrick are now Official Distributors for the Vicera range of Cable Jointing Stands – the introduction of this new product range is an excellent extension to our core ranges of Cable Jointing, Pulling Equipment & Preparation Tooling and we look forward to further supporting efficient, easier and more reliable power cable installations.

Thorne & Derrick are now Official Distributors for the Vicera range of Cable Jointing Stands – the introduction of this new product range is an excellent extension to our core ranges of Cable Jointing, Pulling Equipment & Preparation Tooling and we look forward to further supporting efficient, easier and more reliable power cable installations.

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX. Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

T&D hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.
