Ripley US15-7010 PRO | Cable Sheath Jacket Stripping Tool LV HV

Ripley US15 PRO

CABLE SHEATH JACKET STRIPPING TOOL | up to 60mm Diameter

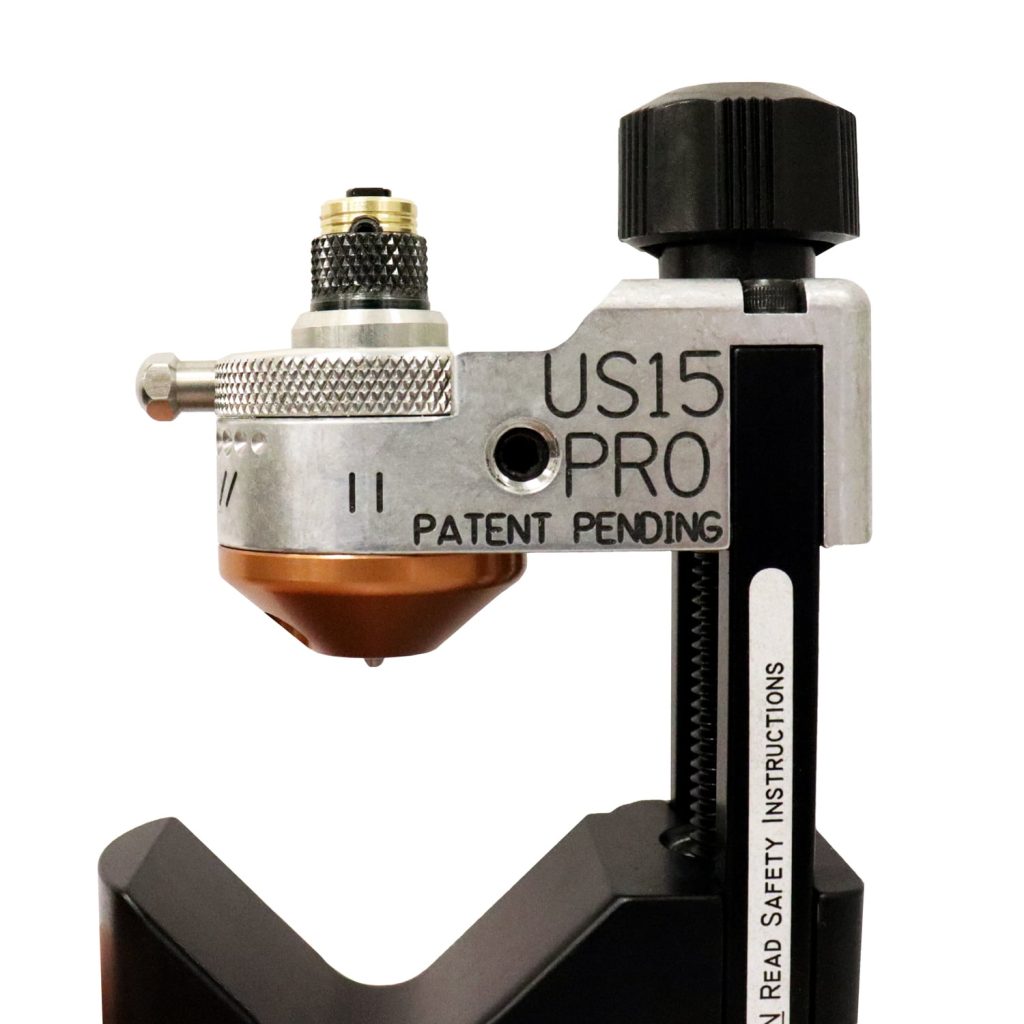

Ripley US15-7010 | PRO Large Format Cable Slitter for Sheath & Jacket Stripping

Professional, Safe & Consistent Stripping of Cable Sheath Jackets from LV MV HV Cables | No Open Blades

US15 PRO Cable Sheath Jacket Stripping Tool manufactured by Ripley Tools is capable of performing slit, ring, and spiral cuts on cable diameters from 10mm to 60mm. Equipped with a high-grade steel blade, the versatile tool provides fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers on LV MV HV (Low | Medium | High Voltage Cables).

The Ripley US15 PRO tool is a heavier duty slitting tool primarily used to assist in the removal of outer sheathing and primary insulation on low and medium voltage power cables. The tool will cut through many forms of insulated material such as PE, XLPE, PVC, EPR, silicon rubber, EPDM, and TGGT. The tool is particularly useful on flexible conductor cables up to 5kV.

The US15 PRO has a micro adjustable blade depth to avoid underlying cable damage. Ring, spiral, and longitudinal cuts can be accurately made by indexing the blade position. The high grade tool steel blade is also capable of slitting lead, Sealpic®, and other thin metallic sheathing.

US15-7000 v US15-PRO

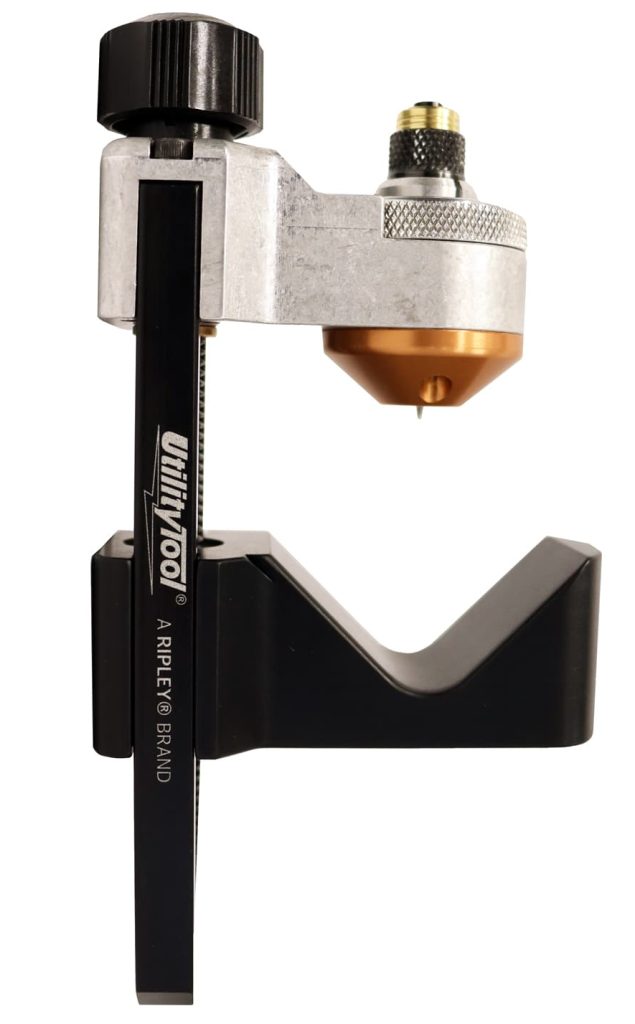

The US15 and US15 PRO Tools manufactured by Ripley are identical both in usage and practical application – the US15 has a moulded plastic v-jaw and is quick release. The US15 PRO is a machined aluminium v jaw and does not feature quick release as this improves rigidity and stability when stripping the cable jacket or sheath from LVMV HV cables.

Cable Tooling Benefits

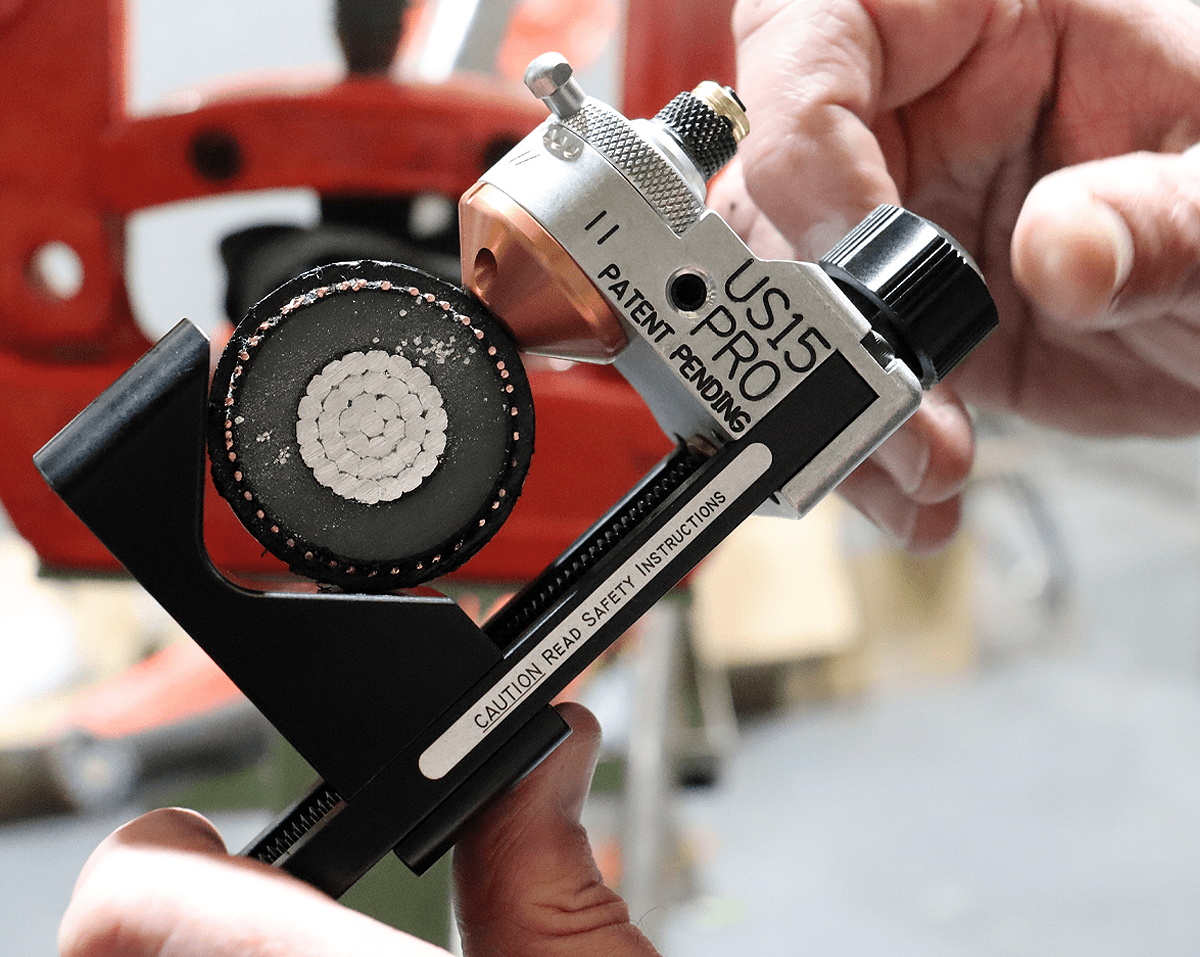

US15 Tool design from Ripley provides a controlled depth, sheath stripping of cable up to 60mm with a single-bladed (Ring & Spiral Cut). The compact design is advantageous to the Jointer for working in compact switchgear compartments and confined space cable preparation applications. No pulling under force for stripping cable sheaths – the US15 Tool provides a more natural and free-flowing turn of cable preparation tool rather than forced exertion by the Jointer improving, safety, ergonomics and finish when preparing MV HV cables prior to Jointing & Termination.

The Ripley range of Cable Jointing Tools improve cable safety and reduce cable damage.

Ripley US15-7010 PRO Stripping Tool Features

• Equipped with safe, recessed blade to prevent potential injury & blade damage
• Compatible with various insulated materials such as PE, XLPE, PVC, EPR, silicon rubber, EPDM and TGGT
• Easily adjust the blade position to perform ring, spiral & longitudinal cuts
• Quickly adjusts to suit hard & soft insulated cables with 0.39″ to 2.36″ (10mm – 60mm) diameter
• Blade depth knob adjusts up to 0.216″ (5.5 mm) in increments of 0.002″ (0.05 mm) & features a convenient inch or metric scale for guaranteed precision
• Replaceable, machined & ground tool steel blade
• Reinforced diameter adjustment jaw is durable & travels on a threaded rod to provide precise stability between the blade & jacket

Some applicable cables: three phase jacketed industrial cable, jacketed medium voltage power cable, Tiger® brand mining cable, 2kv DLO cable, 600v and 2kv oil and gas cable, shielded instrumentation cable, 600v and 2kv flex strand EPDM, 600v flex stand THHN, shielded telephone cable, TGGT wire.

Ripley Cable Tools

CABLE SHEATH JACKET STRIPPING TOOLs

INSTALLATION GUIDE

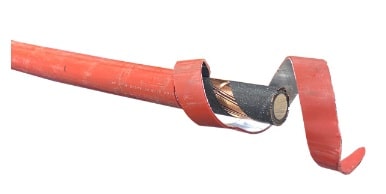

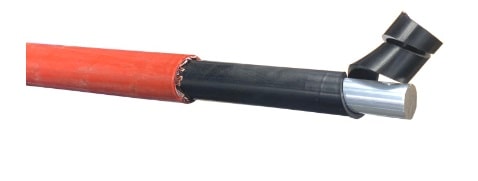

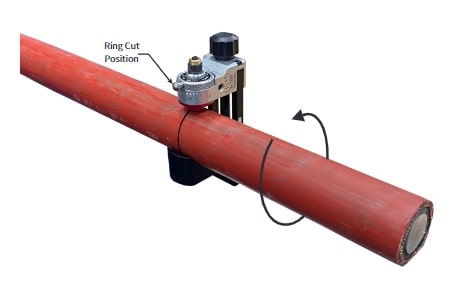

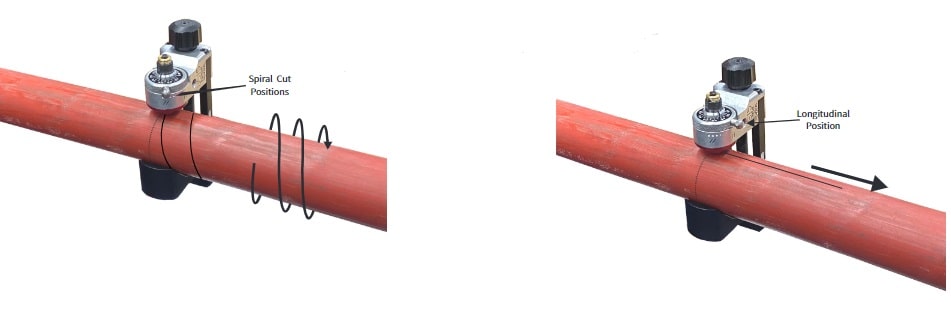

1. Set the blade depth Set an appropriate blade depth to score the jacket or insulation. For jackets with consistent thickness, set the blade depth 75-90% of the thickness. For irregular shape jackets, set the blade depth shy of the thinnest section to avoid cable damage.	2. Ring cut the cable Index the blade carriage to the ring cut position. The positioning knob faces forward. Snug the tool up with the tightening knob. Do not over tighten the tool on the cable. Rock the tool to feel the tension on the cable. Rotate counter clockwise to make a full ring cut.	3. Spiral and Longitudinal Cut Index the tool to one of the spiral or the longitudinal position, as desired. Rotate or pull the tool down the cable to score it.	4. Remove the jacketing	5. Follow the same procedure with the US15 PRO to remove the insulation from the conductor

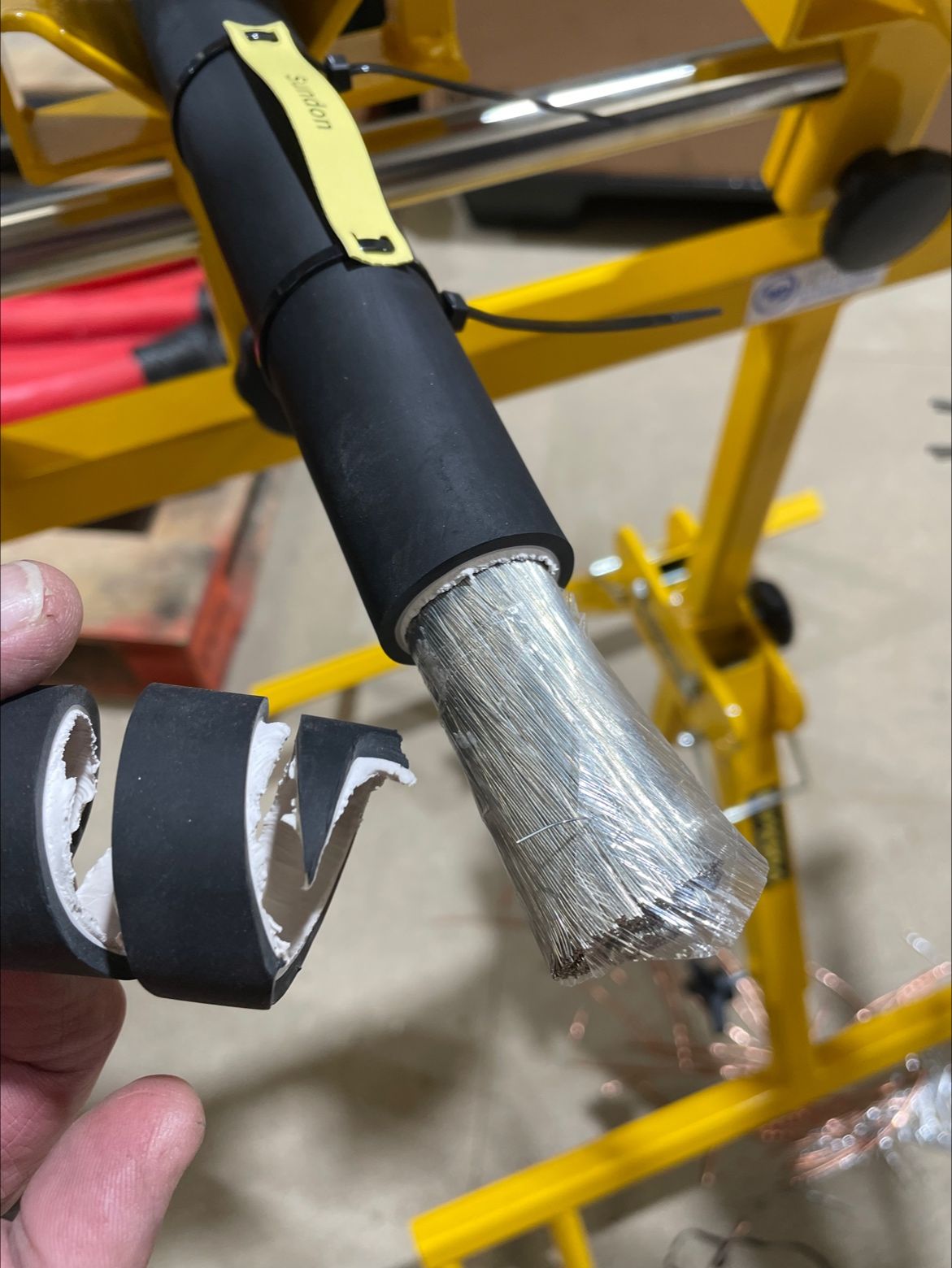

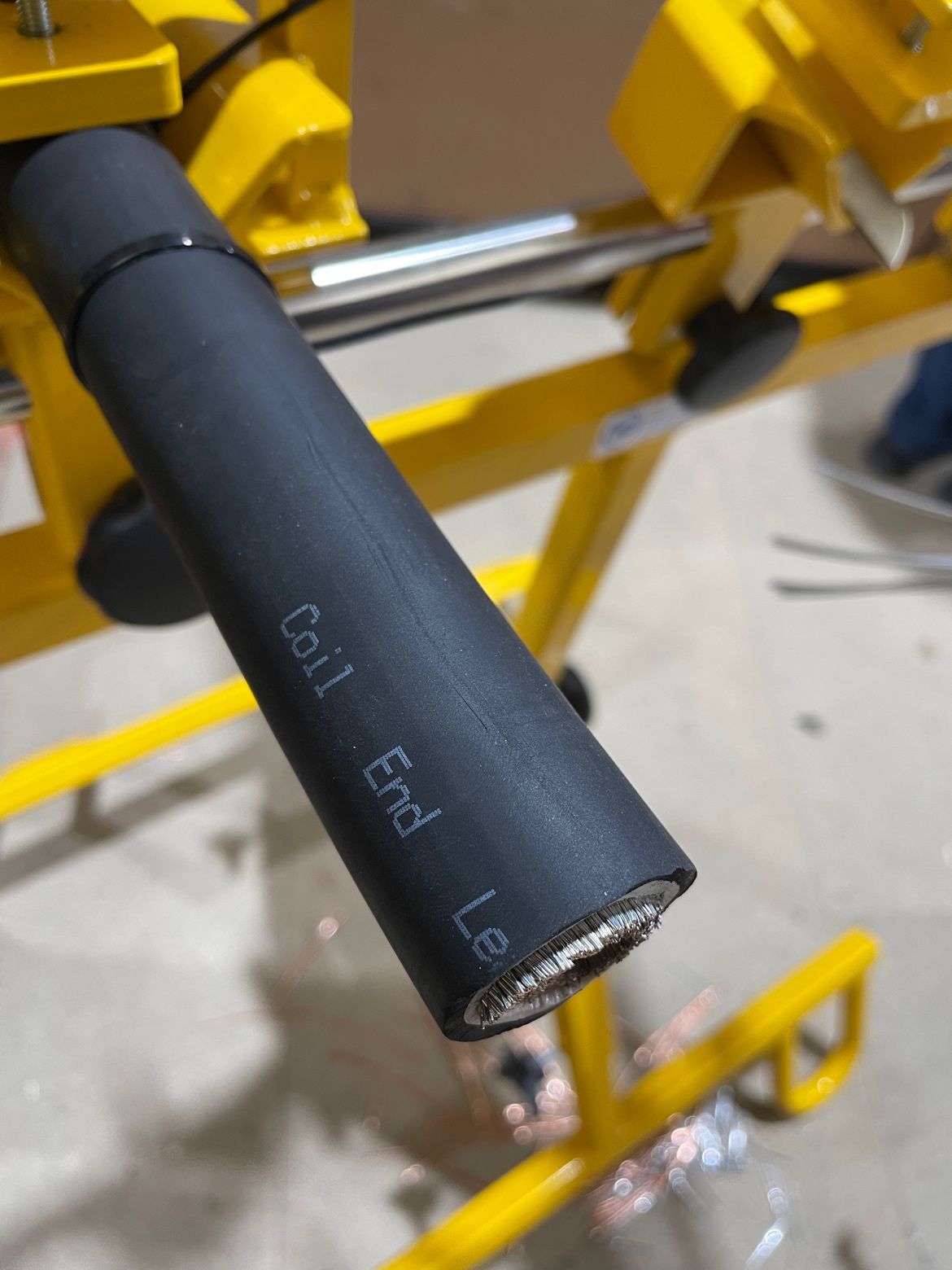

Rubber Coil End Leads BS6915 | Stripping Cables

Safe Stripping without Open-Blades using Ripley Tools US15 – the tool comfortably rolls in a fixed position without travelling on soft rubber sheathed cables producing a clean spiral cut without damaging flexible conductors – this strip took 90 seconds per end introducing safety and improving finish without resort to standard Stanley’s or other fixed blade retractable knives.

US15-7010 PRO Models

Cutting Blade Replacement Instruction

1. Turn the black blade adjusting knob counterclockwise fully for a 0 blade depth
2. Secure a section of scrap cable into the tool
3. Loosen the blade retaining screw with a 1/16 hex wrench and remove the blade from the collar
4. Insert a new blade through the collar with the flat facing the screw. Drop the blade so it is resting on the cable OD. Re-tighten the blade holding screw against the flat portion of the blade shaft
5. Re-adjust the blade to the desired depth setting

Cutting Blade Alignment Feature

The US15 Stripping Tool from Ripley is designed with a blade alignment feature to ensure the ring cut will track squarely. If misalignment is determined, turn the blade alignment adjusting screw with a 1/8” hex wrench in the correct direction to bring the tool back to a properly tracking ring cut.

Bonded Semicon US02-7000 | Sheath Jacket Removal US15 | Peelable Semicon SCS | Cable Stripper US01-7000 | Preparation & Jointing Tools for LV MV HV Power Cables & Fibre Optic

Data Sheets

• Ripley US15-7010 PRO | Cable Sheath Jacket Stripping Tool LV HV
  Download
