33kV Cable Sheath Stripping with the Ripley US15 Tool

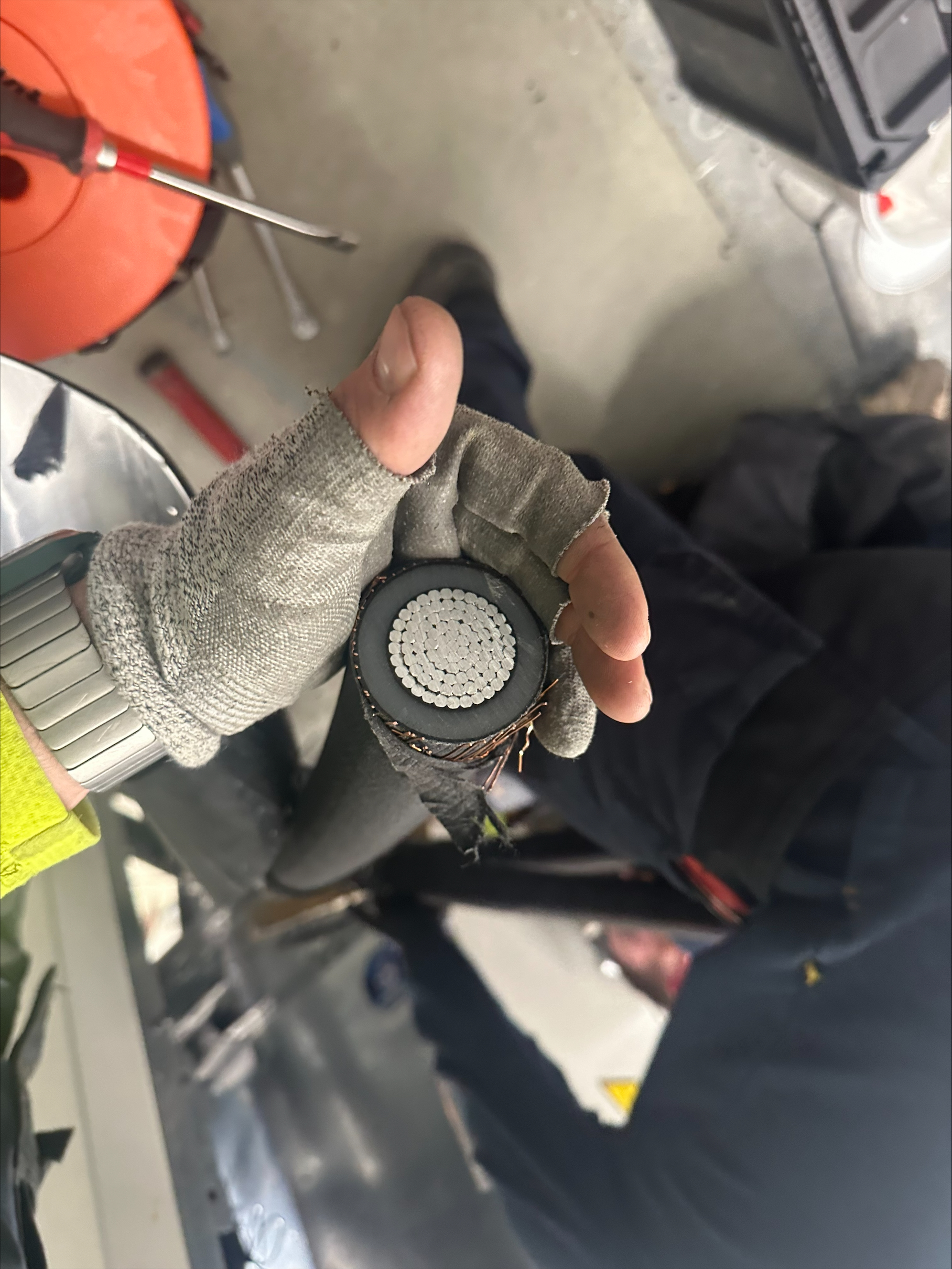

Jointer Steffan Evans from HVSM demonstrates how to remove the cable sheath and bonded aluminium screen from a 33kV single-core, 800mm² XLPE-insulated cable.

Steffan uses the Ripley US15 Cable Sheath Stripping Tool, designed for cable sheath diameters of 10–50mm. When used by trained and competent jointers, the tool removes the outer sheath and bonded aluminium foil screen while helping to protect the underlying copper wire screens from damage.

Explore our range of cable jointing tools for cable preparation and installation applications.

Cable Preparation – Nexans Euromold Installation Instructions

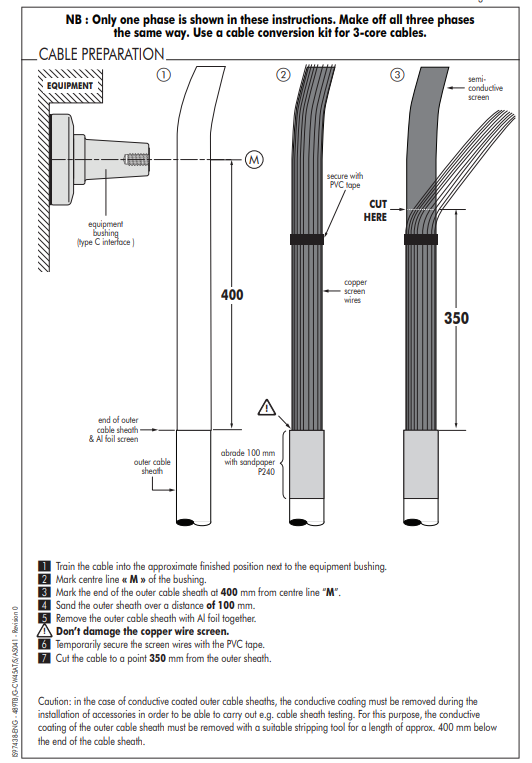

The following excerpt from the Nexans Euromold Type C Interface Connectors (K), (M), (P) 800PB/G instructions, rated up to 20.8/36 (42)kV, highlights the requirement to remove the outer cable sheath and aluminium foil screen together.

Important caution: When working with conductive-coated outer cable sheaths, installers must remove the conductive coating when preparing the cable for accessories. This allows tasks such as cable sheath testing to take place.

The instructions specify that installers should remove approximately 400mm of conductive coating below the end of the cable sheath using a suitable stripping tool.

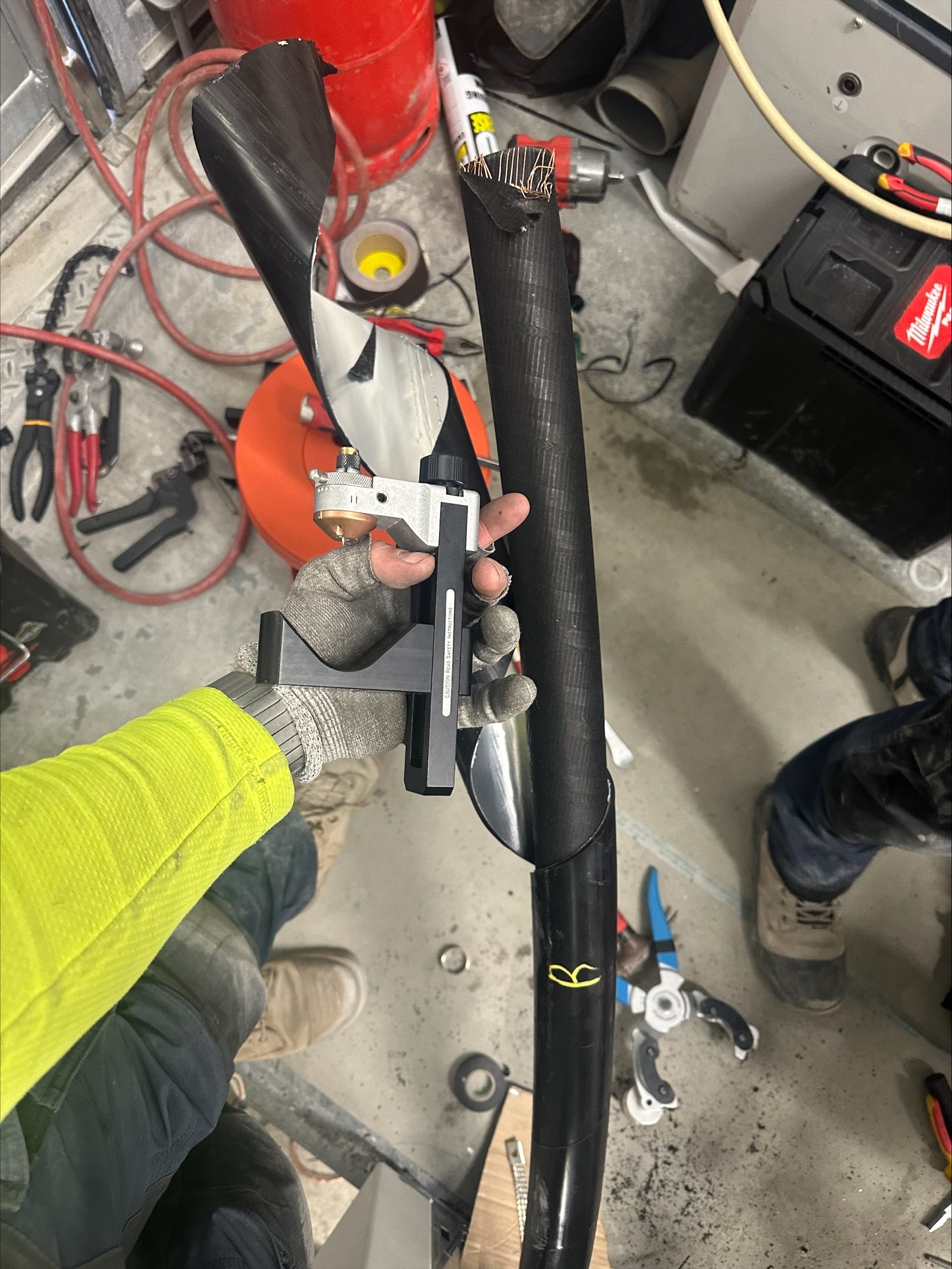

Sheath stripping with the Ripley US15

Stripping Bonded Screens on 33kV Cables

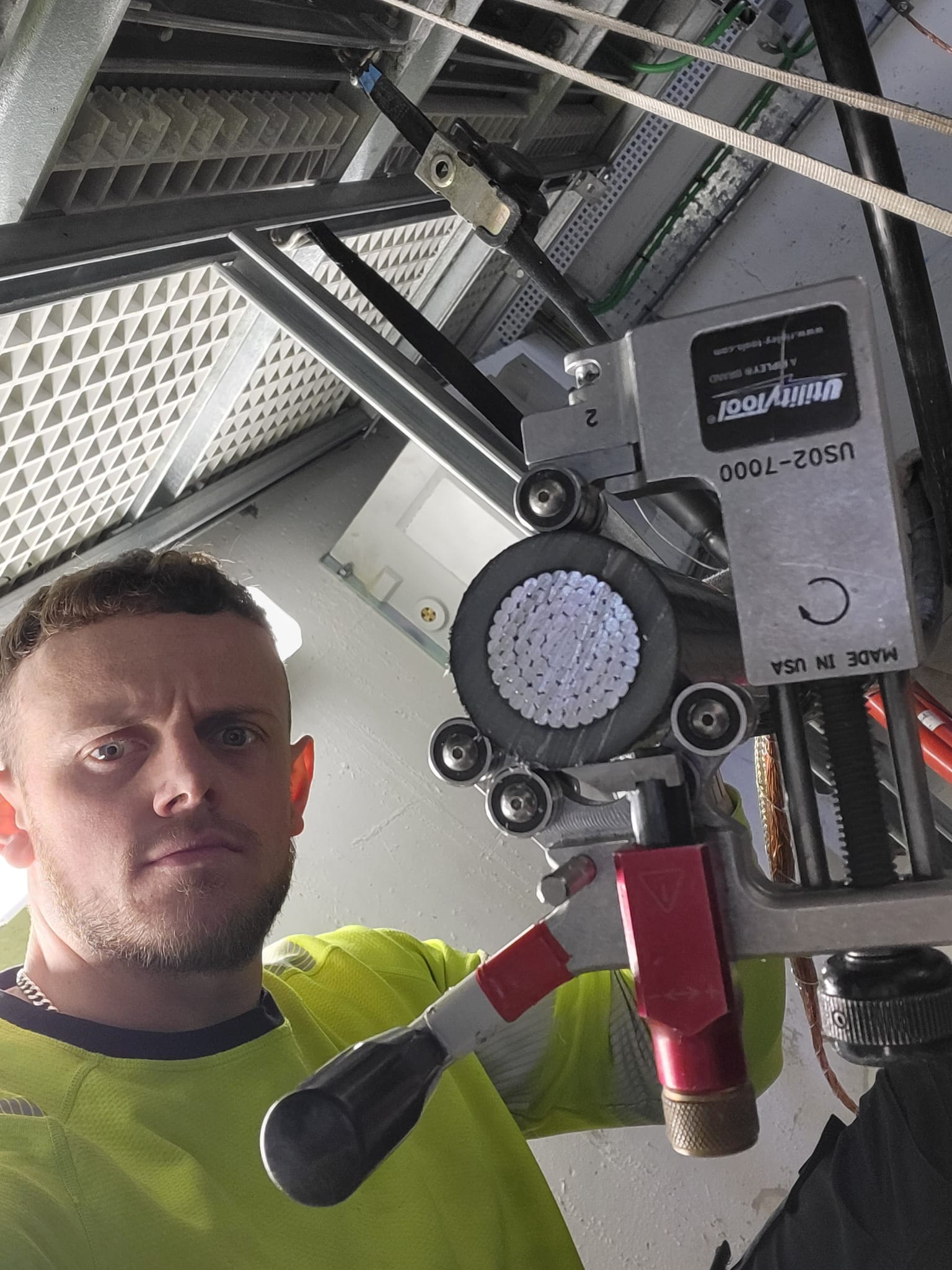

In this demonstration, Steffan removes the bonded semi-conductive screen from medium-voltage power cables (20/22kV) before terminating them into a Siemens NXAIR vacuum circuit breaker.

He uses the Ripley US02-7000 Semi-Con Shaver to precisely remove the bonded screen from a 400mm² cable. This prepares the cable for the installation of a Raychem (Tyco) heat shrink cable termination.

Ripley US02 Cable Preparation Tool

Manufactured by Ripley Tools, the US02 features an ergonomic revolving handle and accessible adjustment knobs. These features help jointers work comfortably and accurately when performing repetitive screen-shaving tasks in the field.

“Investing in innovation and introducing cable jointing tools to HVSM improves safety and reliability for our clients. The Ripley US02 is very Jointer-friendly with a spectacular finish to the XLPE insulation – the automatic cut-off and incremental blade adjustments ensure a professional perfection of cable preparation at medium voltages,” comments Steffan.

Stripping in the Switch – Compact Tool Design

The compact but robust design of the US02 allows jointers to work in confined spaces within medium-voltage electrical equipment.
