3M Cold Shrink Terminations Connecting Nexans 12kV (MV) Cable Onto Copper Busbar

Published 27 Nov 2017

Joints Terminations Connectors LV MV HV

  • Application: Terminating 12kV Cables Using 3M Cold Shrink Cable Terminations
  • Cable Type: Nexans – XLPE 500kcmil (MCM) Single Core LC Cable
  • Cable Jointer: Andy O’Malley (IBEW 258 EHV Cable Jointer / Cable Splicer)
  • Featured Manufacturer: 3M

3M Cold Shrink Cable Terminations

3M Cold Shrink Terminations (QTIII) are shown terminating 12kV 3 core XLPE (polymeric insulated) cables onto copper busbar with double hole compression cable lugs – the Nexans LC (longitudinally corrugated copper) type cable without screen wires is effectively terminated “cold” i.e. without need for naked flames associated with conventional heat shrink type cable terminations.

3M medium voltage primary distribution cable terminations are extensively used in substations and cable vaults with confined spaces where the presence of potentially explosive atmospheres and flammable gas preclude “hot-working”.

3M Cold Shrink Cable Terminations

“Skirted” cable terminations feature integral rain sheds suitable for indoor (substation switchgear and transformer) or outdoor (pole-top mounted) installation. The 3 phases are clearly labelled using cable tags (Red, Yellow Blue) attached with conventional cable ties.

The MV feeder replacement project required the removal of an existing 400sqmm PILC medium voltage cable and installation of new 500sqmm XLPE single core cable system – the previous MV system under the cable terminations for grounding is obsolete and out of service.

Note the NEMA pad bolted connection – there is a ball stud on it which is used for applying your working grounds.

MV Shielding For Substation Cables

Longitudinal Corrugated Tape Shielding – a flat copper tape is corrugated at right angles to its length and then formed into a cylinder around the medium voltage cable core or inner cable sheath/jacket. LCT shield design enables rapid stripping and termination by the cable jointer. 3M GSK Shield Grounding Accessory Kits convert concentric neutral (CN) or jacketed concentric neutral (JCN) QT-II or QT-III Cold Shrink termination kits for use on longitudinally corrugated (LC) and tape shielded power cables.

Contact T&D to discuss your next MV Cable Jointing or Terminating application using 3M Cold Shrink.

Nexans Cable Medium High Voltage Termination

Medium Voltage Primary UD LCT Shielded Cable

High Voltage Medium Voltage Cable Jointing Terminating

Allteck Line Contractors – specialised services for the high voltage electric power industry.

3M Cold Shrink - Rejacketing Sleeves

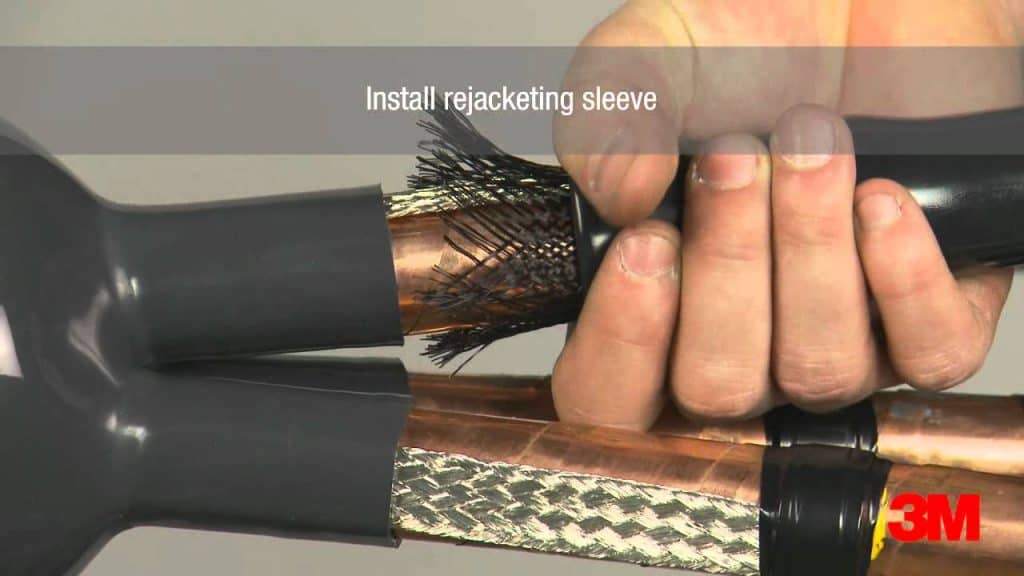

3M Termination Installation – sealing the cold shrink cable breakout and rejacketing the phases on 3 core medium and high voltage power cables without ground wires.
