Duct Rod Pushers
The CBS duct rod pushers are designed to assist in conduit and duct rodding operations.
Duct rod pushing equipment makes placing pulling lines or fibre cables into old or occupied conduits much easier and requires fewer operators.

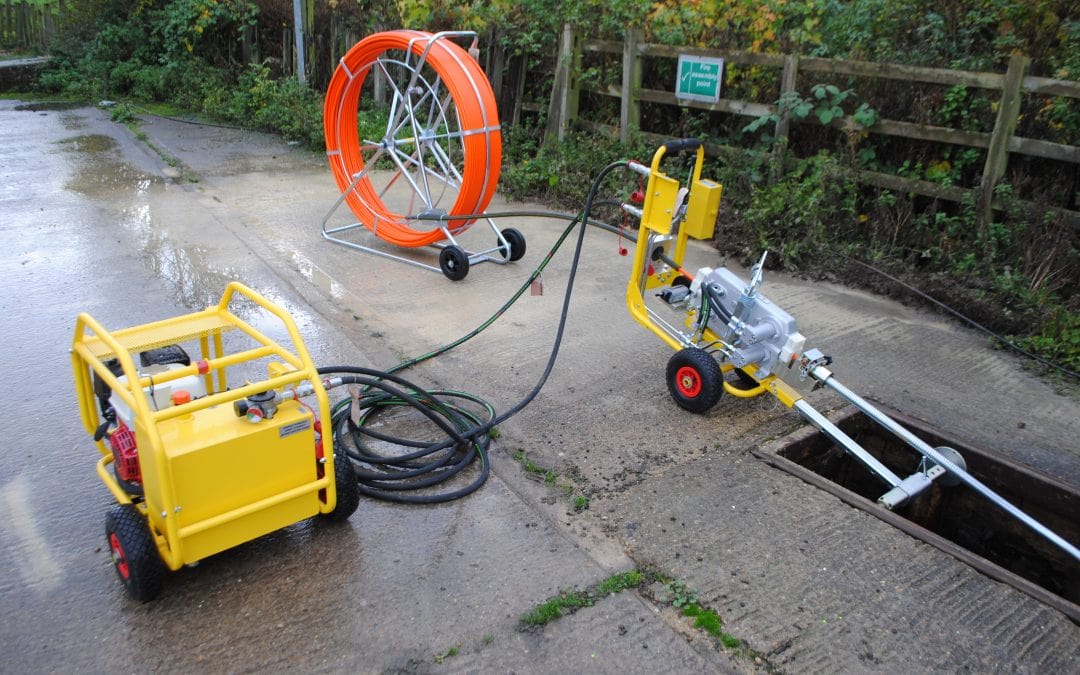

The duct rod pushers are mounted on sturdy, anti corrosion treated tubular steel frame, and fitted with gel filled puncture proof tyres, with hydraulic controls mounted on the frame for ease of transportation. The rod pushers are fitted with a tilting extendable boom, and chamber clamp for use in underground structures.
Features
- Spring loaded self-centring fail safe operating lever.
- Measuring counter with reset lever.
- Front boom extending to 1 metre with angle facility dropping into underground chamber.
- Extendable chamber clamp for attaching to sidewalls. Range 400 – 800mm.
- Angle of operation 0-45º.
- Duct rod pushers feature integral lifting eye.

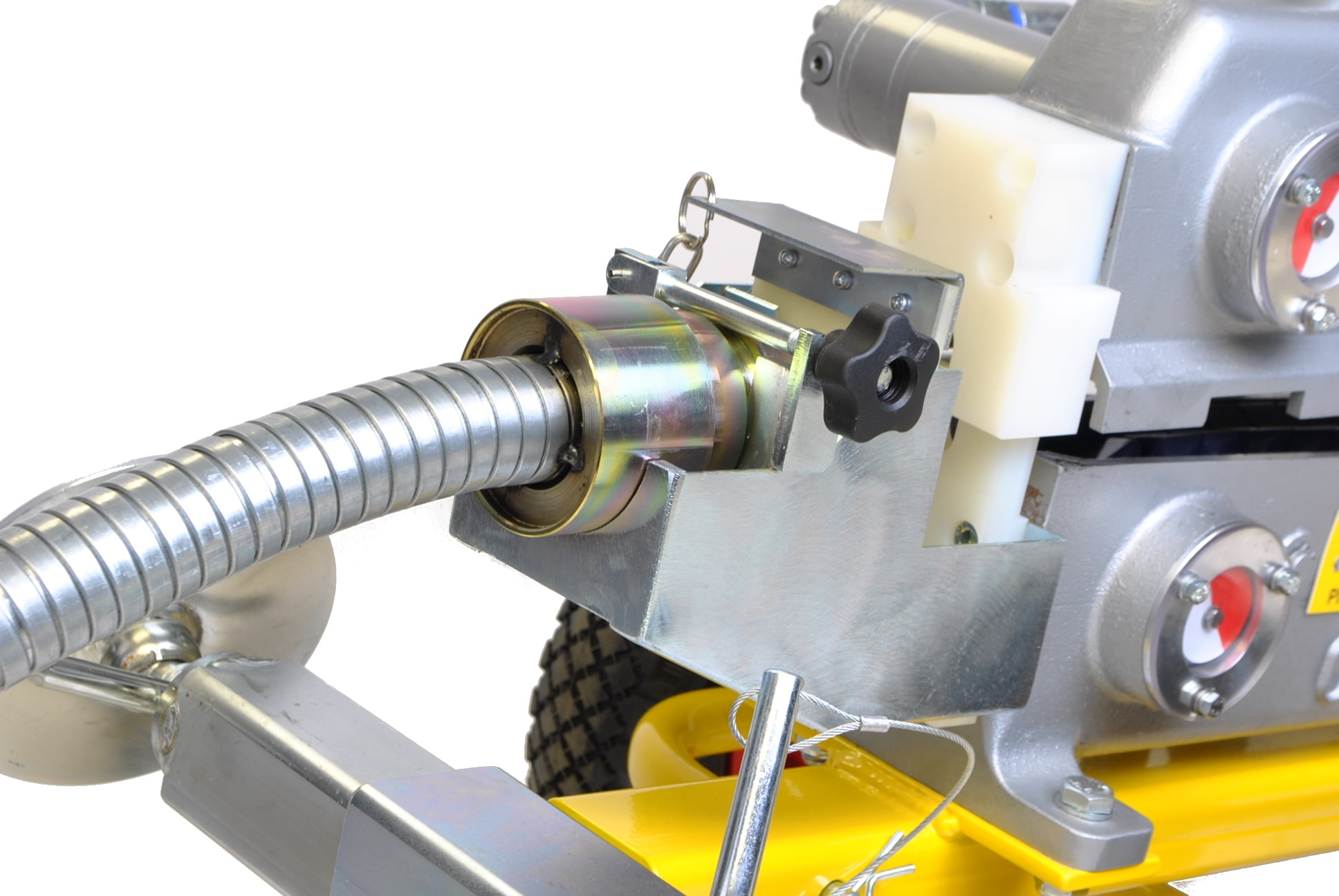

- Split pusher body which lifts and rotates to allow removal of duct rod.
- Anti crush control to prevent damage to rod.
- Disc spring controlled screw clamp to engage drive belts onto the rod.
- Cast aluminium body.
- Moulded profiled drive belts.
Contact Thorne & Derrick for competitive prices and delivery on the complete range of Duct Rods & Pushers for cable pulling applications.
Duct Rod Pushers
Specification: C-1270-0001-04-BT
| CBS Order Code | C-1270-0001-04-BT |
| Product Description | Duct Rod Pusher – 50cc motors |
| Diameter Range | 14mm |
| Installation speed | 0-30m/min* |
| Pushing/Pulling capacity | 220kgs at 60bar |
| Length | 1050mm |
| Width | 700mm |
| Height | 760mm |
| Weight | 53kg |
| * When used with the CBS C-1203-F power pack | |
