Nexans Screened Elbow Terminations (Type C Bushings On 33kV Transformer)

Published 18 Apr 2018

  • Application: Type C Bushings On 33kV Transformer
  • Contributor: Dave Boyd EHV Cable Jointer – HV Cablepower Pty Ltd
  • Featured Manufacturer: Nexans
  • Product Type: Type C Bushing Connectors

Nexans Screened Elbow Terminations

Nexans Euromold 480TB type MV separable connectors are used to terminate MV-HV XLPE/EPR (polymeric) insulated cables up to 42kV into Interface C Bushings.

Nexan’s 480TB tee connector with 630A – 1250A current rating is designed for Interface C and covers voltages from 12kV to 42kV with a maximum conductor size of 300sqmm.

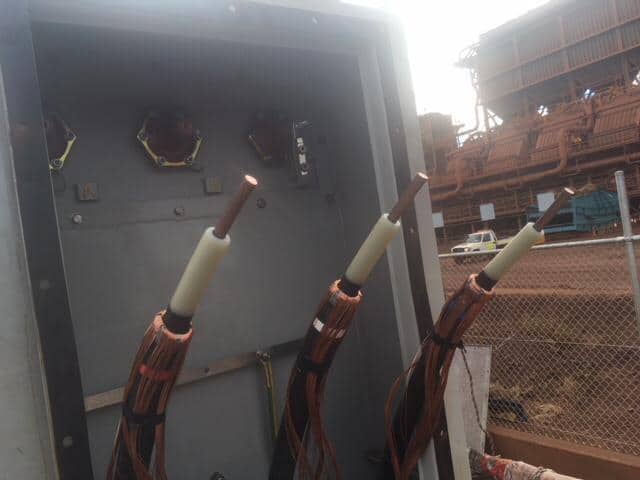

Nexans separable connectors are typically used to terminate cables on power systems and circuits distributing MV-HV electricity at 6.6kV, 11kV, 33kV and 66kV according to CENELEC EN50180 and IEEE ANSI – in the site photographs below the 33kV single core cables (185sqmm) with XLPE insulation and copper wire screens are shown prepared and awaiting connection of the Euromold connectors. The copper wire screens are oversleeved with green/yellow insulation and bonded to earth point.

Once installed the high voltage cable terminations were subjected to and passed VLF, Tan Delta and PD tests.

Nexans Screened Elbow Terminations (Type C Bushings On 33kV Transformer)

Nexans Screened Elbow Terminations (Type C Bushings On 33kV Transformer)

Euromold

The Euromold range of Separable Connectors are suitable for the termination of power cables onto all MV-HV bushing interfaces:

Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs - Interface A Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface B Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface C Compact Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface C Symmetrical Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface D Nexans Euromold Separable Connectors MV HV Elbows Tees Plugs – Interface E
