Photo Gallery: Pfisterer 132kV – Switchgear Joints, Terminations & Connex Plugs

Published 12 May 2020

T&D, a leading distributor and stockist for Pfisterer Connex HV Cable Plugs, are delighted to present a stunning selection of application photographs from the Muncey & Black Peak PV Farms, Melbourn, South Cambridgeshire project.

All images courtesy : Karl McFadden (Business Development Engineer, Renewables & Business Unit PDS at PFISTERER).

Special mention to Richie Rice (EHV Cable Jointer).

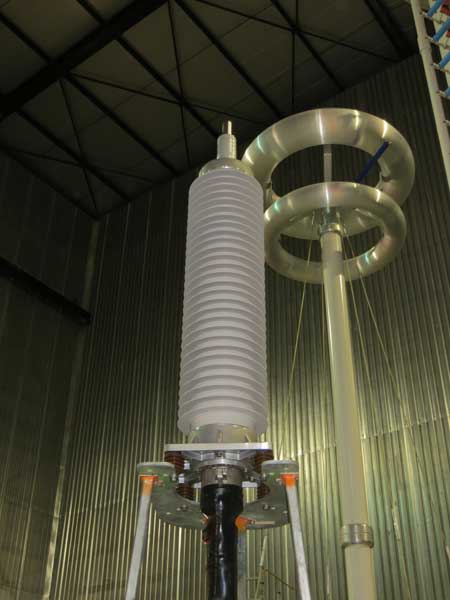

Pfisterer Cable Termination : ESS145 Fluid Filled ODSE Terminating 2000sqmm XLPE Single Core Lead Sheathed Cable During DMK Type Test. 132kV.

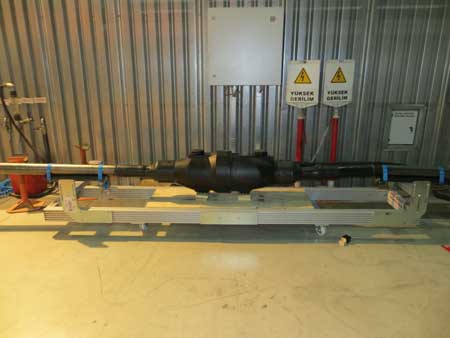

Pfisterer Cable Joint : MSA145 XKG Single Piece Slip-on Cross Bonding Cable Joint Jointing 2000sqmm XLPE Single Core Lead Sheathed Cable To 300sqmm Concentric Bonding Cable. 132kV.

Pfisterer Cable Termination : ESS145C45 Cable Termination With Cold Fill Compound & Stress Cone Fitted Prior To Hollow Core Being Assembled 132kV.

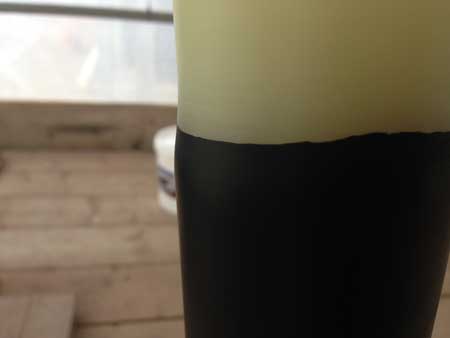

Pfisterer Cable Termination : ESS145C45 Cable Termination. Semi-con Screen Transition During Jointing.132kV.

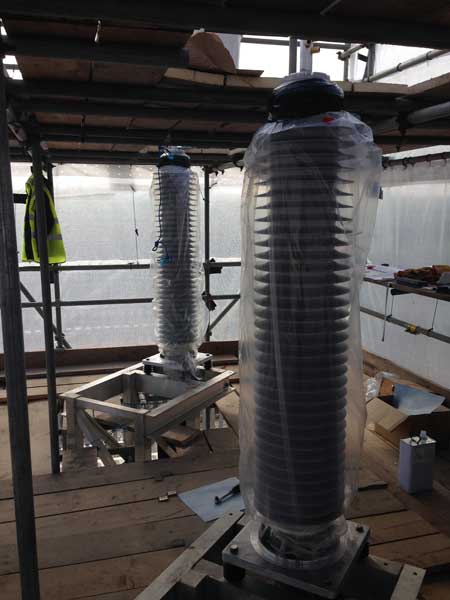

Pfisterer Cable Termination : ESS145C45 Cable Termination. Hollow Cores On, Filled & Top Bolts Going Into Place. 132kV.

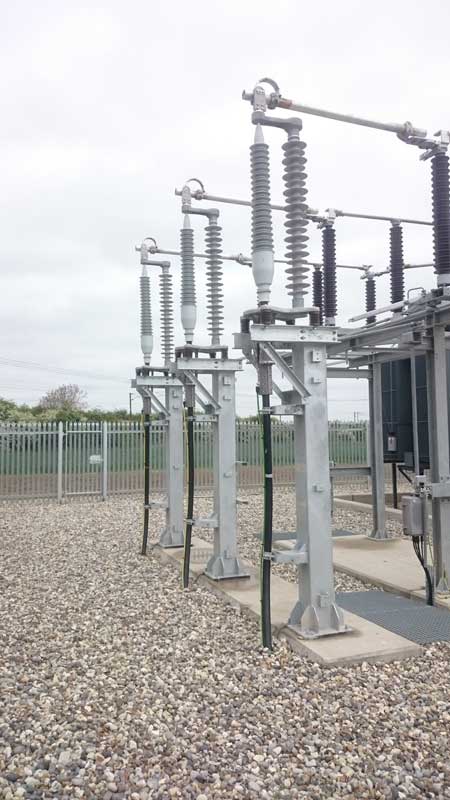

Pfisterer Cable Termination : EST145 Outdoor EHV Cable Termination (Dry Type). Termination Lifted Onto The Steel Stations. Terminations Were Ground Assembled & Lifted Up For Final Finish. 132kV.

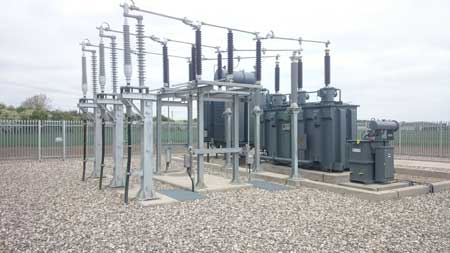

Pfisterer Cable Termination : EST145 Outdoor EHV Cable Termination (Dry Type). Substation. 132kV.

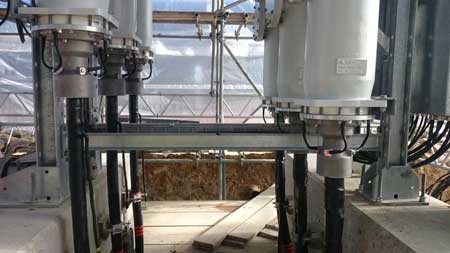

Pfisterer Cable Termination : EST145 Outdoor EHV Cable Termination (Dry Type). Substation. Internal Photo During Termination Installation Prior To Backfilling. Richie Rice assisted install.132kV.

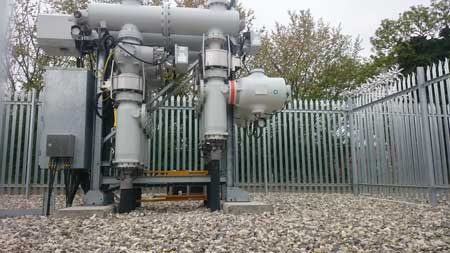

Pfisterer Connex Cable Termination : Size 5S High Voltage GIS Cable Termination Installed To ABB Passmo (Plug & Switch Switchgear) Unit. One Side Completed To 300sqmm Cable (right hand side) & 630sqmm Cable (left hand side). 132kV.

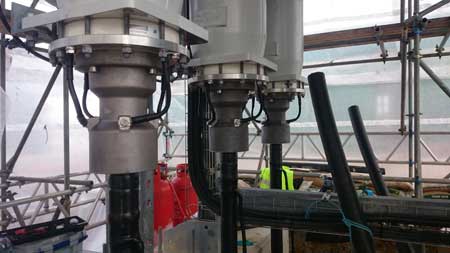

Pfisterer Connex Cable Termination : Size 5S High Voltage GIS Cable Termination Assembled Onto The Cable Prior To Installation. 132kV.

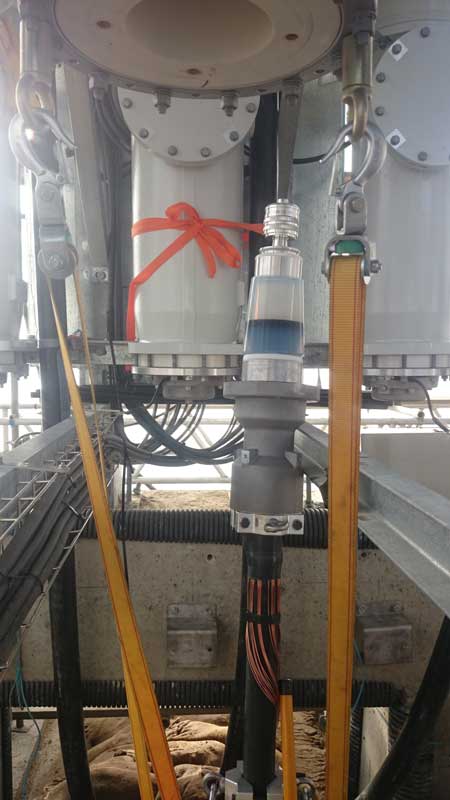

Pfisterer Connex Cable Termination : Size 5S High Voltage GIS Cable Termination Completed Installation. 132kV.
