BAND-IT BAND-FAST CLAMPS
BAND-IT BAND-FAST clamps are a low cost alternative to cable cleats as they are faster to install, lower profile and need no additional fixings – the cable clamps utilising BAND-IT strapping bands are short-circuit tested up to 76.3kA.
The cable clamps have a width of 15.88mm (5/8″) and are made from 316 grade stainless steel. Uncoated cable clamps are also available with a width of 19.1mm (3/4″) . The PPA coated cable clamps have passed IEC61914:2015 short circuit test in a trefoil configuration – with short circuit fault current ratings of single wrap up to 50.8kA and double wrap up to 76.3kA.
BAND-FAST clamps can be installed using the Bantam Tool – Order code – BAND-IT C075.
BAND-FAST Cable Clamps | Advantages
- Purchase price is significantly lower than cable cleats
–Up to 75% material cost savings
- Installation time is dramatically reduced
–Reduce labour cost by over 50%
- Lower profile
–Space savings on construction
- More versatile cable clamps
–Conforms to most shapes / cable configurations
–Fewer SKU’s to order / stock
- Large diameter reduction (one size fits all)
–Fewer SKU’s to order / stock
- No accessories required
–No nuts / bolts / packing blocks
- Lighter weight cable clamps
–Reduced weight on construction
–Easier to carry around site
–Safer during installation at height
Coated Cable Clamps
|BAND-IT Order Code||Length||Single/Double Wrap||*Max Cable OD (Single cable config.)||Max Cable OD (Trefoil cable config.)||Max Cable OD (Quadrafoil cable config.)||Weight Per Piece|
Uncoated Cable Clamps
The uncoated cable clamps have passed IEC61914:2015 short circuit test in a trefoil configuration – with short circuit fault current ratings in a double wrap up to 112kA for 15.88mm width and 120kA for 19.1mm width.
BAND-FAST clamps can be installed using the C001 BAND-IT Tool – Order code – BAND-IT C001.
|BAND-IT Order Code||Width||Length||*Max Cable OD (Single cable config.)||Max Cable OD (Trefoil cable config.)||Max Cable OD (Quadrafoil cable config.)||Weight Per Piece|
See also BAND-IT BAND-FAST Clamps.
➡ Thorne & Derrick stock and distribute the complete range of Band & Buckle products and tools manufactured by Band-It from stainless steel used to fasten, strap and clamp LV MV HV cables, pipes and hoses.
Test Report for BAND-IT Company BAND-FAST Cable Bands
45.5 kA, 50.8kA & 76.3kA Short Circuit Current Rating Tests | Single Wrap
Clamp Assembly Reference | LFAC-F1015M***-A900
Single / Double Wrap | Single
Band Width | 5/8″
Fastener Type | Clip
Material | 316 Stainless Steel
Band Coated / Uncoated | Coated with PPA571
Cable | LV Low Voltage 0.6-1kV, PVC, Class 2 Cu, Ø 38-39mm Outside Diameter.
Conclusion | The tested combination passed the test for: 45.5kA peak (600mm spacings) and 50.8kA peak (300mm spacings) short circuit currents according IEC 61914 Edition 2.0 (2015-11), clause 9.5.3: resistant to mechanical forces, withstanding more than one short circuit. After the second short circuit peak test a dielectric test is performed upon the cable clamps at 1kVac for 1 minute after 2 minute pre-wetting by water spray. Result: Pass. BAND-FAST cable clamps demonstrate a short-circuit current withstand of 76.3kA when installed in double wrap formation for the stable support of LV MV HV cables in short-circuit conditions.

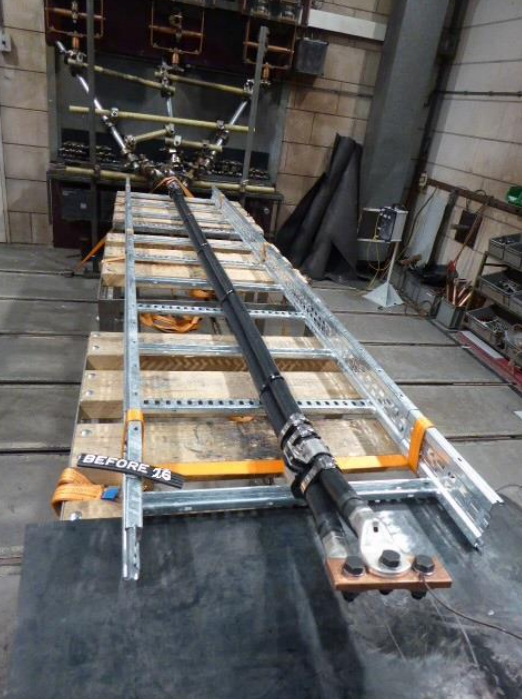

Pictured | Test rig with BAND-FAST cable bands at 600mm centres shown the LV Low Voltage cable, per the specification listed above, located to the cable ladder system in trefoil formation using 5 strapping bands.
