LV MV HV Power Cable Duct (11kV 33kV 66kV 132kV)
LV MV HV Power Cable Duct
Polypipe

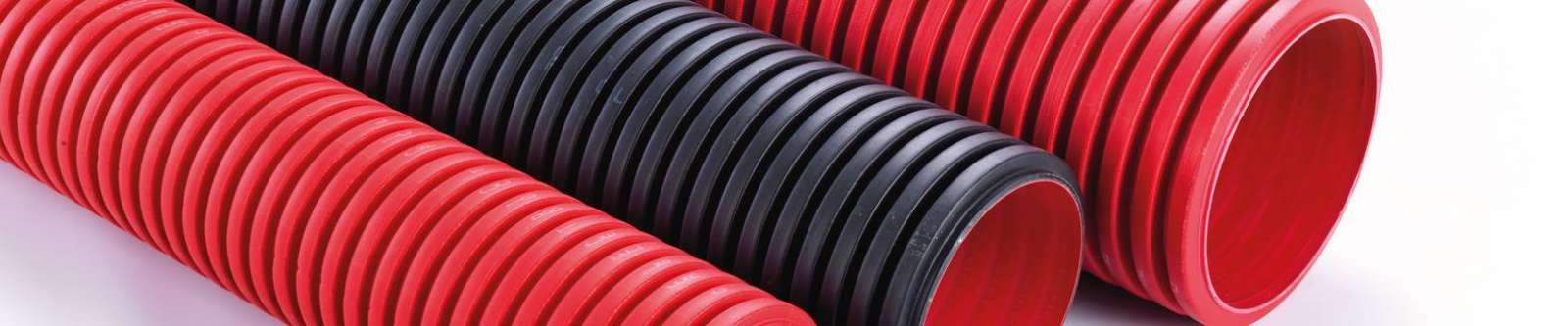

Polypipe manufacture a broad range of LV MV HV power cable duct for low, medium and high voltage protection of cables from 11kV/33kV up to 132kV – specified by UK DNO’s and the power industry.
The Polypipe power cable duct ranges include Ridgiduct, Ridgicoil and Polyduct ducting which comply with ENATS 12-24 Class 1 – Class 3 cable protection specifications and BS EN 61386-24:2010 type 450N or 750N with normal duty impact resistance.
Thorne & Derrick also supply the full range of cable duct including ducting for low voltage street lighting and motorway communications applications.
Selecting Cable Duct
When selecting a cable duct, the fill ratio (defined as the ratio of the cross-sectional area of the intended cable and the internal cross-sectional area of the duct) should be considered when determining the size of cable duct suitable for a cable protection application. The fill ratio should not normally exceed 65%.
The following cable duct classifications are according to ENATS 12-24 (2014):
- Class 1 Cable Ducts – to give 450 N compression strength at 75 °C
- Class 2 Cable Ducts – to give 450 N compression strength at 50 °C
- Class 3 Cable Ducts – to give 450 N compression strength at 23 °C
Cable Duct | ENATS 12-24 Compliant Cable Protection Applications | Polypipe are the UK’s leading supplier to the power and utilities industry and an approved manufacturer for many Distribution Network Operators (DNOs). Polypipe Ridgiduct, Ridgicoil and Polyduct ranges offer a comprehensive choice of cable protection solutions for LV MV HV Power applications.
LV MV HV Power Cable Duct
Underground cable duct and protection system for electrical cables distributing LV MV HV power, including 600V, 11kV 33kV and 66kV voltages.
- High Voltage Class 1 Cable Duct (33kV, 66kV & 132kV) – PVCu
- Polypipe Ridgiduct Power MV HV Class 1 Cable Duct (33kV, 66kV & 132kV)
- Polypipe Ridgiduct Power Class 2 Cable Duct (LV MV HV 11kV 20kV)
- Polypipe Ridgiduct Power Class 3 Cable Duct
- Polypipe Polyduct Power Class 3 Cable Duct (ENATS 12-24)
- Polypipe Ridgicoil Power Cable Duct
Polypipe power cable duct for 11kV-33kV power cable protection applications. See also MV HV Cables.
11KV 33KV Cable Ducts
Thorne & Derrick, The MV-HV Specialist Electrical Distributors, stock and supply an extensive range of medium/high voltage cable accessories (joints and terminations), cable laying equipment and cable duct to support the installation of 11kV and 33kV cables with a range of duct sealing products for protecting substations against flood damage or gas risks.
T&D distribute cable duct for power (LV MV HV), street lighting and motorway communications – Class 1, 2 & 3 ducts protect medium/high voltage cables operating at 11kV, 33kV and EHV up to 132kV.
LV MV HV Power Cable Duct (11kV 33kV 66kV 132kV)Download
