Semi-Con Shield Removal Tool | Power Utility Tool | RIPLEY WS 40

Semi-Con Shield Removal Tool | WS 40 5kv - 34.5kV

Semi-Con Shield Removal Tool For MV HV Cables

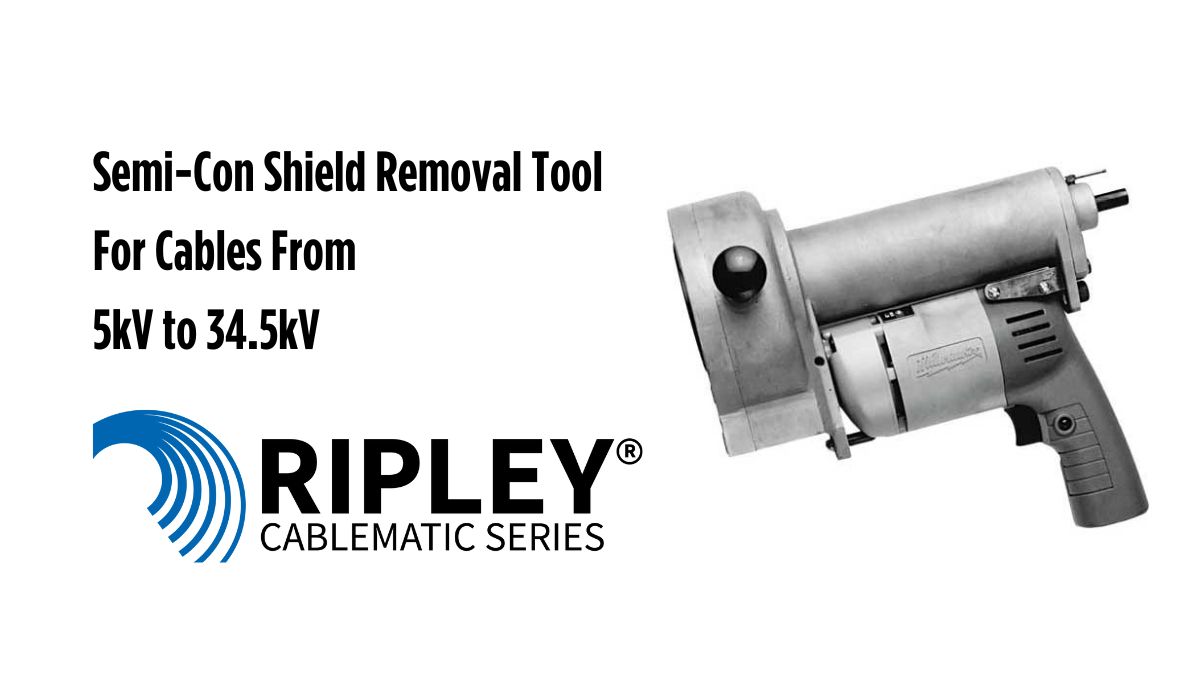

The RIPLEY WS 40 is expertly designed motorised URD Semi-Con Shield Removal Tool, purposed for the removal of the semi-con shield from medium-voltage and high-voltage power cables of operating voltages from 5kV to 34.5kV, with an outer diameter of 0.625″ to 1.875″ (15.88 to 47.63 mm). Specifically, the RIPLEY WS 40 Semi-Con Shield Removal Tool is used when splicing, jointing and terminating both MV & HV overhead power, transmission and distribution cables. This Power Utility Tool can shave semi-shields off from XLPE, polyethylene & EPR insulation.

RIPLEY WS 40 Semi-Con Shield Removal Tool

For removal of “bonded” semi-con shield on 5kV to 34.5kV
For 0.625″ to 1.875″ (15.88 to 47.63 mm) diameters
For shaving semi-con shields off XLPE, polyethylene and EPR
WS 40 master shaving bushings and cable bushing adapter sleeves are sold separately
Available in 115 VAC
Length: with master bushing – 12 in (305mm)
Weight: WS 40 – 13lbs (5.90kg); Master shaving bushing – 1lbs (454g); Adapter sleeve – 4oz (113.5g)
WS 40 115 VAC Part Number: 17900

Thorne & Derrick stock and distribute an extensive range RIPLEY Tools, including the RIPLEY WS 40 Semi-Con Shield Removal Tool, as well as similar Utility Cable Tools for Semi-Con Shaving MV HV Cables, such as the RIPLEY US02 Bonded Semi-Con Shaving Tool and RIPLEY USE01-7100 Hotstick Operable Cable Stripper. We provide competitive pricing, excellent customer service and fast worldwide delivery for RIPLEY products.

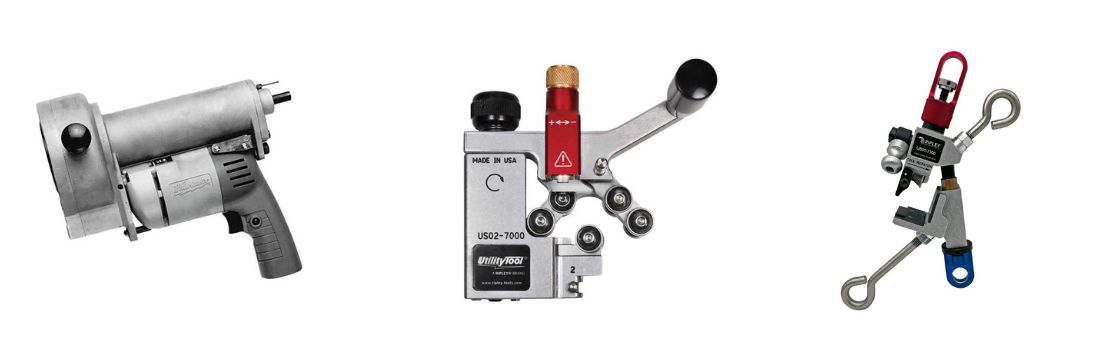

RIPLEY Tools | WS 40 | US02-7000 | US01-7100

Ripley WS 40 Power Utility Tool Compatibility & Technical Specifications

The following tables provide a further insight on the compatibility & technical specifications for the RIPLEY WS 40 Semi-Con Shield Removal Tool:

Semi-Con Shield Removal Tool Compatibility
Cable Compatibility	Primary Distribution Underground
Cable Access	End
Insulation Materials	XLPE, EPR, PE
Min. Voltage	5kV
Max. Voltage	34.5kV

Semi-Con Shield Removal Tool Technical Specifications
Material	Aluminium
Shaves Semi-Con	Yes
Length	12″ (305 mm)
Weight	13 lb (5.1 kg)

RIPLEY WS 40 Semi-Con Shield Removal Tool Ordering Process

Select the master shaving bushing
Select the adapter sleeves
Cable sample is preferred

Master Shaving Bushing	O.D. Over Semi-Con		Replacement Blade
Master Shaving Bushing	(inch)	(mm)	Replacement Blade
RIPLEY MSBA	0.600 – 0.885	15.24 – 22.48	CB 43 (Part No: 17918)
RIPLEY MSBB	0.840 – 1.140	21.34 – 28.96	CB 43 (Part No: 17918)
RIPLEY MSBC	1.095 -1.380	27.81 – 35.05	CB 43 (Part No: 17918)
RIPLEY MSBD	1.335 – 1.485	33.91 – 37.72	CB 43 (Part No: 17918)
RIPLEY MSBD-1	1.495 – 1.635	37.97 – 41.53	CB 43-1 (Part No: 17951)
RIPLEY MSBE	1.560 – 1.650	39.62 – 41.91	CB 43-1 (Part No: 17951)
RIPLEY MSBE-1	1.660 – 1.905	42.16 – 48.39	CB 43-2 (Part No: 17952)

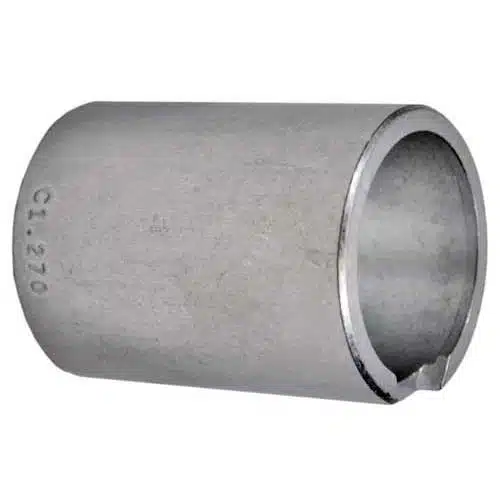

Semi-Con Shield Removal Tool Adapter Sleeves

Select a RIPLEY WS 40 bushing adapter sleeve having the size nearest the OD of your cable semi-con. Then select sleeve one size larger and a sleeve one size smaller. Typically, selecting three sleeves following these directions will handle any cable vibration. Available in 100+ different sizing variants to maximise compatibility for any job required.

HOW TO USE Semi-Con Shield Removal Tool

RIPLEY WS 40 Instructions

Select the adapter sleeve which has the nearest diameter of the Semi-Con Shield Removal Tool, that is to be stripped.
The selected sleeve should fit over the cable, but does not bind.
Mount the selected sleeve onto the master shaving bushing.
Place the bushing over the end of the cable, so that the shaving blade can be adjusted to the correct depth.
Lubricate the semi-con surface with silicone lubricant to minimise friction between the adapter sleeve and semi-con material.
Place the bushing assembly into the RIPLEY WS 40.
Once the correct blade depth has been set, slide the RIPLEY WS 40 onto the cable until the end of the cable is up against the shaving blade.
Squeeze the trigger of the drill and apply slight forward pressure to the tool to begin the stripping operation.
Continue the forward pressure until the desired strip off length is reached.
To complete the operation, let the machine rotate two to three revolutions against a QC1 quick clamp or TC1 transmission cable clamp.
The Semi-Con Shield Removal Tool must stop completely before removing from the cable.

The following video provides a complete visual representation of the above instructions, showcasing the RIPLEY WS 40 in use:
