Underground Cable Warning Tapes

View Sub Products

Underground Warning Tapes - Centriforce

Underground Warning Tapes – Centriforce

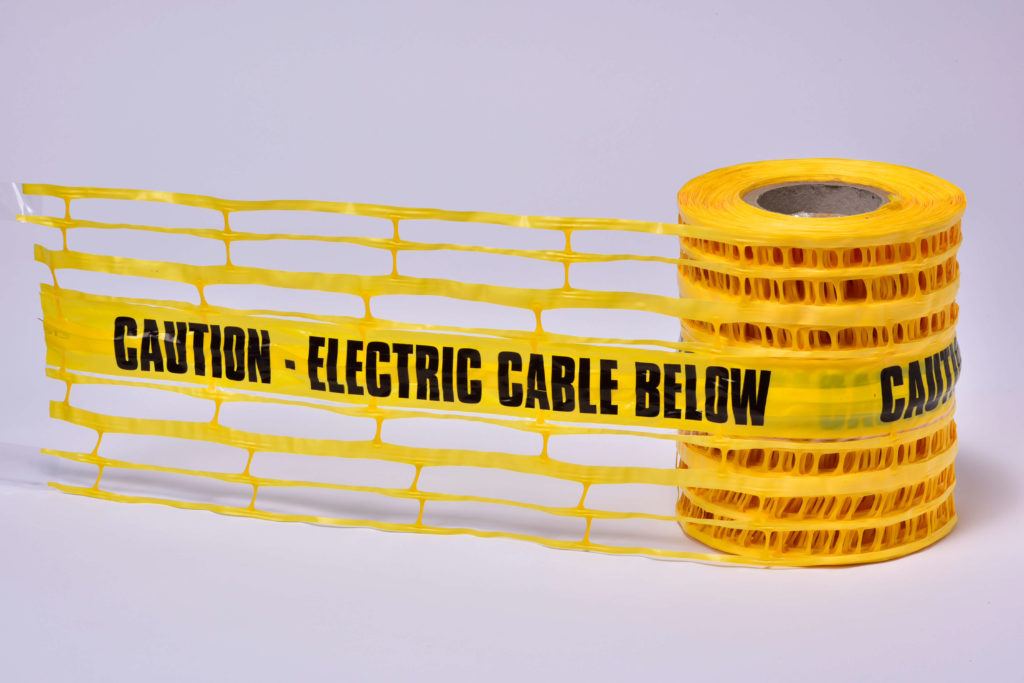

Centriforce underground warning and marker tapes offer a cable protection solution for identifying underground pipes and cables thanks to coloured polyethylene tapes printed with a warning message.

Centriforce Locata underground warning tapes are coloured plastic, non-adhesive films manufactured from linear low-density polyethylene. Centriforce marker tape is printed with a message to warn of the presence of buried utilities e.g. electric cables, telecommunications or fibre optic cables, gas pipelines or water pipelines.

Underground warning tape is usually installed a certain distance directly above the service line to be clearly marked ensuring future excavators will be aware of the cable or pipeline further below.

Warning and marker tapes will only offer a visual warning to excavators. They are not intended to offer any protection or resistance to further excavation. Marker tapes may also be used in combination with Stokbord cable protection tiles or Tapetile cable protection tape.



Underground Cable Warning Tapes

Underground Cable Warning Tapes – Centriforce Utility Protection

Underground Cable Warning Tapes – Benefits

  • High grade low density polyethylene polymers
  • Resistant to most soil types including alkaline and acidic soils
  • Lead free pigments
  • Available in a range of thicknesses
  • Custom manufacturing options

Underground Cable Warning Tapes

Centriforce – Specification

Tape Colour  Text  Roll Size /Width Tape Thickness
Yellow Caution – Electric Cable Below 365m x 150mm  100µm + 50µm
Yellow Caution – Electric Cable Below (+ Arabic Text) 365m x 150mm 100µm + 50µm
Yellow Caution – Gas Main Below 365m x 150mm 100µm + 50µm
Yellow Caution – Street Lighting Cable Below 365m x 150mm 100µm + 50µm
Purple Caution – Street Lighting Cable Below 365m x 150mm 50µm
Blue Caution – Water Pipe Below 365m x 150mm 100µm + 50µm
Green Caution – Telephone Cable Below 365m x 150mm 100µm + 50µm
Green Caution Fibre Optic Cable Below 365m x 150mm 100µm + 50µm
Red Caution Foul Sewer below 365m x 150mm 100µm + 50µm

Centriforce is able to offer Locata underground warning tapes in a range of colours, all manufactured to customer specific roll sizes and thicknesses. Together with T&D they can also offer a very fast turnaround on specific printing requirements with custom warning messages and logos.

11kV 33kV Cable Covers Tiles Stokbords

Protecting LV MV HV Cables – 11kV 33kV Cable Covers, Tiles & Tapes Using Tapetile & Stokbord
