IDC Connectors

3M Scotchlok 560B

3M Scotchlok 560B IDC Electrical Connectors are double run or tap connectors for tap or parallel splicing. These 3M Insulation Displacement Connectors or IDCs are suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring.

Scotchlok 560B IDC Connectors from 3M are 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. They are able to withstand temperatures of 221°F (105°C).

3M 560/560B is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant. – the Scotchlok connectors are compatible with the 3M Electrical range of Scotchcast cable joints.

View the complete range of 3M Scotchlok Connectors for the connection of low voltage cables, conductors and wires.

➡ Other connectors from Thorne & Derrick | Pfisterer Sicon (Shearbolt) | Cembre Splices & Lugs (Crimp Compression)

3M 560B | Connector Specification

The following table provides a specification overview of the type 560B Scotchlok connector manufactured by 3M Electrical.

Conductor Size
18 – 16 AWG / 14 AWG Stranded
Connection Type Double Run or Tap
Connector Style Insulation Displacement Connector
Flame Retardant? Yes
Insulation Material Polypropylene
Maximum Operating Temperature 105°C, 221°F
Maximum Recommended Voltage Rating 600V
Maximum Wire Gauge 14 AWG
Minimum Wire Gauge 18 AWG
Recommended Crimping Tool E-9BM or 9 in. Linemans Pliers
RoHS 2011/65/EU Compliant? Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
Voltage Application  Low Voltage
Water Resistant? No

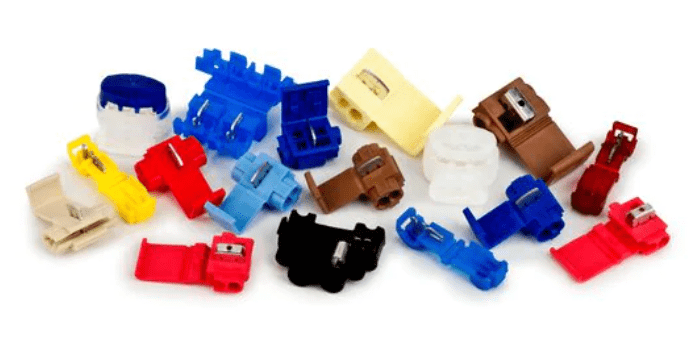

3M Scotchlok Insulation Displacement Connectors

3M Scotchlok Insulation Displacement Connectors
