3M Scotch Super 33+ Vinyl Electrical Tape | Premium 600 V – Cold‑Weather Insulation

3M Scotch Super 33+ Vinyl Electrical Tape – Premium 600 V Insulation

3M Scotch® Super 33+™ Tape is a premium-grade, professional Scotch insulation tape designed to perform in demanding conditions. Built for both indoor and outdoor use, it delivers excellent electrical insulation, mechanical protection, and weather resistance in a compact, easy-to-apply form.

Engineered by 3M to maintain flexibility and adhesion across a wide temperature range (-18°C to 105°C), Super 33+™ provides reliable performance even in cold weather environments.The tape has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions.

Scotch Super 33+ Tape is suitable for primary electrical insulation for all wire and cable joints and splices rated up to 600V and 105°C (220ºF) as well as cold weather applications down to -18ºC (0°F).

Specification – 3M Scotch Super 33+ Vinyl Electrical Tape

Scotch® Super 33+™ is the preferred choice among utilities, electrical contractors, and industrial maintenance teams worldwide. Compared to general-purpose tapes, Super 33+ offers superior mechanical strength, consistent dielectric performance, and long-term weather resistance, ensuring reduced maintenance costs and extended asset lifespan.

The 3M Premium PVC insulation tape is +F2666 PADS Approved for use within Network Rail projects: 055/022271 and conforms to BS 3924 and UL510.

Thorne & Derrick – 3M Electrical Stockists & Suppliers | Scotch Tapes | Scotchcast Resins | Cold Shrink Products | UK & Export Sales

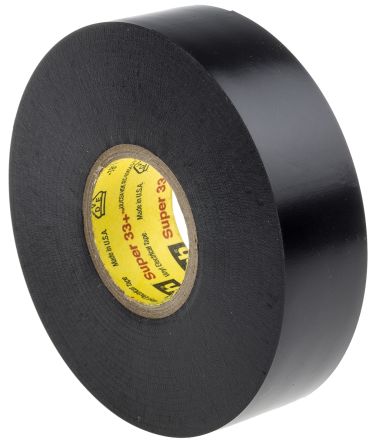

3M Scotch Super 33+ Tape

Premium PVC Insulation Tape Features

• Flame retardant PVC insulation tape
• Designed with an elastic backing and an aggressive adhesive, to provide a moisture-tight electrical and mechanical protection with minimum bulk
• Designed for continuous performance at temperatures ranging from -18°C (0°F) to 105°C (220°F).
• Scotch 33+ conforms to BS 3924 and UL510
• Polyvinyl chloride (PVC) backing
• Pressure-sensitive rubber based adhesive
• 3M Scotch 33+ is compatible with solid dielectric cable insulations
• Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
• Inhibits corrosion of electrical conductors
• Insulation tape for indoor or outdoor applications
• UL Listed: UL 510 Standard “Insulating Tape” (Product Category OANZ), File E129200
• CSA Certification: Standard C22.2 No. 197-M1983 “PVC Insulating Tape” File LR 48769
• VDE 0340 – Type K10

• Primary insulation for cable splices rated up to 600V
• Performs in temperatures from -18°C to 105°C (0°F to 220°F)
• Excellent resistance to UV exposure, moisture, corrosion, and abrasion
• Compatible with a wide range of cable insulations and splicing compounds
• Rubber-based, pressure-sensitive adhesive for superior bond strength
• UL Listed, CSA Certified, and Network Rail PADS Approved

Typical TAPE Applications

• Primary electrical insulation for wire and cable joints

• Protective jacketing for high-voltage cable repairs

• Bundling and harnessing of electrical cables

• Cable jointing in LV, MV, and HV networks (up to 33kV)

• Sealing against environmental contaminants in harsh conditions

Standards & Certifications

• UL Listed (UL 510)

• CSA Certified (C22.2 No. 197-M1983)

• VDE Certified (Type K10)

• BS 3924 Compliant

• +F2666 PADS Approved for use in Network Rail projects

3M SCOTCH SUPER 33+ TAPE – Installation Techniques

• Scotch Super 33+ Tape should be applied in half-lapped layers with sufficient tension to produce a uniform wind (for most applications this tension will reduce the tape’s width to approximately 5/8 of its original width)
• On pigtail splices and joints, the 3M tape shall be wrapped beyond the end of the wires and then folded back, leaving a protective cushion to resist cut-through
• Wrap tape up-hill, taping from a smaller diameter surface to a larger diameter surface
• Apply 3M Scotch Super 33+ tape with no tension on the last wrap to prevent flagging

Available Sizes Of 3M Premium PVC Insulation Tape

Scotch Super 33+ Tape complies with the requirements of UL 510 for storage. When maintained under normal storage conditions, the tape will remain stable and has a five-year shelf-life.

Scotch Super 33+ Vinyl Electrical Tape is available in the following standard sizes:

• 9.5 mm x 33 m

• 12 mm x 33 m

• 19 mm x 33 m

• 25 mm x 33 m

• 38 mm x 33 m

• 50 mm x 33 m

3M Scotch Tapes, including Scotch 33, are preferred by global electric utilities for their high performance, specifications and reliability compared to unbranded, poor-quality electrical tapes prone to degradation, flagging and failure.

3M Scotch Super 33+ Tape

Premium PVC Insulation Tape – Technical Specification

3M Scotch Tape	3M Scotch Tape Part Number	Tape Thickness	Temperature Rating	Roll Size
	3M Scotch Super 88	0.216mm	-18ºC to +105°C	19mm x 20m 25mm x 20m 38mm x 20m
	3M Scotch 33	0.178mm	0ºC to 80ºC	9mm x 33m 12.7mm x 33m 19mm x 33m 25mm x 33m 38mm x 33m 50mm x 33m
	3M Scotch 35	0.178mm	0°C to 80ºC	19mm x 20m
	3M Scotch 22	0.254mm	-10ºC to +80°C	12mm x 33m 19mm x 33m 25mm x 33m 38mm x 33m 50mm x 33m
	3M Scotch 780	0.18mm	-10ºC to +80°C	19mm x 20m
	3M Scotch 2510	0.18mm	-18ºC to +105°C	19mm x 20m
	3M Temflex 1500	0.15mm	0ºC to 90ºC	19mm x 25m
