ALROC CAMF5/55-160-BBCF
Suits & Strips MV HV EHV Cables 55-160mm Diameter | Stocked & Supplied by Thorne & Derrick
CAMF5/55-160-BBCF are multi function cable jointing tools manufactured by Alroc and used by MV-HV jointers to remove the semi-con screen and XLPE insulation to prepare the cable ready for the installation of joints, terminations or connectors. The CAMF5/55-160-BBCF allows the user to remove the bonded semiconductor and remove the XLPE insulation from medium and high voltage cables including 66kV, 132kV, 245kV and 275kV.
Bonded semiconductor removal is a steady process shaping the cable round the insulation with a constant diameter over the insulation which in turn prevents the blade from digging into the insulation. Insulation removal has a back iron which helps the user to tune the pitch of the cable jointing tool making the rotation of the tool easy when removing the insulation.
The CAMF5/55-160-BBCF Preparation Tool enables the Jointer:
– To remove the bonded semiconductor
– To remove the insulation
Cable Diameter Range ø 55 – 160 mm
CAMF Tool Options | Multi Function Cable Preparation Tool
BMFD/50-160 – Thrust to stop the cable preparation tool
K7/PNS – Blade support to make groove in the high voltage cable insulation
ET-AMF5-220V – Motorisation tool
K7/GNS – Blade support to remove outer semiconductor layer
K7/RNS – Insulation midspan blade support removal
Spare Tool Cutting Blades | Alroc LFNS (Bonded Semicon) | Alroc LINS (XLPE Insulation)

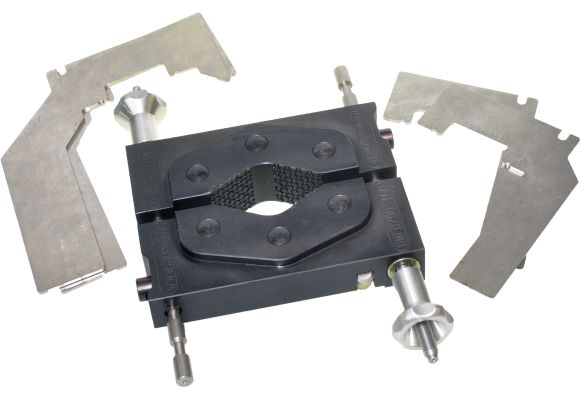

BMFD/50-160 | Thrust Stop

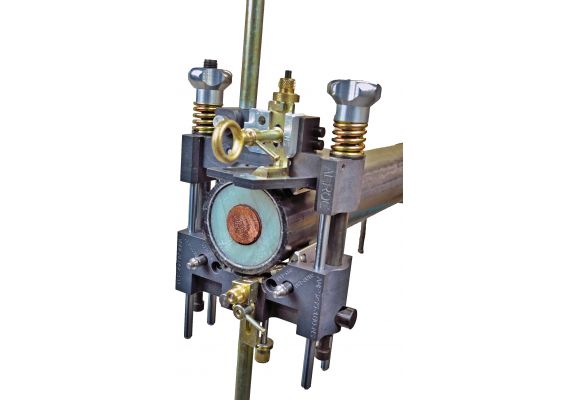

K7GNS | Tool Blade Support | Semicon

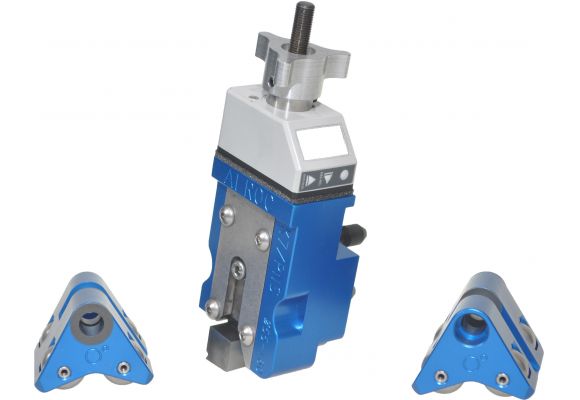

K7PNS | Tool Blade Support | XLPE Insulation
Alroc CAMF4/40-90-BBCF
Up to 90mm Diameter High Voltage XLPE Cables
Suitable for the Preparation of 66kV IAC Inter-Array Cables for Onshore & Offshore Wind Farm Cables
Alroc CAMF5/55-160-BBCF
Up to 160mm Diameter High Voltage XLPE Cables
Suitable for the Preparation of 66kV IAC Inter-Array Cables for Onshore & Offshore Wind Farm Cables
Alroc CAMF5/55-160-BBCF – Technical Specification
| Cable Tool Part Number | Diameter | Tool Capacity | Dimensions | Packaging | |||||
| Bonded semicon thickness capacity | Remaining length of the semicon | Insulation thickness capacity | Guiding | Length | Width | Height | |||
| Alroc CAMF4/40-90-BBCF | 40 – 90 mm 1,575 – 3,543 in |
2.5 mm / 0.098 in | 55 mm / 2,165 in | 35 mm / 1,378 in | By ball bearings | 460 mm 18,110 in |
155 mm 6,102 in |
150 mm 5,906 in |
Case |
| Alroc CAMF5/55-160-BBCF | 55 – 160 mm 2,165 – 6.299 in |
3 mm / 0,118 in | 80 mm / 3,150 in | 35 mm / 1,378 in | By ball bearings | 700 mm 27,559 in |
255 mm 10,039 in |
180 mm 7,087 in |
Case |
| Alroc CAMF5/55-160-NSCF | 55- 160 mm 2,165 – 6.299 in |
3 mm / 0,118 in | 80 mm / 3,150 in | 35 mm / 1,378 in | By wheels rolling | 700 mm 27,559 in |
255 mm 10,039 in |
180 mm 7,087 in |
Case |
Alroc Tools | Approved by Leading High Voltage Cable Manufacturers
Inter Array Cables | Preparation Tools for Offshore Jointing & Termination of 66kV IAC
Jointers Tools
MV HV EHV
- MV Medium Voltage Cables 11kV 33kV
- HV High Voltage Cables 66kV
- EHV Extra High Voltage Transmission & Distribution Cables 132kV 245kV 400kV
Pfisterer | 3M | Nexans | Prysmian – Joints, Terminations & Connectors MV HV
➡ For further information about Alroc cable tools for removing cable screen from MV-HV cables please see below.
Thorne & Derrick also distribute Cembre and Klauke tools for cable cutting and cable crimping of copper and aluminium conductors.
Jointing & Preparation Tools For Cable Jointers & Linesmen Working On MV-HV-EHV Cables & Lines
Alroc CAMF5/55-160-BBCF – Data SheetDownload
