Alroc PG6 HTB Cable Sheath Stripping Pliers MV HV Cables 90-125mm

THORNE & DERRICK | Largest European Stockist for Alroc Cable Jointing & Preparation Tools | UK & Export Sales

Cable Sheath stripping Pliers

Alroc PG6 HTB

Alroc PG6 tool is a cable stripping tool for the clean and precise removal of the outersheath of cables with a 90-125mm range – the PG range of tools provide a “ring and circle” cut to the cable sheath and remove the risk of site accidents associated with “open-blade” type tools or standard electrician knives.

Alroc PG6 HTB cable tools are used by LV-MV-HV cable jointers to remove the outer sheath and prepare the cable ready for the installation of joints, terminations or connectors – the cable preparation tools are quick, light to hold and easy to use by the Jointer when stripping jacket/sheath from LV (Low), Medium (MV) and (HV) High Voltage Cables.

The PG6 HTB, manufactured by Alroc and supplied by Thorne & Derrick, enables the jointer to make a circular and longitudinal cut to the cable in order to remove cable’s outer sheath. All cutting depths ranging from 0,5 mm / 0,019 in to 5 mm / 0,196 in are available on demand. Contact T&D for details.

Alroc cable tools are used by LV MV HV cable jointers to remove cable sheath and jackets to provide excellent cable preparation prior to the installation of joints, terminations or connectors using cold shrink, heat shrink or push-on type technology.

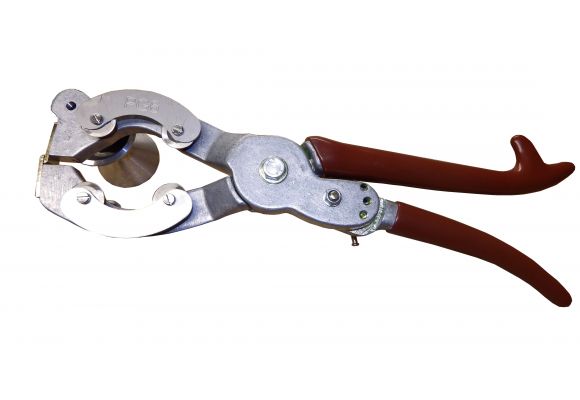

Cable Pliers for Jacket & Sheath Removal & Stripping

ALROC PG6

Cable Pliers

TECHNICAL SPECIFICATION

How to build your customised PG6 cable stripping pliers:

Alroc PG6HTB/yyzz

yy = Circular cutting depth e.g : 35 = 3,5 mm / 0,138 in

zz = Longitudinal cutting depth e.g : 35 = 3,5 mm / 0,138 in

ALROC PG6 SPARE TOOL PARTS

MTC6/35 – Spare blade for circular cable sheath cutting 3,5 mm / 0,138 in (x4)
MTL6/35 – Spare blade for longitudinal cable sheath cutting 3,5 mm / 0,138 in

Alroc tools are precision engineered for the critical preparation and removal of all types of cable sheath including XLPE, PE, PVC, LLPE, PUR and rubber types.

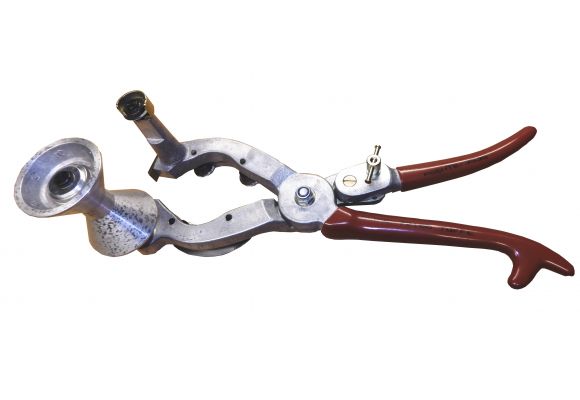

Alroc PG6 HTB Tool

Technical Specification

Cable Tool Part Number	PG6 Diameter	Alroc PG6 Tool Capacity		Tool Dimensions			Packaging
		Circular cutting thickness capacity	Longitudinal cutting thickness capacity	Length	Width	Height
Alroc PG6HTB/3535	ø90 – 125 mm ø3.543 – 4.921 in	3,5 mm / 0,138 in	3,5 mm / 0,138 in	515 mm 20,276 in	195 mm 7,677 in	200 mm 7,874 in	None
Alroc PG6HTB/4040		4,0 mm / 0,157 in	4,0 mm / 0,157 in
