Cable Drum Trailers Up To 2860mm Diameter Drums – SEB CD130

Cable Drum Trailers Up To 2860mm Diameter Drums - SEB CD130

Cable Drum Trailers Up To 2860mm Diameter Drums – SEB CD130

Cable Drum Trailers

SEB CD130 is a cable drum trailer suitable for Highway use with the ability to handle up to 2860mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 5350Kgs.

Cable Drum Trailer

Technical Specification

SEB CD130

SEB Part Number Payload (Approx) Gross Vehicle Weight Max Cable Drum Width Cable Drum Dia max/min Spindle Dia Tow Eye/Coupling Height Unladen Trailer Width Towing Speed Tyres Cable Trailer Brake System
CD130 5350kg 6650kg 1470mm 2860/1360mm 76mm 76/730 2550mm 100Kmh 11.00×22.5 2 Line Air/Mech. c/w ABS

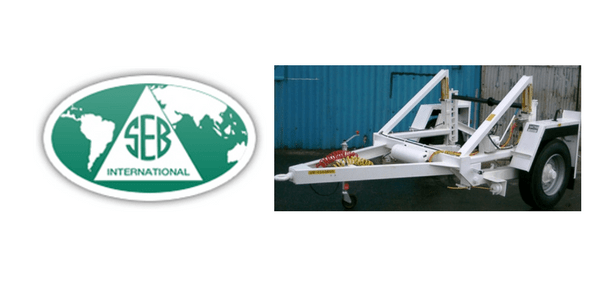

Cable Drum Trailers Up To 2860mm Diameter Drums - SEB CD130

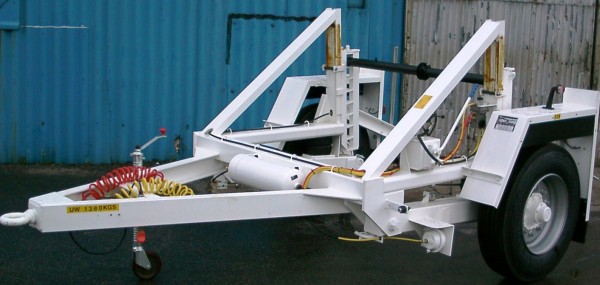

SEB CD130 Cable Drum Trailer

Cable Drum Trailers - EWVTA Highways Range

T&D distribute the complete range of LV-HV Cable Pulling and Laying Equipment including cable rollers, cable socks, drum jacks, drum trailers, cable lubricant, underground cable protection and conduit duct rod.

Cable Pulling Laying 11kV 33kV - Stokbord Tapetile

Underground Cable Protection – 11kV Tapetile and 33kV Stokbord cable covers protect MV-HV power cables.
