Cable Drum Trailers Up To 3200mm Diameter Drums – SEB PT60

Cable Drum Trailers Up To 3200mm Diameter Drums - SEB PT60

Cable Drum Trailers Up To 3200mm Diameter Drums – SEB PT60

Cable Drum Trailers

SEB PT60 is a cable drum trailer suitable for Highway use with the ability to handle up to 3200mm diameter drums – cable drum trailers ensure safe loading, transportation and unreeling of LV, MV, HV or EHV cable from drums with a payload up to 2350Kgs.

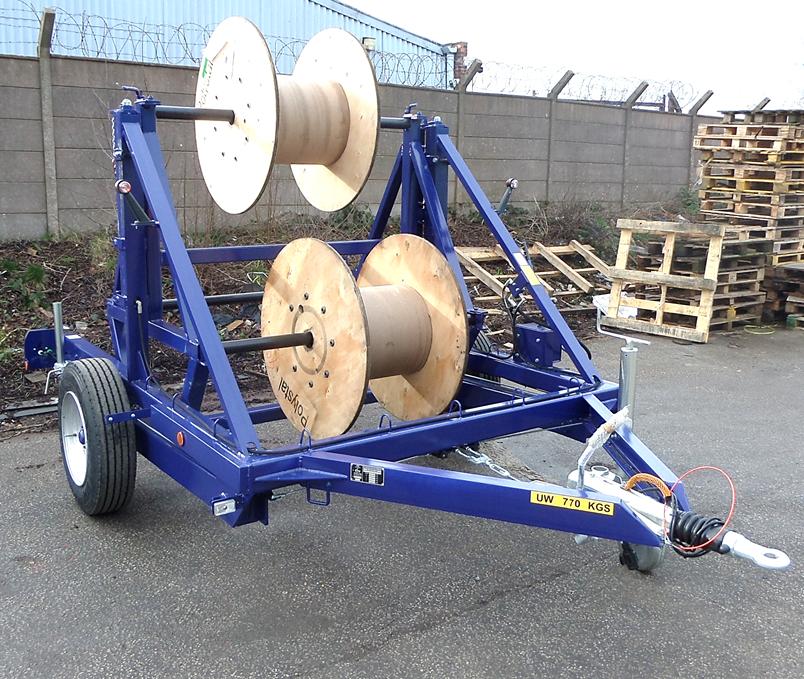

Pictured: SEB PT60 drum trailer with detachable frame to enable a client in Belgium to carry up to 9 cable drums at one time, the unit is to be used for Fibre Optic cable installation works.

Cable Drum Trailer

Cable Drum Trailer

Cable Drum Trailers

Cable Drum Trailer

Technical Specification

SEB PT60

SEB Part Number Payload (Approx) Gross Vehicle Weight Max Cable Drum Width Cable Drum Dia max/min Spindle Dia Tow Eye/Coupling Height Unladen Trailer Width Towing Speed Tyres Cable Trailer Brake System
PT60 2350kg 3150kg 1075mm 3200/1420mm 76mm 50/705 2520mm 100Kmh 215/75R17.5 Overrun
Auto reverse
Cable Drum Trailers - EWVTA Highways Range

T&D distribute the complete range of LV-HV Cable Pulling and Laying Equipment including cable rollers, cable socks, drum jacks, drum trailers, cable lubricant, underground cable protection and conduit duct rod.

Cable Pulling Laying 11kV 33kV - Stokbord Tapetile

Underground Cable Protection – 11kV Tapetile and 33kV Stokbord cable covers protect MV-HV power cables.

Data Sheets
