CC4 Cable To Cable

CC4

CC4

  • Product Category: Exothermic Welding
  • Order Code: CC4

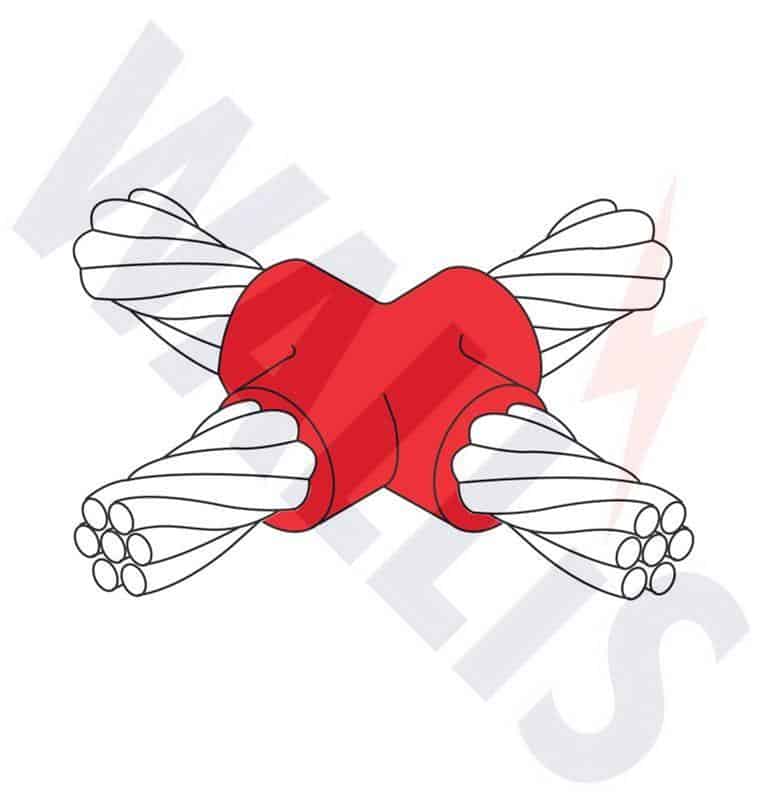

  • Application: Cable to Cable Exothermic Welding Connector

Used to weld copper conductors according to the sizes in the selection table below.

➡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.

A Conductor sqmm B Conductor sqmm Weld Powder Exothermic Welding Mould Handle Clamp
16 16 WEP 045 CC4-C-1616 HCC 001
25 25 CC4-C-2525
35 25 WEP 065 CC4-C-3525
35 CC4-C-3535
8mm ∅ 8mm ∅ WEP 090 CC4-C-88SC
50 25 CC4-C-5025
35 CC4-C-5035
50 CC4-C-5050
70 25 WEP 115 CC4-C-7025
35 CC4-C-7035
50 CC4-C-7050
70 CC4-C-7070
95 35 CC4-C-9535
50 CC4-C-9550
70 WEP 150 CC4-C-9570
95 CC4-C-9595
120 35 WEP 115 CC4-C-12035
50 WEP 150 CC4-C-12050
70 CC4-C-12070
95 WEP 200 CC4-C-12095
120 CC4-C-120120
150 50 WEP 150 CC4-C-15050
70 CC4-C-15070
95 WEP 200 CC4-C-15095
120 WEP 250 CC4-C-150120
150 CC4-C-150150
185 70 WEP 200 CC4-C-18570
95 CC4-C-18595
120 WEP 250 CC4-C-185120
150 CC4-C-185150
185 2 x WEP 150 CC4-D-185185 HCD 001
240 95 CC4-D-24095
120 CC4-D-240120
150 2 x WEP 200 CC4-D-240150
185 CC4-D-240185
240 2 x WEP 250 CC4-D-240240
300 120 2 x WEP 200 CC4-D-300120
150 2 x WEP 250 CC4-D-300150
185 CC4-D-300185
240 3 x WEP 200 CC4-D-300240
300 CC4-D-300300
