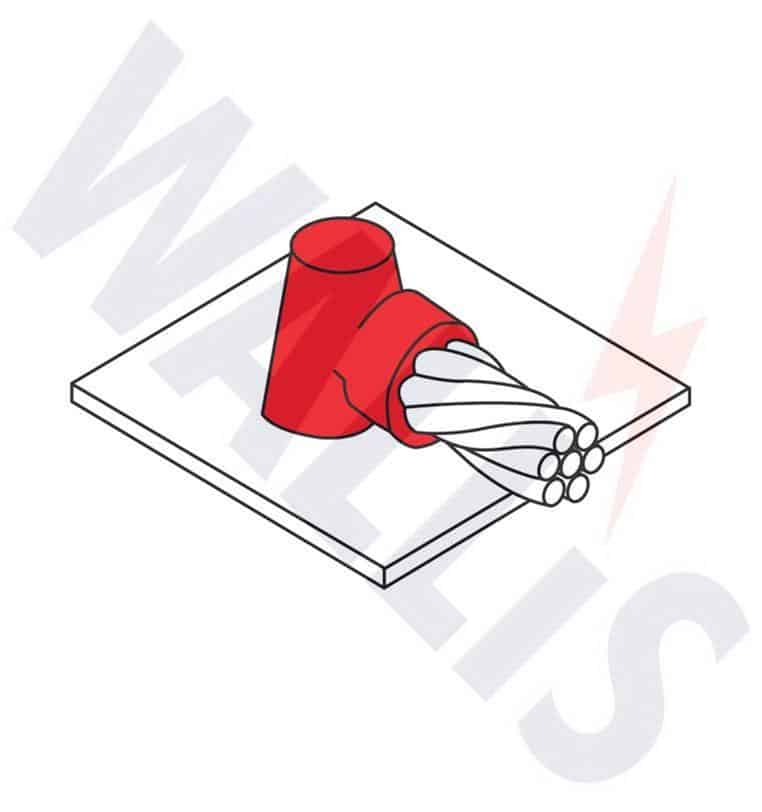

CS1 Cable To Steel Surface

CS1

CS1

  • Product Category: Exothermic Welding
  • Order Code: CS1
  • Application: Cable to Steel Surface Exothermic Welding Connector

Used to weld copper conductors according to the sizes in the selection table below.

➡ Complete range of Earthing & Lightning Protection products manufactured from copper including earth rods, bars, tapes, clamps and ancillary items.

A Conductor sqmm Weld Powder Exothermic Welding Mould Handle Clamp
16 USE MOULD TYPE CS8
25
35
8mm ∅ WEP 045 CS1-C-8SC HCC 001
50 CS1-C-50
70 WEP 065 CS1-C-70
95 WEP 090 CS1-C-95
120 WEP 115 CS1-C-120
150 WEP 150 CS1-C-150
185 WEP 200 CS1-C-185
240 CS1-C-240
300 CS1-D-300 HCD 001
