CCTV Coaxial & Sundry Telecom Cable Joints
Thorne & Derrick – Approved Specialist Distributors To The Rail Industry | LV MV HV
The below table features all CCTV Coaxial & Telecom cable joints including SPS part numbers, PADS Network Rail approvals, cable joint description and style.
Other Heat Shrink Cable Joints For Rail Cable Connections
Cable accessories with Network Rail approvals manufactured by 3M Electrical using cold shrink are available to joint, terminate, insulate and repair damaged cables.
Cable Joints oVERVIEW
Thorne & Derrick stock and distribute the most extensive range of Cold Shrink & Heat Shrink Joints/Terminations for use with LV MV HV rail cables – stocked brands include 3M Cold Shrink, Pfisterer CONNEX, Nexans Euromold and Prysmian cable accessories.
Network Rail Approved – Railway Power Cables
Power supply cables with and without armouring for rail circuits including BS6724, BS6622, Trackfeeder cable, and the Network Rail specification NR/PS/ELP/00008 25kV Feeder Cable (44kV).
Network Rail Approved – Railway Overhead Line Cables
Railway overhead line wires and conductors including catenary wire, contact wire, Cockroach, Hornet and Centipede cables.
Network Rail Approved – Railway Signalling Cables
Network Rail approved signalling cable NR/PS/SIG/00005 Types A to E.
Network Rail Approved – Railway Telecoms Cables
Telecommunications cabling including Copper and Fibre trackside cables, Twin Datalink cables (PVC and LSZH) and Screening Conductors for rail applications.
LUL Approved – London Underground Cables
London Underground Approved cables includes LUL specific Trackfeeder, Rolling Stock, Signalling and Armoured Power cables, suitable for use in tunnels and underground locations across the LUL network.
Network Rail and LUL-Approved Rolling Stock Cables
A range including Rolling Stock Part 6 Types 1 to 9 and 11 to 13 cables for use on LUL-specific vehicles.
| SPS PART NUMBER | P.A.D.S CAT. NO | CABLE JOINT DESCRIPTION | CABLE JOINT STYLE |

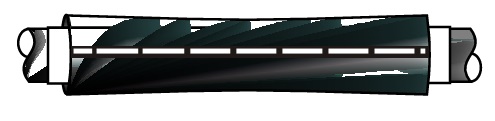

| SPS 744 | 54/15894 | SINGLE OR DOUBLE SHEATHED CCTV COAXIAL CABLE TYPE A&B |
 |
| SPS 745 | 54/35012 | URM 70 CAMERA CABLE TO TYPE A CCTV COAXIAL CABLE |
 |
| SPS 895 | 54/37139 | MOISTURE SHIELD EARTH BOND AND CLIP |
 |
| SPS 932 | 54/37140 | CAST RESIN CABLE SEALING CONE |
— |

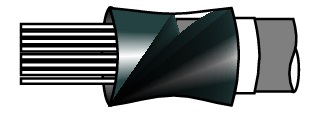

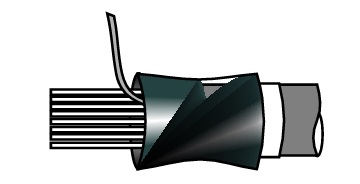

| SPS 936 | 54/37141 | 10-50 PAIR TERMINATING KIT WITH SHIELD BONDING KIT (PACK OF 5 KITS) |
 |

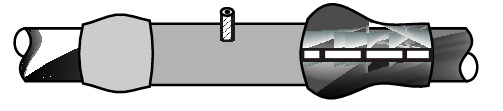

| SPS 949 | 54/37142 | SHEATH GAPPING KIT FOR CABLES WITH METALLIC SHEATH |
 |
| SPS 972 | 54/37143 | 2-10 PAIR TERMINATING KIT WITH SHIELD BONDING KIT (PACK OF 5 KITS) |
|
| SPS 973 | 54/37144 | 10-18mm DIA FIBRE OPTIC CABLE MOSITURE BARRIER KIT (PACK OF 10 KITS) |
 |
| SPS 353 | 54/37108 | WRAPAROUND SEALING KIT TO REPAIR LEAKING PUTTY WIPES ON PRESSURISED CLOSURES |
 |
| HEAT SHRINK JOINT CLOSURES FOR SEPARATE SCREENING CONDUCTOR CABLES | |||
| SPS 851 | 54/37126 | INLINE JOINT 150sqmm STR. AL. WITH CONNECTOR |
 |

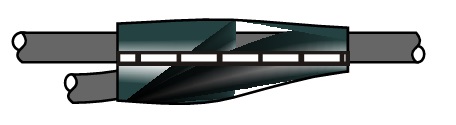

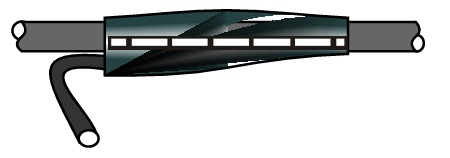

| SPS 852 | 54/37127 | SPUR JOINT 150sqmm STR. AL. TO 16sqmm STR. CU. WITH CONNECTOR |
 |
| SPS 853 | 54/37128 | SPUR JOINT 150mmsq STR. AL. TO 150sqmm STR. AL. WITH CONNECTOR |
 |
Rail Cable Accessories, Electrification & Installation Equipment
Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.
Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
