Cembre ND Mechanical Crimping Tools
Cembre ND Mechanical Crimping Tools

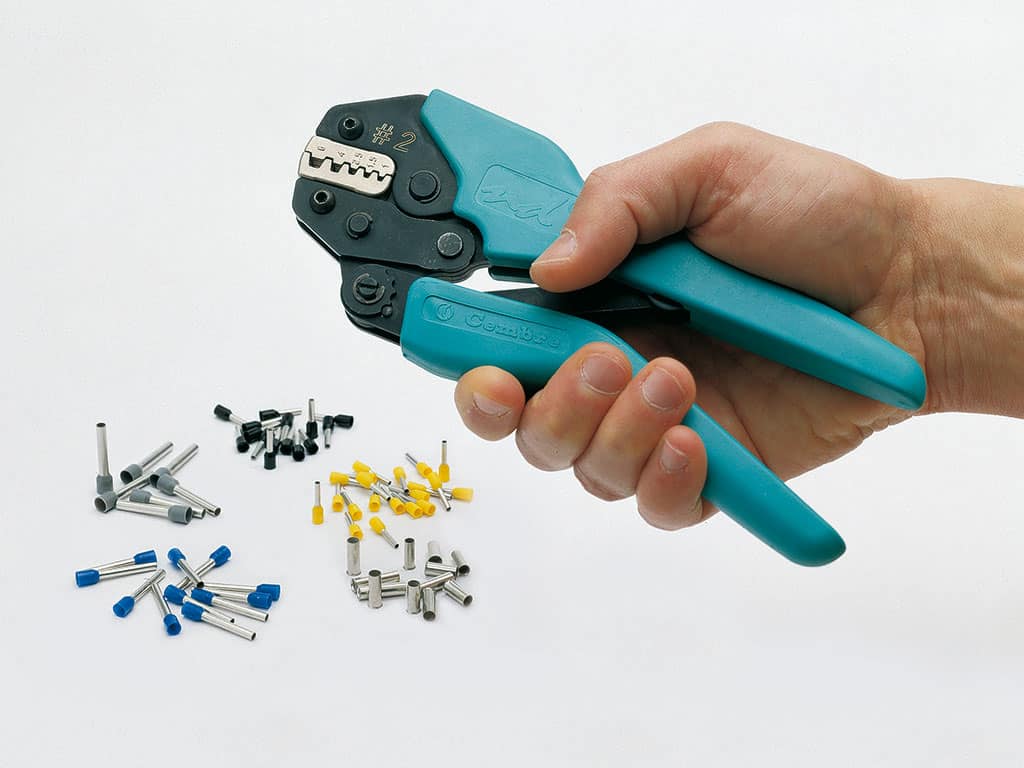

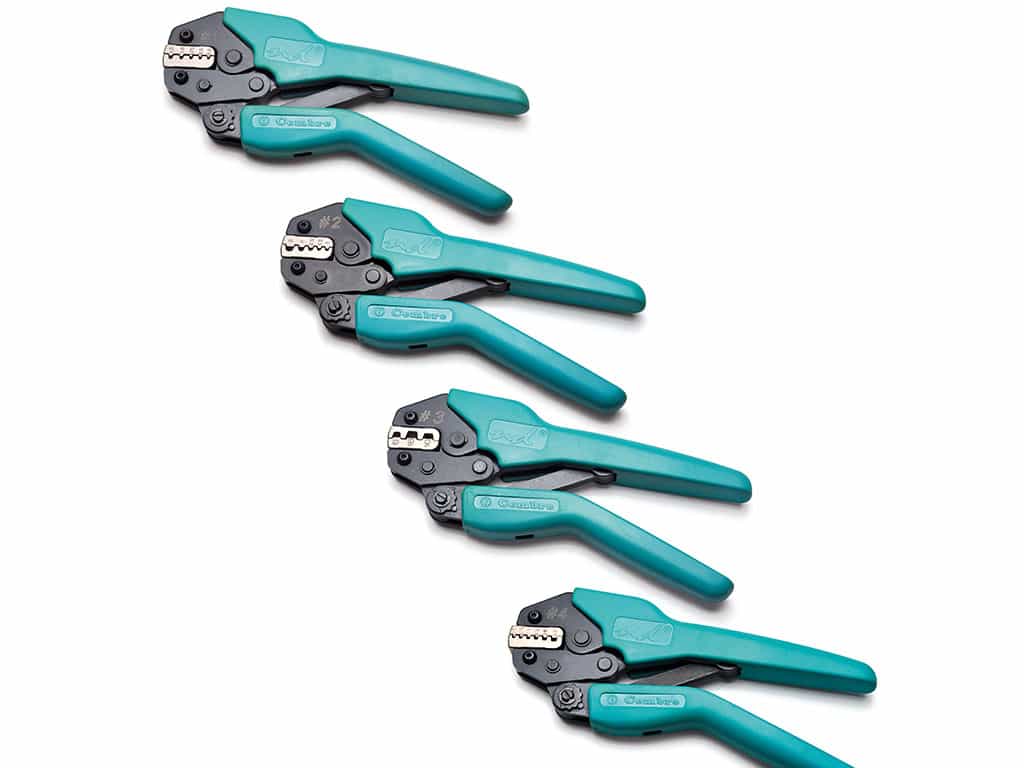

Cembre’s ND mechanical crimping tools are small and compact with ergonomically designed handles for ease of operation and a unique mechanism to reduce operator effort.
Constructed from high quality steel with plastic grips, Cembre’s ND mechanical crimping tools are reliable with a guaranteed consistent, crimping operation.
Cembre ND Mechanical Crimping Tools – Technical Specification
| Cembre Mechanical Crimping Tool Part Number | ND#1 | ND#2 | ND#3 | ND#4 |
| Crimping Range | 0.3-1.5sqmm | 1-6sqmm | 6-16sqmm | 0.5-4sqmm |
| Length (Closed Handles) | 190mm | |||
| Width (Closed Handles) | 72mm | |||
| Height | 21mm | |||
| Weight | 470g | |||
| Package Dimensions | 195 x 76 x 20mm | |||
➡ For Cembre electrical connections, see Cable Crimps, Lugs & Connectors
Contact T&D to discuss crimping cables at MV-HV, including 11kV-33kV, to ensure correct Cembre tool, lug/splice and die set selection – visit battery crimping tools for repetitive crimping of cables without strain injury or worker fatigue.
Full range of battery cable cutting tools also available.
➡ See Cable Jointing Tools for a complete range of LV-HV-HV Tools to enable outer sheath removal, insulation removal and screen stripping from power cables operating typically at 11kV, 33kV, 66kV, 132kV and up to 400kV.
Alroc Tools – Cable Jointing Tools (MV HV)
Cembre ND Mechanical Crimping ToolsDownload
