CW32 Cable Glands LSF LSOH – Prysmian Bicon 432LSF-56
CW32 Cable Glands LSF Kits
CW32 LSF Gland
Prysmian Bicon 432LSF-56 (CW32) CW LSF cable glands with 32mm entry thread enable cable termination of aluminium wire armoured low smoke zero halogen cables in indoor and outdoor applications – the CW32 LSF aluminium cable gland kit provides mechanical cable retention and electrical continuity via the wire armour locking mechanism for under armour diameters up to 26.2mm.
CW32 LSF cable gland termination suits AWA armoured BS6724 and BS7835 cables and they prevent the risk of bi-metallic corrosion when clamping aluminium armours.
CW32 LSF cable glands are the only industrial cable gland and designed for use with LSOH and fire performance cables with LUL approval – the glands are rated to IP66 with use of suitable sealing washer or thread sealant at gland interface.
CW32 Aluminium Cable Gland Kit
London Underground (LUL) Rail Cables, Glands & Cable Cleats – Low Smoke Zero Halogen
LSF Low Smoke Zero Halogen
Prysmian Bicon Technical Specification
- Manufacturer: Prysmian
- Brand: Bicon
- Cable Gland Material: Aluminium
- Cable Gland Size: CW32
- Quantity Per Kit: 1 Cable Gland
- Cable Type: SWA Steel Wire Armoured BS6724
- Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
- Under Armour Cable Diameter (A): 26.2mm Maximum
- Overall Cable Diameter (B): 23.5mm Minimum
- Overall Cable Diameter (B): 33.5mm Maximum
- Armour Wire Diameter: 1.6/2.0mm
- Entry Thread (D) : M32 x 1.5
- Thread Length (E) : 10mm
- Protrusion Length (F): 56mm
- Hexagon A/F (G): 47.3mm
- Hexagon A/C (H): 53.6mm
- Order Code: CW32 432LSF-56
- Industrial Application Also: Prysmian CW32 Cable Gland KA22-56
CW32 Cable Gland LSF Kit Contents: CW Gland, Aluminium Earth Tag, Aluminium Locknut and Low Smoke Zero Halogen Shroud (2 per kit up to and including 25mm size). CW32 available in brass (standard industrial cable version) and ATEX hazardous area certified type for flameproof and explosion proof cable termination.
Low Smoke Zero Halogen
LSF cable glands are also available for indoor cable termination of steel wire armoured fire performance cables – for terminating low smoke zero halogen unarmoured cables, please see A2 LSF cable glands.
Prysmian LSF Low Smoke Zero Halogen Cable Glands – NO PVC. No smoke, no fumes, no toxic gas. Safe cable terminations for Draka Saffire BS6724 armoured cables.
➡ See also Prysmian Cable Cleats for clamping, supporting and cleating LV-HV cables.
Gland kit order code: pRYSMIAN CW32 432LSF-56

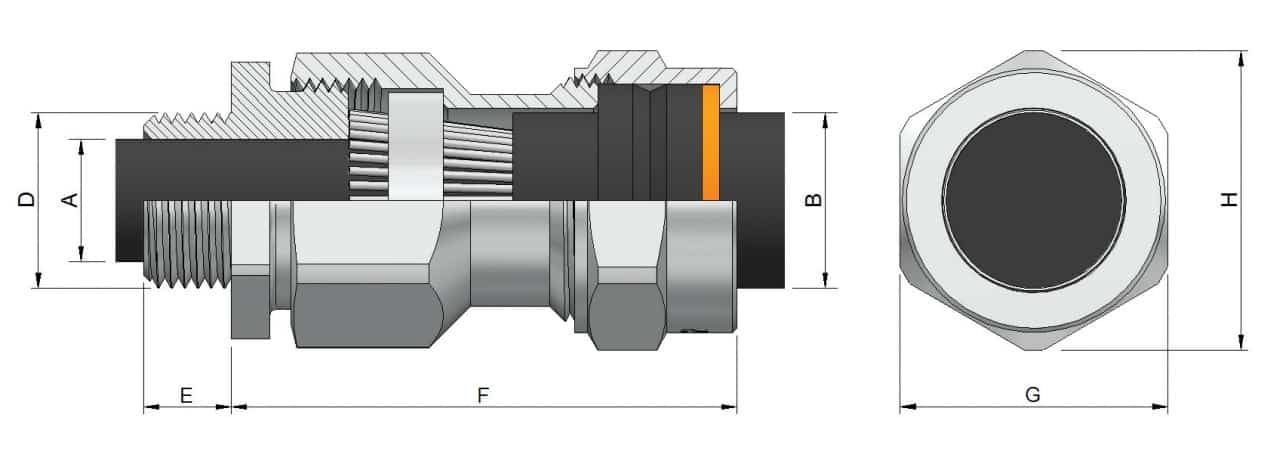

Prysmian Bicon CW (LUL) Aluminium Cable Gland Kits – Dimensions Illustration
Cable Glands & Terminations
Cable glands available in brass, aluminium, nickel plated or stainless steel for the termination of LV wire armoured, wire braided and unarmoured cables, including low smoke zero halogen cables in industrial non-hazardous areas.
Complete range of MV-HV Cable Terminations for the connection of medium/high voltage power cables to electrical equipment available.
See more MV HV: Cold Shrink Terminations 3M | Heat Shrink Terminations
To provide cable support to cable glands and terminations at LV Low Voltage, MV Medium Voltage or HV High Voltage, T&D distribute a complete range of cable cleats.
