Electrical Tapes | Protect Repair Joint Power Cables LV MV HV

Electrical Tapes

Protect Repair Joint Power Cables LV MV HV

Thorne & Derrick distribute Plymouth Rubber Tapes, a leading manufacturer of specialist electrical tapes engineered for reliability, durability, and performance in demanding environments. Designed to meet the rigorous requirements of LV (Low Voltage), MV (Medium Voltage), and HV (High Voltage) power cable systems – Plymouth Tapes provide robust solutions for cable jointing, splicing, sealing, insulating, and protecting cables distributing electrical power at 600V, 11kV, 33kV and 66kV.

Plymouth Electrical Tape solutions are widely used in renewable energy, utilities, oil & gas and heavy industry – the electrical tapes meet international standards and are proven in onshore, offshore and substation environments offering long-term reliability where failure is not an option.

Electrical Tapes

Electrical Tapes for Power Cable Applications

Cable Jointing & Cable Splicing: Reliable insulation and strain relief in cable joints across LV, MV, and HV electrical power and cable systems
Cable Protection & Sheath Repair: Effective cable sealing and mechanical protection for damaged outer sheaths
Moisture & Environmental Sealing: Exceptional performance in wet or underground environments – high performance for trench, substation and cable management applications.
Electrical Insulation & Phase Identification: Strong dielectric strength and colour-coded electrical tape options

Insulating Rubber Tapes & Mastics

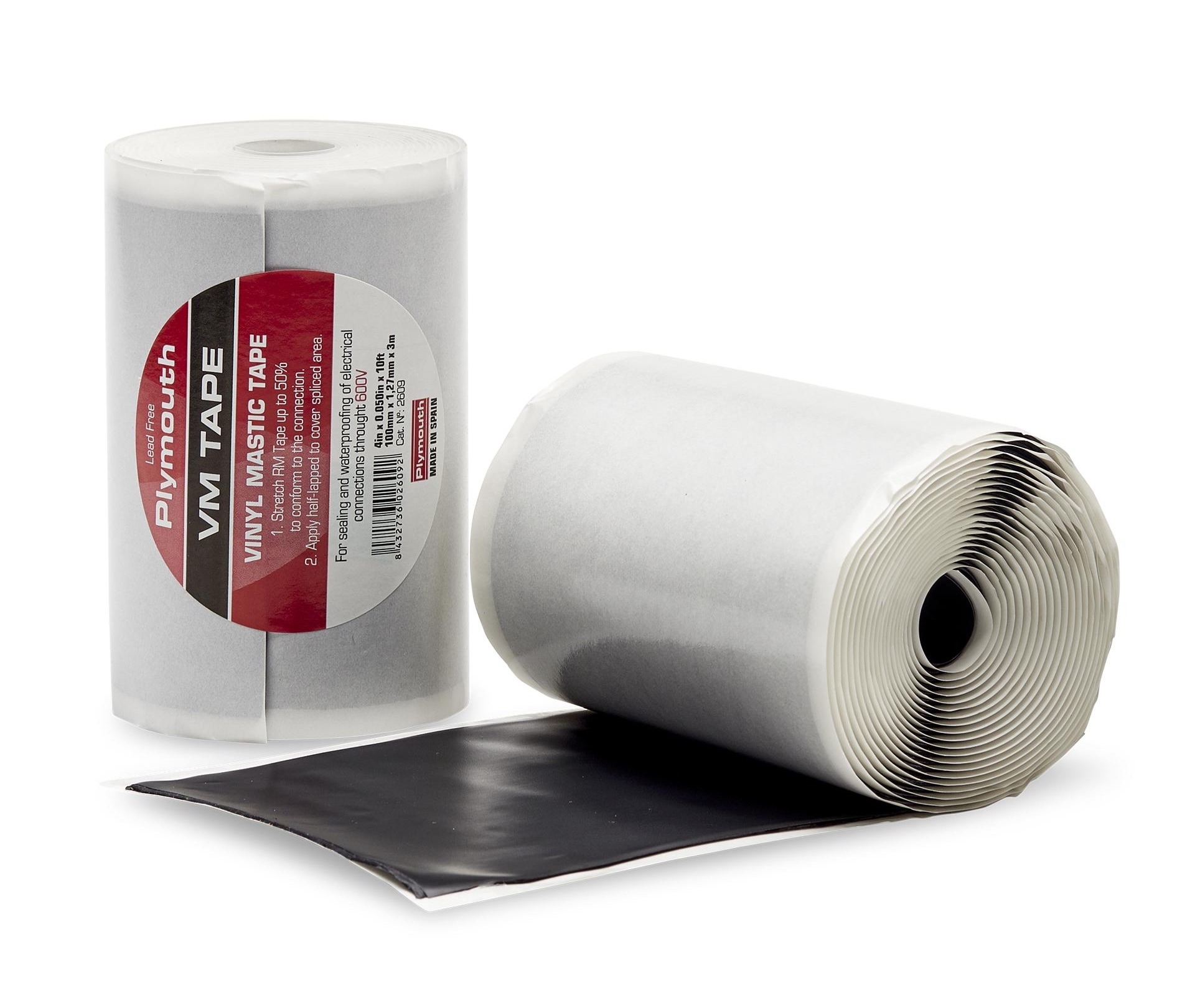

	VM – Vinyl Mastic Tape CODE: Plymouth 2609 Use for exterior protection and water sealing of connections, cables and joints in solar rooftop installations, both residential and industrial. Self-bonding mastic tape insulation layer on all weather vinyl backing for UV protection Standard Tape Size: 102 mm x 3 m (4″ x 10′) Operating temperature: Continuous: 90ºC (194ºF) Overload: 130ºC (266ºF) Tape Thickness: 1.3mm (50 mil)

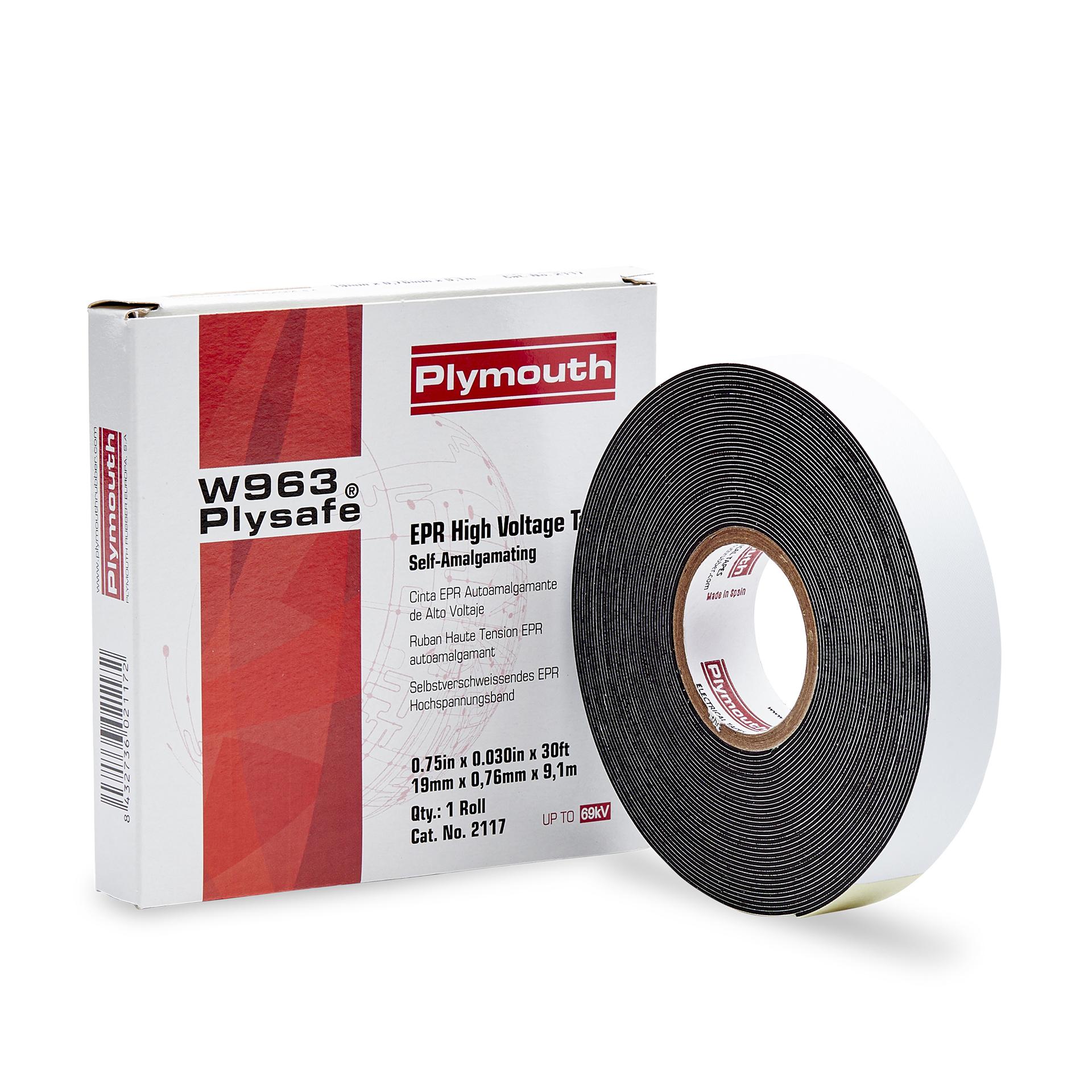

W963 Plysafe^@ High Voltage Rubber Insulating Tape CODE: Plymouth 2117 or 2134 Use for insulating high voltage splices up to 69kV. Ideal for utility-scale solar and wind farm cables EPR self amalgamating tape compatible with all extruded dielectric power cables Standard Tape Sizes: 19 mm x 9.1 m (3/4″ x 30′) or 38 mm x 9.1 m (1 1/2″ x 30′) Operating temperature: Continuous: 90ºC (194ºF) Overload: 130ºC (266ºF) Tape Thickness: 0.76 mm (30 mil) self-fusing rubber tape

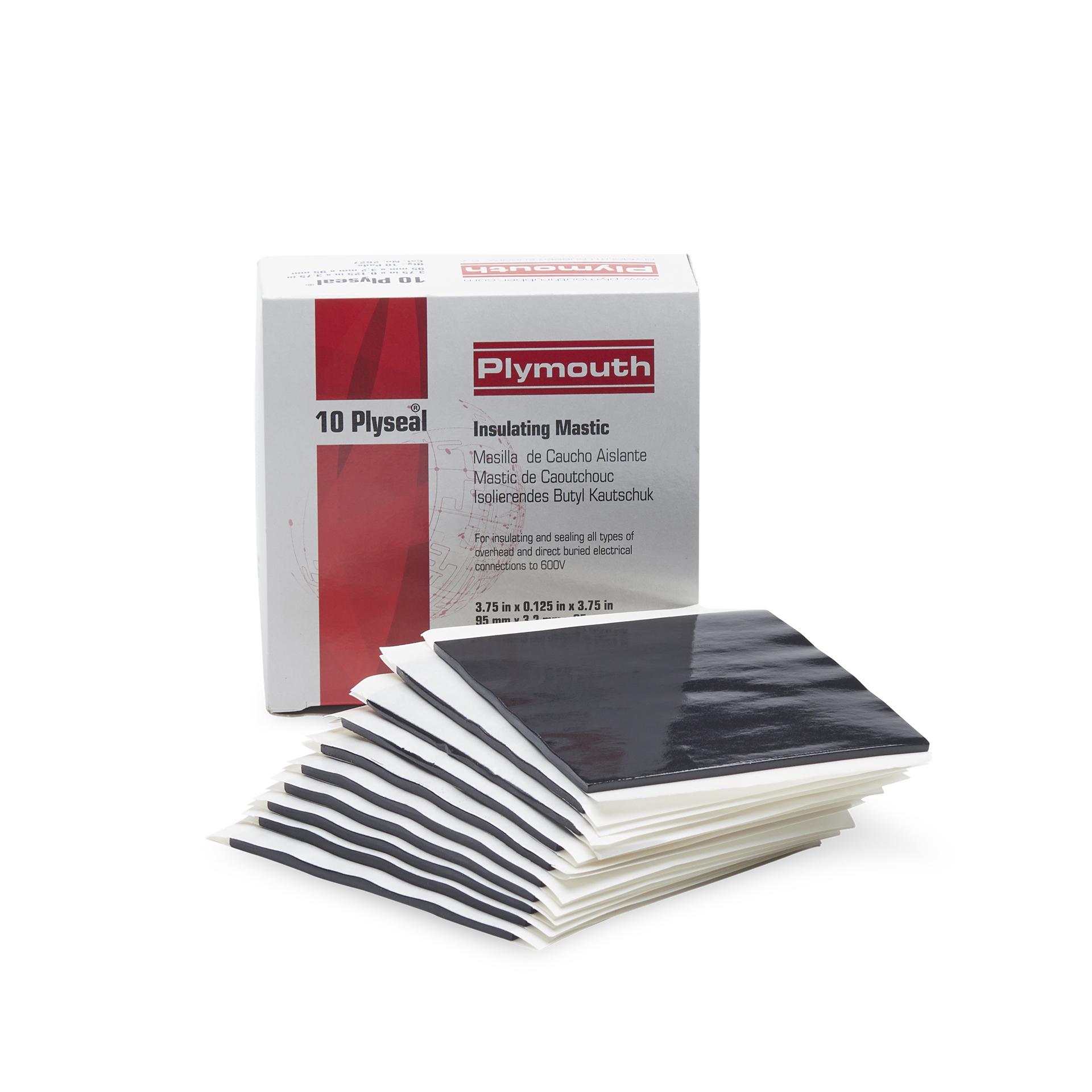

	10 Plyseal^@ Insulating Mastic Tape CODE: Plymouth 2626 or 2627 Use for insulating and sealing overhead and underground LV cable joints and connections. Ideal for utility-scale solar and wind farm cables. Self-amalgamating butyl mastic that provides high adhesion to metals and polymeric shields (jackets). Void-free insulations for build up to 5kV. Standard Tape Sizes: 95 mm x 3 m (4″ x 10′) or 95 mm x 95mm (3 3/4″ x 3 3/4″) Operating temperature: Continuous: 90ºC (194ºF) Overload: 130ºC (266ºF) Tape Thickness: 3.2mm (125 mil) self-amalgamating mastic

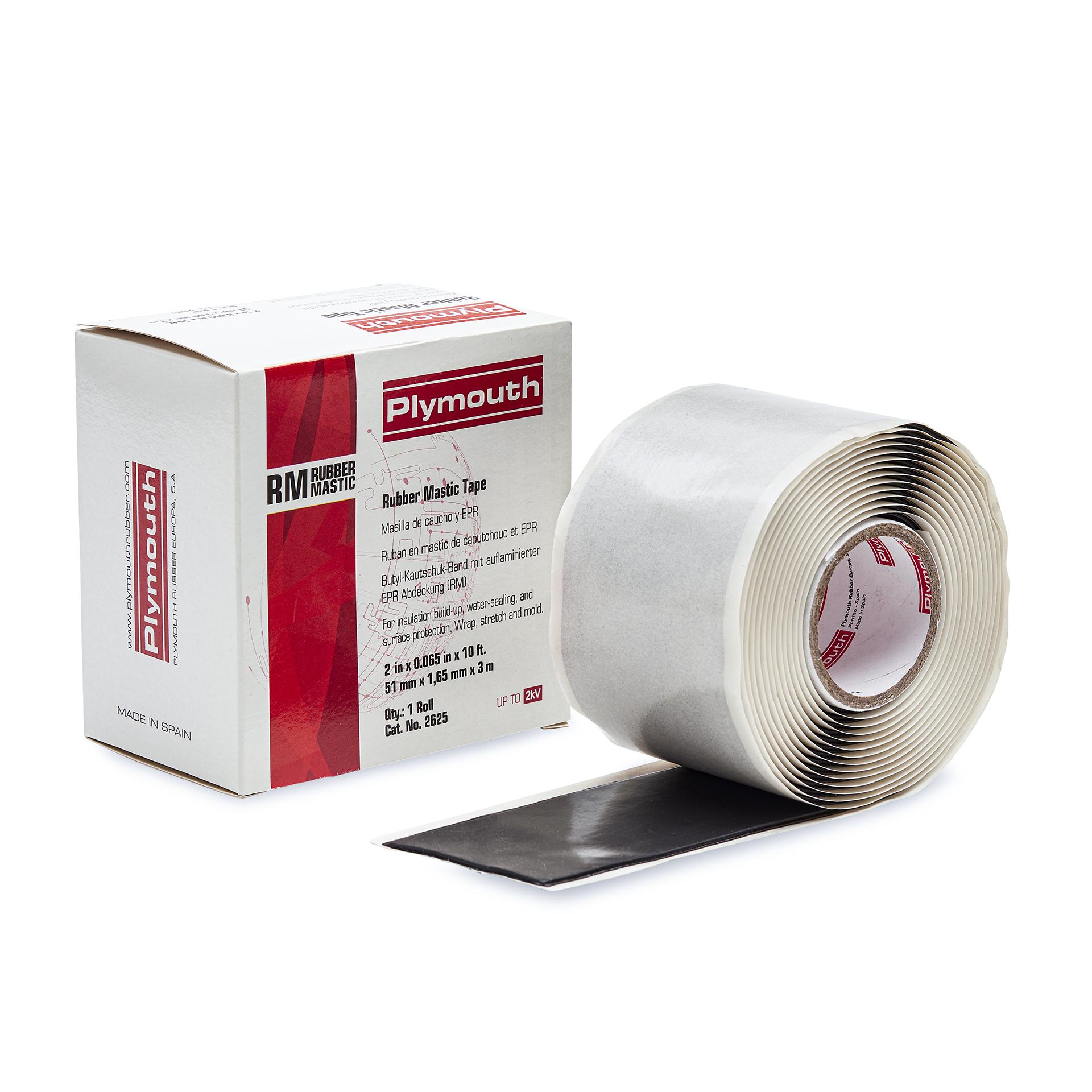

RM Rubber Mastic Electrical Tape CODE: Plymouth 2619 or 2625 Use for insulating and sealing medium voltage cable joints and terminations up to 35kV. Ideal for utility scale solar and wind farms Self-bonding mastic insulation layer on EPR backing Standard Tape Sizes: 38 mm x 1.52 mm x 1.8 m (1 1/2″ x 0.06″ x 6′) or 51 mm x 1.78 mm x 2.2 m (2″ x 0.07″ x 7.2′) Operating temperature: Continuous: 90ºC (194ºF) Overload: 130ºC (266ºF) Tape Thickness: 1.65 mm (65 mil)

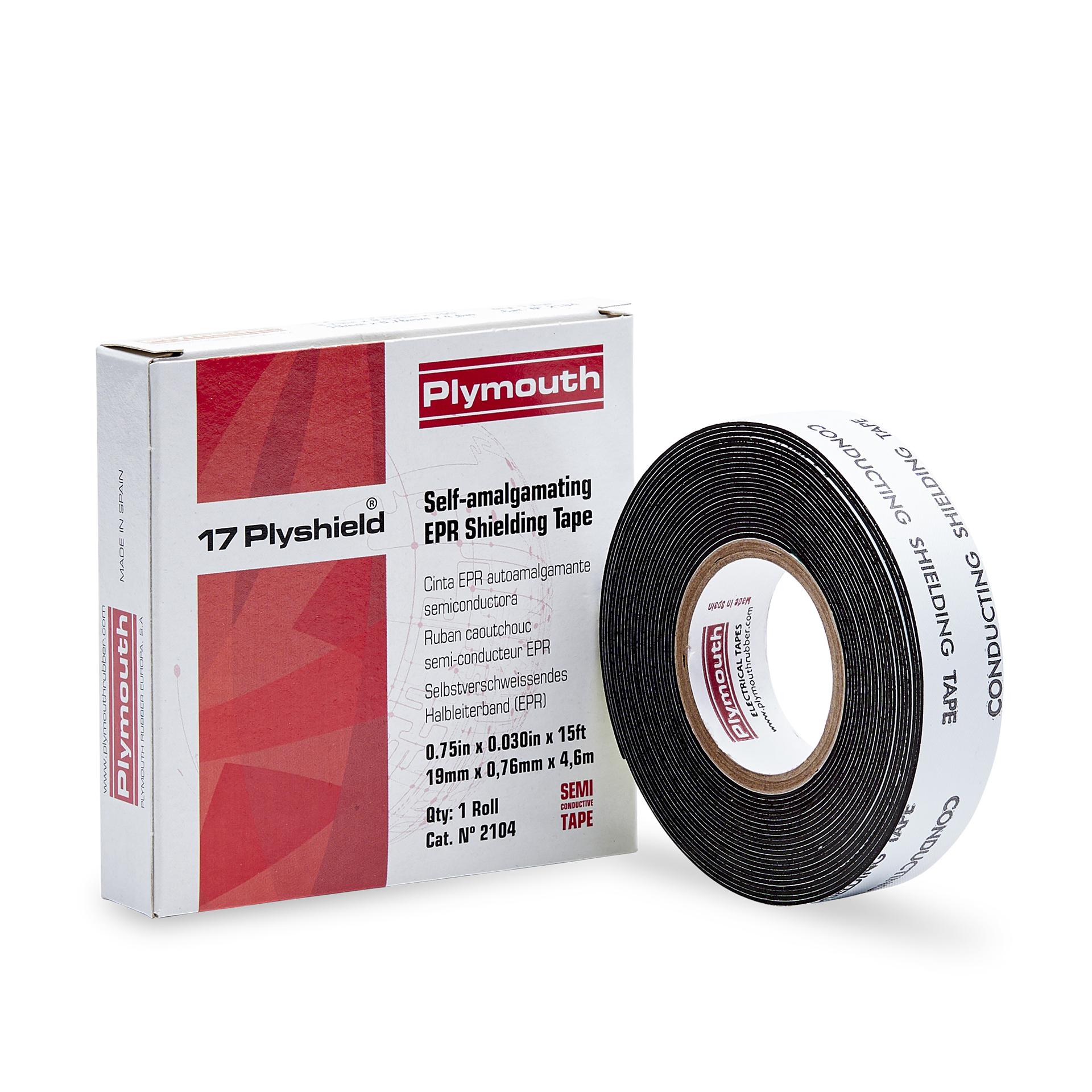

	17 Plyshield^@ EPR Semi-conducting Tape CODE: Plymouth 2104 Use to provide electrostatic shielding on medium and high voltage joints EPR self-amalgamating conducting tape, compatible with all extruded dielectric power cables Standard Tape Sizes: 19 mm x 4.6 m or (3/4″ x 15′) Standard elasticity for high ambient temperatures, up to 130ºC (266ºF) Tape Thickness: 0.76 mm (30 mil)

Vinyl Electrical Tapes

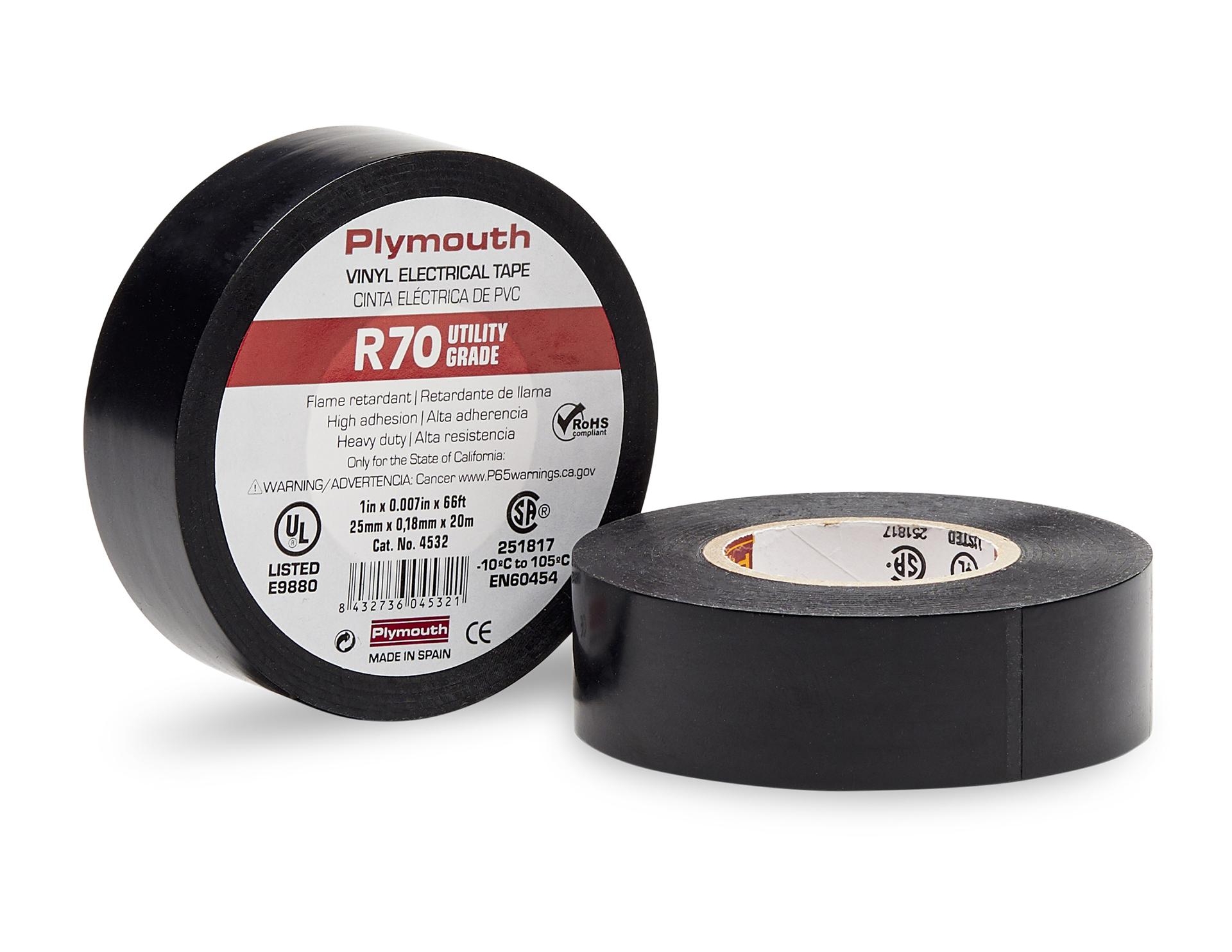

R70 UV Resistance for exceptional outdoor performance
CODE: Plymouth 4581

Use for cable protection in solar rooftop installations, both residential and industrial
Provides UV, weather and mechanical resistance. Flame retardant
High adhesion even at low temperatures
Valid as primary insulation for splices 600V
Standard Tape Size: 25mm x 20m (1″ x 66′)
Ambient temperatures -10ºC -105ºC (14ºF-221ºF)
Tape Thickness: 0.18mm (7.0 mil)

R100 Extreme Resistance PVC Electrical Tape
CODE: Plymouth 4581 or 4582

Use for abrasion protection in harsh environments for any renewable energy cable
Extreme mechanical strength: ideal abrasion protection
Provides UV, weather and mechanical resistance. Flame retardant electrical tape
Standard Tape Sizes: 38mm x 33m (1 1/2″ x 108′)
High adhesion tape even at low temperatures
Ambient temperature range: -10ºC -105ºC (14ºF-221ºF)
Extra thickness: 0.25mm (10.0mil)

Cable Jacket Repair & Protection

Plyjack A60/A70 Abrasion Cable Jacket Repair Tapes
CODE: Plymouth 1510 or 1502

Use for LV HV cable jacket repair and protection against abrasion and moisture
Suitable for trailing and direct buried cables in all types of renewable energy installations
Heavy duty rubber laminate compound that ensures perfect sealing against water and environmental hazards
UV resistant. Self-extinguishing electric tape
Standard Tape Sizes: 38mm x 1.52mm x 1.8m (1 1/2″ x 0.06″ x 6′) or 51mm x 1.78mmm x 2.2m (2″ x 0.07″ x 7.2′)

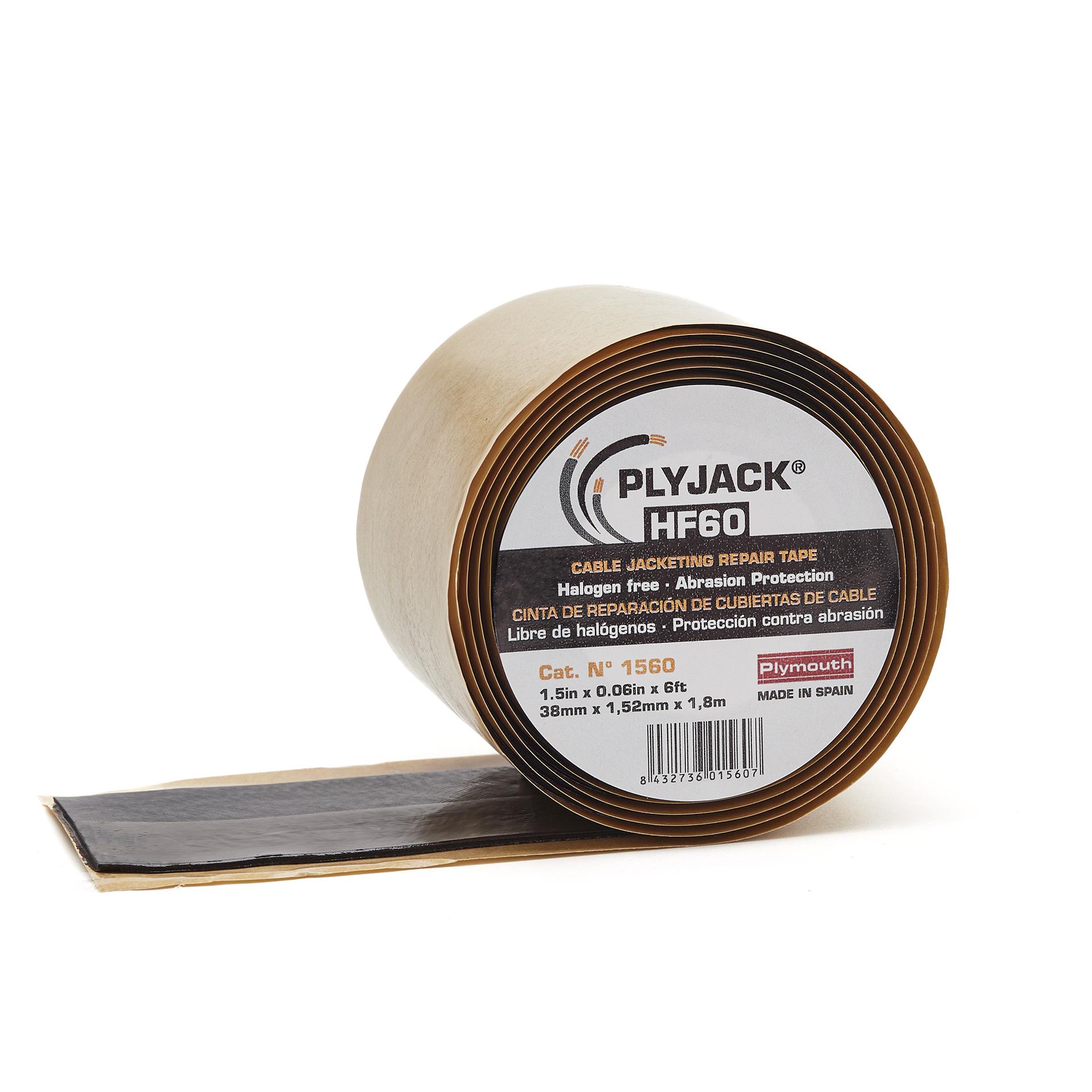

Plyjack H60/H70 Halogen Free Cable Jacket Repair Tapes
CODE: Plymouth 1560 or 1570

Use for LV HV cable jacket repair and protection against abrasion and moisture in halogen free cables
Suitable for trailing and direct buried cables in all types of renewable energy installations
Heavy duty rubber laminate compound that ensures perfect sealing against water and environmental hazards
Halogen free cable repair tapes
Standard Tape Sizes: 38mm x 1.52mm x 1.8m (1 1/2″ x 0.06″ x 6′) or 51mm x 1.78mmm x 2.2m (2″ x 0.07″ x 7.2′)
