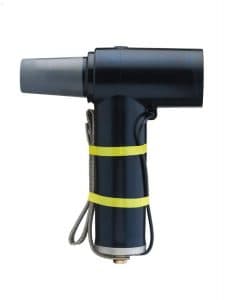

Euromold 400PB -10SA Surge Arrester 11kV 24kV
Euromold 400PB is a screened surge arrester designed to protect medium voltage components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching – specified to terminate and connect medium/high voltage cables in the following voltage classes:
- 6/10 (12kV)
- 6.35/11 (12kV)
- 8.7/15 (17.5kV)
- 12/20 (24kV)
- 12.7/22 (24kV)
- 18/30 (36) kV
- 19/33 (36) kV
- 20.8/36 (42) kV
Euromold 400PB plug-in surge arrester can be used with Euromold 400TB and 440TB tee connectors – all suitable for use with Interface C Symmetrical type bushings on SF6 gas-insulated switchgear.
This surge arrester is a metal oxide varistor surge arrester in an elbow configuration that is tested for AC withstand and partial discharge prior to leaving the factory.
Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type C interfaces.
- Manufacturer – Nexans Euromold
- MV HV Equipment Bushing Connector – Interface C
- Maximum Operating Current – 630A (Amps)
- Voltage Classes – 12kV 24kV 36kV 42kV Maximum
- Terminate & Connect Cables – Polymeric XLPE EPR
- Dimensions Min-Max– 270-510mm
- Applications – MV HV Switchgear, Transformers, Motors
➡ See complete range of Nexans Euromold Connectors
EUROMOLD 400PB Specification
Euromold surge arrester type |
Nominal discharge current In (kA) | Rated voltage Ur (kV) |
Max. continuous operating voltage Uc (kV) |
Dimensions (mm) |
|
L1 | L2 | ||||
400PB-10SA-15L | 10 | 15 | 12.0 | 270 | 310 |
400PB-10SA-18L | 10 | 18 | 14.4 | 270 | 310 |
400PB-10SA-22L | 10 | 22 | 17.6 | 370 | 410 |
400PB-10SA-24L | 10 | 24 | 19.2 | 370 | 410 |
400PB-10SA-30L | 10 | 30 | 24.0 | 370 | 410 |
400PB-10SA-6N | 10 | 6 | 4.8 | 270 | 310 |
400PB-10SA-9N | 10 | 9 | 7.2 | 270 | 310 |
400PB-10SA-12N | 10 | 12 | 9.6 | 270 | 310 |
400PB-10SA-15N | 10 | 15 | 12.0 | 270 | 310 |
400PB-10SA-18N | 10 | 18 | 14.4 | 270 | 310 |
400PB-10SA-22N | 10 | 22 | 17.6 | 270 | 310 |
400PB-10SA-24N | 10 | 24 | 19.2 | 370 | 410 |
400PB-10SA-30N | 10 | 30 | 24.0 | 370 | 410 |
400PB-10SA-33N | 10 | 33 | 26.4 | 370 | 410 |
400PB-10SA-36N | 10 | 36 | 28.8 | 370 | 410 |
400PB-10SA-45N | 10 | 45 | 36.0 | 470 | 510 |
400PB-10SA-51N | 10 | 51 | 40.8 | 470 | 510 |
Surge arrester comprising:
- Conductive EPDM insert
- Conductive EPDM jacket
- Insulating EPDM layer moulded between the insert and the jacket
- Contact rod
- Earthing lead
- Earth connection
- Steel cap
- Metal oxide valve elements
- Type C – 630 A interface as described by CENELEC EN 50180 and 50181
Euromold 400PB Selection Table
Typical Applications & Dimensions
SELECTION TABLE FOR 11kv 33kv surge arresters
Euromold surge arrester type | Steep current residual voltage @ 10 kA [1/20 µs] (kV) | Lightning current residual voltage [8/20 µs] (kV) | Switching impulse residual voltage [36/90 µs] (kV) | High current impulse withstand (kA) |
|||
@ 5 kA | @ 10 kA | @ 20 kA | @ 125 A | @ 500 A | |||
400PB-10SA-15L | 47.1 | 38.9 | 42.3 | 47.4 | 29.8 | 31.8 | 100 |
400PB-10SA-18L | 56.5 | 46.7 | 50.8 | 56.9 | 35.8 | 38.2 | 100 |
400PB-10SA-22L | 69.2 | 57.1 | 62.2 | 69.7 | 43.8 | 46.7 | 100 |
400PB-10SA-24L | 75.2 | 62.1 | 67.6 | 75.8 | 47.7 | 50.8 | 100 |
400PB-10SA-30L | 94.0 | 77.6 | 84.5 | 94.7 | 59.6 | 63.5 | 100 |
400PB-10SA-6N | 20.4 | 16.8 | 18.3 | 20.5 | 12.9 | 13.7 | 100 |
400PB-10SA-9N | 28.5 | 23.5 | 25.6 | 28.7 | 18.0 | 19.2 | 100 |
400PB-10SA-12N | 38.0 | 31.4 | 34.2 | 38.3 | 24.1 | 25.7 | 100 |
400PB-10SA-15N | 48.1 | 39.7 | 43.2 | 48.4 | 30.5 | 32.5 | 100 |
400PB-10SA-18N | 58.1 | 48.0 | 52.2 | 58.5 | 36.8 | 39.2 | 100 |
400PB-10SA-22N | 70.1 | 57.9 | 63.0 | 70.6 | 44.4 | 47.3 | 100 |
400PB-10SA-24N | 77.0 | 63.6 | 69.2 | 77.6 | 48.8 | 52.0 | 100 |
400PB-10SA-30N | 97.0 | 80.1 | 87.2 | 97.7 | 61.5 | 65.5 | 100 |
400PB-10SA-33N | 103.4 | 85.4 | 93.0 | 104.2 | 65.6 | 69.9 | 100 |
400PB-10SA-36N | 115.9 | 95.7 | 104.2 | 116.8 | 73.5 | 78.3 | 100 |
400PB-10SA-45N | 144.1 | 119.0 | 129.5 | 145.1 | 91.3 | 97.3 | 100 |
400PB-10SA-51N | 166.0 | 137.1 | 149.2 | 167.2 | 105.2 | 112.1 | 100 |
WHY INSTALL SURGE ARRESTERS?
Surge arresters provide primary circuit protection to MV-HV cable and power systems against high voltage surges caused by atmospheric (lightning) and switching over voltages. Nexans medium and high voltage surge arresters protect substation switchgear (both air and SF6 gas insulated type), transformers, cables, overhead transmission lines and capacitors. Protection levels include 6.6kV, 11kV and 33kV (up to 42kV) – call to discuss your requirements.
