Euromold 400SFR-P Bushing 11kV 33kV

Euromold 400SFR-P

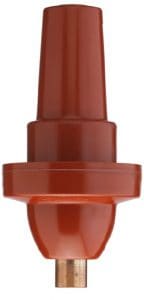

Euromold 400SFR-P is a MV-HV bushing or use in equipment insulated with SF6 gas is specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)

Euromold 400SFR-P bushings can be supplied as a tee connector (400TE) and an elbow connector (400LR) – all suitable for use with Interface B type bushings on SF6 gas-insulated switchgear (MV-HV)

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type B interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface B
  • Maximum Operating Current – 400A (Amps)
  • Voltage Classes – 12kV 24kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 400SFR-P Specification

Euromold equipment
bushing
type
Voltage
Um
(kV)
Current Ir
(A)
400SFR-P 12 250
K400SFR-P 24 250

To order the equipment bushing for medium/high voltage gas insulated switchgear, simply specify the type.

Euromold 400SFR-P - Design

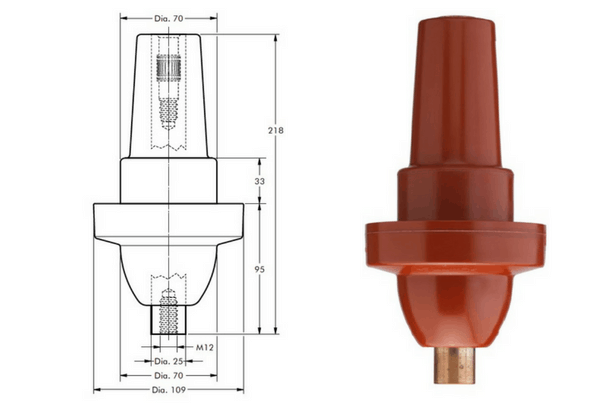

Euromold 400SFR-P – Design

BUSHING CONSTRUCTION CHARACTERISTICS
Technology Slip-0n
Connector shape Bushing
Connector type Male
Conductor material Copper or Aluminum
DIMENSIONAL CHARACTERISTICS
Conductor cross-section, range 0 .. 0mm²
ELECTRICAL CHARACTERISTICS
Maximal partial discharge at 2Uo 10pC
Dielectric withstand voltage, 50Hz 1mn 55kV
Impulse voltage 125kV
Rated Voltage Uo/U (Um) 12 / 20 (24) kV
USAGE CHARACTERISTICS
Interface B (400 A)

EUROMOLD 400SFR-P FIXINGS FOR BUSHINGS

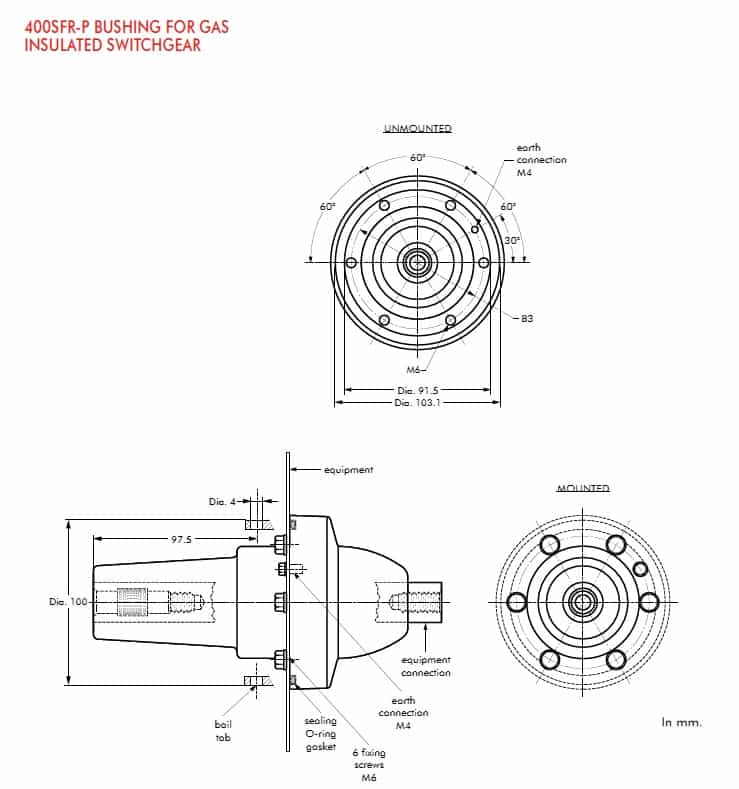

Euromold 400SFR-P Fixing For Equipment Bushings
