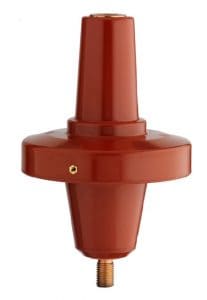

Euromold 400AR-8 Bushing 11kV 33kV

Euromold 400AR-8

BUSHINGS FOR OIL FILLED TRANSFORMERS

UP TO 33KV | Interface B

11kV 33kV MV HV Bushings | Suit Interfaces A B C D E F | Transformers & Switchgear | Large UK Stocks

Euromold 400AR-8 is an MV-HV Bushing for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors and is specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)

Euromold 400AR-8 bushings can be supplied as a tee connector (400TE) and an elbow connector (400LR) – all suitable for use with Interface B type bushings on SF6 gas-insulated medium or high voltage switchgear up to 33kV.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type B interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface B
  • Maximum Operating Current – 250A (Amps)
  • Voltage Classes – 12kV 24kV 36kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 400AR-8 Specification

Euromold equipment
bushing
type		 Voltage
Um
(kV)		 Current Ir
(A)
400AR-8 12 250
K400AR-8 24 250
M400AR-8 36 250

To order the equipment transformer for switchgear bushing, specify the type. The MV-HV bushings can be supplied with an earth jumper (/J). E.g. M400AR-8/J.

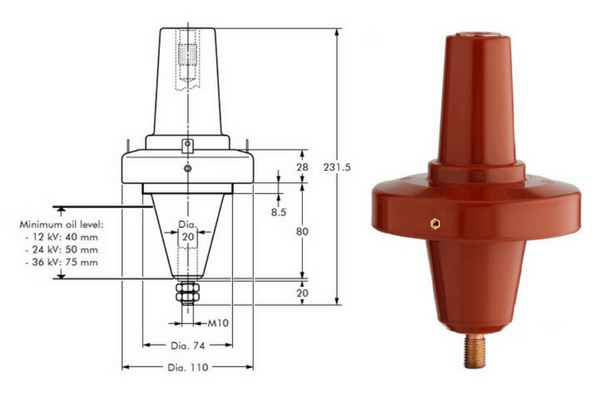

Euromold 400AR-8 - Design

Euromold 400AR-8 – Design

BUSHING CONSTRUCTION CHARACTERISTICS
Technology Slip-0n
Connector shape Bushing
Connector type Male
Conductor material Copper or Aluminum
DIMENSIONAL CHARACTERISTICS
Conductor cross-section, range 0 .. 0mm²
ELECTRICAL CHARACTERISTICS
Maximal partial discharge at 2Uo 10pC
Dielectric withstand voltage, 50Hz 1mn 81kV
Impulse voltage 170kV
Rated Voltage Uo/U (Um) 18 / 30 (36) kV
USAGE CHARACTERISTICS
Interface B (400 A)

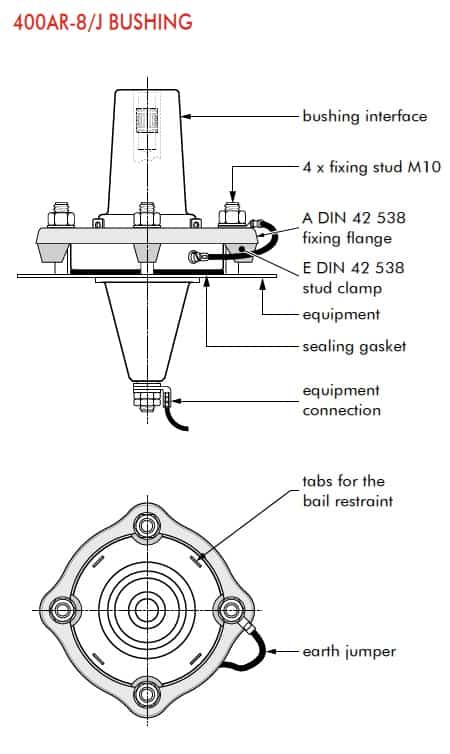

EUROMOLD 400AR-8 FIXINGS FOR BUSHINGS

Euromold 400AR-8 Fixing For Equipment Bushings

Overview of Medium Voltage Bushings for Switchgear & Transformers

  • 180AR-1 – Interface A1 Equipment Bushing
  • 180AR-2 – Interface A1 Equipment Bushing
  • 180AR-3 – Interface A1 Equipment Bushing
  • 180A-24P-O – Interface A1 In-air Bushing
  • 400T1 – Interface B2 Equipment Bushing
  • 400AR-1 – Interface B2 Equipment Bushing
  • 400AR-2 – Interface B2 Equipment Bushing
  • 400AR-8 – Interface B1 Equipment Bushing
  • 400SFR-P – Interface B2 Equipment Bushing
  • 400AR-3 – Interface C1 Equipment Bushing
  • 400AR-4 – Interface C2 Equipment Bushing
  • 400AR-5 – Interface C2 Equipment Bushing
  • 400AR-6 – Interface C1 Equipment Bushing
  • 400SFR-B – Interface C2 Equipment Bushing
  • 400A-24B – Interface C1 In-air Bushing
  • 670AR-2 – Interface D2 Equipment Bushing
  • 900AR-1 – Interface F3 Equipment Bushing
  • 900AR-2 – Interface F2 Equipment Bushing
  • 900AR-3 – Interface F1 Equipment Bushing
  • 900AR-4 – Interface F1 Equipment Bushing
  • 900AR-7 – Interface F1 Equipment Bushing
  • Download MV HV Bushing Brochure
