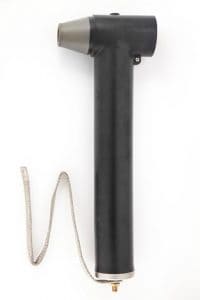

Euromold 800SA Surge Arrester 11kV 33kV 42kV

Euromold 800SA Surge Arrester 11kV 33kV 42kV

Euromold 800SA

Medium & High Voltage Surge Arresters | MV HV

Euromold 800SA is a surge arrester (11kV-42kV) specified to protect MV-HV cables terminated into substations and connecting medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 20.8/36 (42) kV

Euromold 800SA surge arrester can be supplied with straight connector (450SR) or a tee connector (480TB, 484TB or 489TB)  or a coupling connector (800PB, 804PB or 809PB) – all suitable for use with Interface C Compact type bushings on SF6 gas-insulated switchgear.

Surge arrester designed to protect 12, 24, 36 and 42 kV class components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching.

This surge arrester is a metal oxide varistor surge arrester in an elbow configuration that is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type C Compact interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Surge Arrester – Interface C Compact
  • Nominal Discharge Current – 10A (Amps)
  • Voltage Classes – 12kV 24kV 36kV 42kV Maximum
  • Surge Arrester Suits – 11kV 12kV 24kV 33kV 42kV Polymeric XLPE EPR Cables
  • High Current Impulse Withstand – 100kA
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 800SA Specification

Euromold 800SA Surge Arrester 11kV 33kV 42kV - Design

Euromold 800SA Surge Arrester – Design

Surge arrester comprising:

Surge Arresters MV HV

Surge Arresters MV HV

  1. Interface designed to fit the 484TB and 489TB tee connector.
  2. Conductive EPDM insert.
  3. Conductive EPDM jacket.
  4. Insulating EPDM layer moulded between the insert and the jacket.
  5. Receptacle for contact rod.
  6. Metal oxide valve elements.
  7. Steel cap.
  8. Earth connection.
  9. Earth lead.

11kV 33kV 42kV Surge Arresters

To order the correct surge arrester for 11kV to 42kV power distribution systems please refer to the information below. Surge arresters provide lightning protection for MV-HV power systems installed within gas insulated substations operating at 11kV-42kV.

SELECTION TABLE FOR 11kv 42kv surge arresters

Euromold surge arrester Nominal discharge current Rated voltage Ur Max continuous operating voltage Steep current residual voltage @ 10 kA Lightning current residual voltage [8/20 µs] (kV) Switching impulse residual voltage [36/90 µs] (kV) High current
impulse
withstand
type In (kA) (kV) Uc (kV) [1/20 µs] (kV) @ 5kA @ 10kA @ 20kA @ 125A @ 500A (kA)
800SA-10-6N 10 6 4.8 20.4 16.8 18.3 20.5 12.9 13.7 100
800SA-10-9N 10 9 7.2 28.5 23.5 25.6 28.7 18.0 19.2 100
800SA-10-12N 10 12 9.6 38.0 31.4 34.2 38.3 24.1 25.7 100
800SA-10-15N 10 15 12.0 48.1 39.7 43.2 48.4 30.5 32.5 100
800SA-10-18N 10 18 14.4 58.1 48.0 52.2 58.5 36.8 39.2 100
800SA-10-22N 10 22 17.6 70.1 57.9 63.0 70.6 44.4 47.3 100
800SA-10-24N 10 24 19.2 77.0 63.6 69.2 77.6 48.8 52.0 100
800SA-10-30N 10 30 24.0 97.0 80.1 87.2 97.7 61.5 65.5 100
800SA-10-33N 10 33 26.4 103.4 85.4 93.0 104.2 65.6 69.9 100
800SA-10-36N 10 36 28.8 115.9 95.7 104.2 116.8 73.5 78.3 100
800SA-10-45N 10 45 36.0 144.1 119.0 129.5 145.1 91.3 97.3 100
800SA-10-51N 10 51 40.8 166.0 137.1 149.2 167.2 105.2 112.1 100
Euromold 800SA Surge Arrester - Typical Application & Dimensions

Euromold 800SA Surge Arrester – Typical Application & Dimensions

Why Install Surge Arresters?

Surge arresters provide primary circuit protection to MV-HV cable and power systems against high voltage surges caused by atmospheric (lightning) and switching over voltages. Nexans medium and high voltage surge arresters protect substation switchgear (both air and SF6 gas insulated type), transformers, cables, overhead transmission lines and capacitors. Protection levels include 6.6kV, 11kV and 33kV (up to 42kV) – call to discuss your requirements.
