Flexible Tail Cable & Data Link Cable Joint Kits
Thorne & Derrick – Approved Specialist Distributors To The Rail Industry | LV MV HV
Safe, Reliable & Compliant Cable Accessories for Substation, Trackside & OHL Power Supply | 600V to 66kV
The below table features all flexible tail cable joint kits complete with crimp connectors using heat shrink and including SPS part numbers, PADS Network Rail approvals, cable joint description and types.
Thorne & Derrick stock and distribute the most extensive range of LV HV Cable Jointing, Termination & Installation Equipment using cold shrink, heat shrink or EPDM rubber technologies for cable connections and installations at LV, 11kV, 25kV, 33kV up to 72.5kV.
| SPS PART NUMBER | P.A.D.S CAT. NO | JOINT DESCRIPTION | CABLE TYPES |
| SPS 111 | 54/36103 | CABLE JOINT KIT FOR 4 CORE 2.5sqmm TYPE C2 TAIL CABLE |
1×6/120141Â Â Â Â Â Â Â Â Â 1×6/12041 |

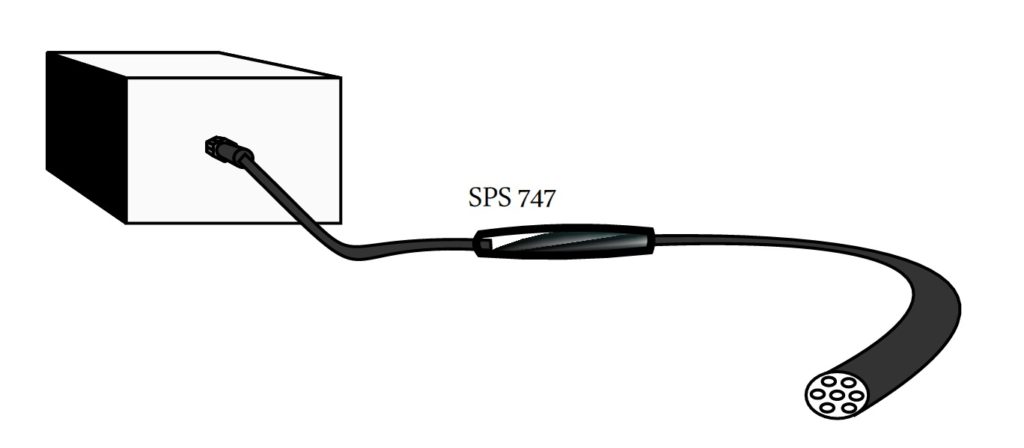

| SPS 747 | 54/37125 | CABLE JOINT KIT FOR 7-16 CORE 2.5sqmm TYPE C2 TAIL CABLE |
1×6/120142Â Â Â Â Â Â Â Â Â 1×6/120142 1×6/120143Â Â Â Â Â Â Â Â Â 1×6/120143 1×6/120144Â Â Â Â Â Â Â Â Â 1×6/120144 1×6/120145Â Â Â Â Â Â Â Â Â 1×6/120145 |
| SPS 944 | 54/37114 | CABLE JOINT KIT FOR 2 CORE 1.5sqmm POINT HEATER CABLE |
1×6/120081Â Â Â Â Â Â Â Â 1×6/120081 |
Data Link Cable Joint Kits
The below table features all data link cable joint kits (screened and unscreened) including SPS part numbers, PADS Network Rail approvals, cable joint description and style.
| SPS PART NUMBER | P.A.D.S CAT. NO | JOINT DESCRIPTION | CABLE JOINT STYLE |
| SPS 107 | 54/37079 | CABLE JOINT KIT FOR UNSCREENED 2 CORE 1.5sqmm DATA-LINK CABLE |
1×6/166065Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1×6/166065 |
| SPS 108 | 54/15877 | CABLE JOINT KIT FOR 2 CORE 1.5sqmm WITH ADDITIONAL SCREENING CORE | 1×6/167020Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1×6/167020 |
| SPS 720 | 54/37070 | MOISTURE BARRIER KIT FOR SCREENED OR UN- SCREENED DATA-LINK CABLE |
 |
Rail Cable Accessories, Electrification & Installation Equipment
Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.
Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
