Cable Terminations

Low voltage heat shrink cable terminations are available in 3 or 4 core versions with cable conductor range of 4-300sqmm suitable for PILC cables. Cable termination kits using heat shrink technology are suitable for indoor and outdoor terminating of low voltage power cables.

  • Cable Termination Type – Heat Shrink
  • Termination Location – Indoor/Outdoor
  • Voltage – 0.6/1kV
  • Cable Insulation Type – PILC Paper Insulated Lead Covered
  • Number of Cores – 3 or 4
  • Conductors – 4sqmm, 6sqmm, 10sqmm, 16sqmm, 25sqmm, 35sqmm, 50sqmm, 70sqmm, 95sqmm, 120sqmm, 150sqmm, 185sqmm, 240sqmm, 300sqmm
  • Heat Shrink Standard Tail Length – 600mm/1000mm
0.6/1kV Heat Shrink Terminations LV 3/4 Core PILC Cables

0.6/1kV Heat Shrink Terminations LV 3/4 Core PILC Cables


HV Cable Joints, Terminations & Connectors

3M-Nexans-Pfisterer

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

Thorne & Derrick hold large stocks of 11kV 33kV 66kV Joints & Terminations suitable for XLPE, PILC and EPR cables, in both heat shrink and Cold Shrink technologies, to service the medium/high voltage power cable accessory requirements of UK and international customers.

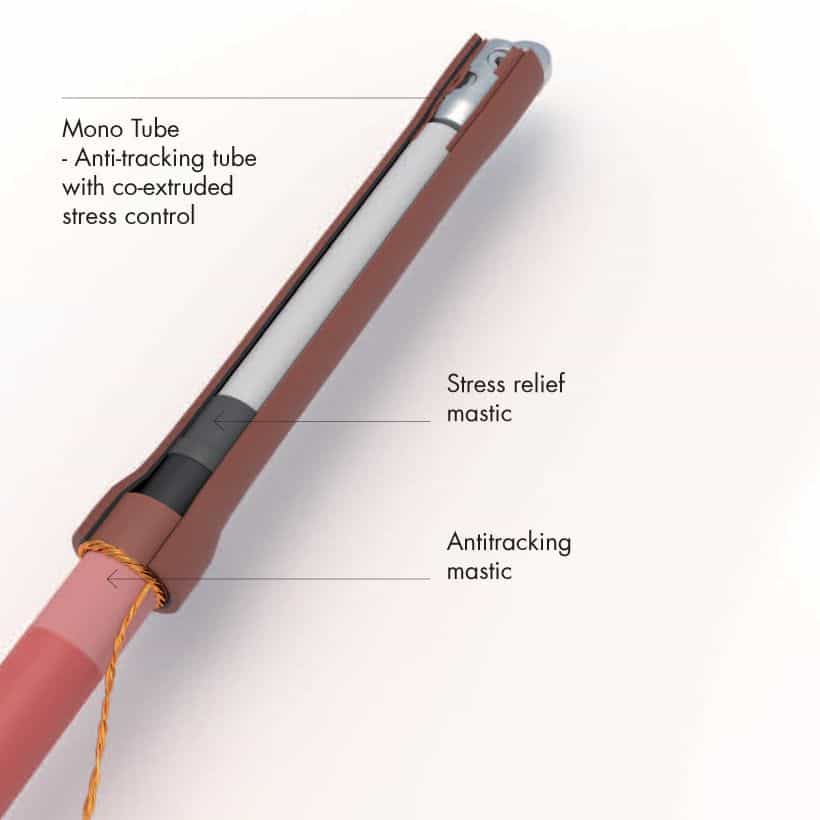

Nexans MONO is a range of HV terminations featuring an integrated heat shrink stress control field and anti-tracking insulating tube, which can withstand humidity, extreme temperatures, UV radiation, and heavy polluted environments.

Nexans MONO is a range of HV terminations featuring an integrated heat shrink stress control field and anti-tracking insulating tube, which can withstand humidity, extreme temperatures, UV radiation, and heavy polluted environments.


Cable Termination Kits | LV 3/4 Core PILC Cables 0.6/1kV

SPS Part Number Cable Termination Range Heat Shrink Tail Length
SPS 4-35-600-3 4-35sqmm 600mm
SPS 4-35-1000-3 4-35sqmm 1000mm
SPS 50-150-600-3 50-150sqmm 600mm
SPS 50-150-1000-3 50-150sqmm 1000mm
SPS 185-300-600-3 185-300sqmm 600mm
SPS 185-300-1000-3 185-300sqmm 1000mm

Table above lists part number for 3 core Cable Termination Kits, if 4 core, last digit should read – 4 Example: SPS 50-150-600-4
