Battery Powered Cable Crimping Tool 6-300sqmm – Klauke EKM 60/22 IS ISM VDE
Klauke EKM 60/22 IS ISM VDE HYDRAULIC BATTERY POWERED crimping TOOL
£POA

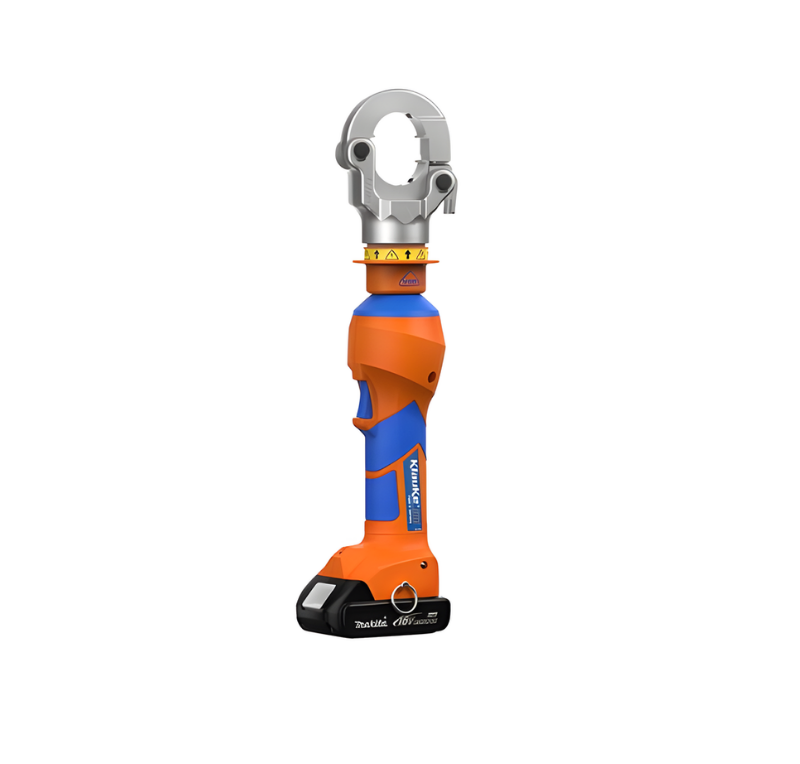

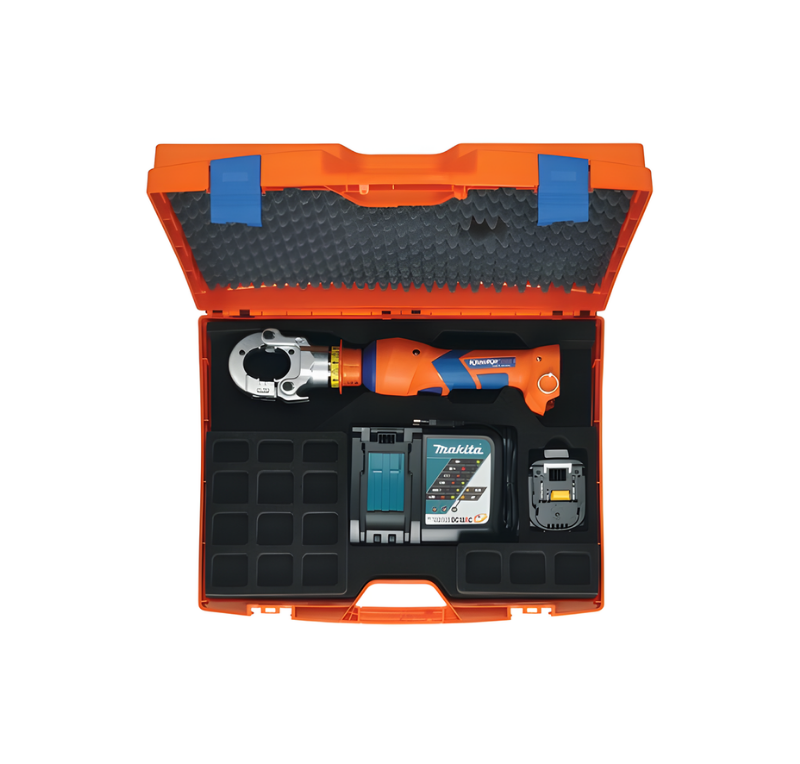

The Klauke EKM 60/22 IS ISM VDE is a battery powered hydraulic crimping tool designed for safe crimping of connectors from 6mm² to 300mm².
KLAUKE EKM 60/22 IS ISM VDE HYDRAULIC crimping TOOL
The Klauke EKM 60/22 is a battery powered cable crimping tool that has a large crimping range for cable lugs and connectors up to 300sqmm – suitable for crimping tubular cable lugs and connectors.
The EKM 60/22 is part of the Klauke Orange Tool range insulated and VDE certified to 1000 V for increased safety when working on potentially voltage-carrying electrical equipment or crimping conductors to facilitate the installation of joints and terminations.
The orange housing of the battery powered cable crimping tool makes it easily differentiated from standard crimping tools and the built-in display allows user to view all tool data instantly.
➡ See also: Battery Operated Cable Cutting Tools & Battery Operated Cable Crimping Tools
Contact our experts to order or learn more about the Klauke EKM 60/22 IS ISM VDE and our full range of Klauke crimping tools, batteries, dies and accessories.
We provide technical advice, quotations and fast delivery for both UK and export projects.
Contact Our Experts
BATTERY POWERED PRESSING TOOL – SPECIFICATIONS (BOSCH BATTERY SYSTEM – EKM 60/22 IS ISM VDE)
EKM 60/22 IS ISM VDE Electrical Features
|
| Head type |
Closed head with bolt interlock, rotatable, flip top style |
| Crimping range |
6 – 300 mm² |
| Crimping force |
60 kN |
| Stroke |
17.5 mm |
| Crimping cycle |
2 s (for ARS) and 5 s (depending on crimp cross-section) |
| Battery charging time |
15 mins |
| Weight including battery |
3.1 kg |
| Ambient temperature |
-10 °C to 40 °C |
BATTERY POWERED PRESSING TOOL – SPECIFICATIONS (MAKITA BATTERY SYSTEM – EKM 60/22 IS ISM VDE)
EKM 60/22 IS ISM VDE Electrical Features
|
| Head type |
Closed head with bolt interlock, rotatable, flip top style |
| Crimping range |
6 – 300 mm² |
| Crimping force |
60 kN |
| Stroke |
17.5 mm |
| Crimping cycle |
2 s (for ARS) to 5 s (depending on crimp cross-section) |
| Number of crimps |
Approx. 150 – 200 at 150 mm² Cu DIN |
| Battery voltage |
18 V |
| Battery capacity |
1.5 Ah, Li-Ion |
| Battery charging time |
15 mins |
| Weight including battery |
3.1 kg |
| Ambient temperature |
-10 °C to +40 °C |
HYDRAULIC CRIMPING TOOL – FEATURES
Choose your battery system: Bosch or Makita
- VDE certified insulated tool suitable for live working up to 1000V
- Housing in Signal Orange for simple differentiation from standard tools
- Battery powered hydraulic crimping system for fast and efficient connection making
- Crimping capacity from 6mm² to 300mm²
- Closed head with bolt interlock, rotatable, flip top style
- Quality assurance via visual and audible signals in case of error
- Simple one-button operation for safe and straightforward tool control
- Balanced centre of gravity for effortless working
- Integrated LED work light for improved visibility in low light working environments
- Automatic retraction once the crimping cycle is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Battery charge and service display for ready-to-use status indication
- Bluetooth connectivity for easy data readout
- Suitable for 22-series interchangeable crimping dies, narrow crimping
CRIMPING TOOL – SUITABILITY
The hydraulic crimping tool offers powerful, controlled pressing performance and is suitable for professional electrical installation, utility and industrial maintenance applications.
| Connection Material |
Crimping Range |
Head Type |
| Copper lugs and connectors with compatible 22-series dies |
6 – 300 mm² |
Closed head, rotatable, flip top |
KLAUKE EKM 60/22 IS ISM VDE – COMPATIBILITY / CRIMPING DIES
| Die Series |
Description |
| R 22 |
Copper tubular cable lugs and connectors, standard design, switch cabinet connections |
| IS 22 |
Insulated cable lugs and connectors, insulated pin terminals |
| F 22 |
Tubular cable lugs and connectors for fine stranded conductors |
| M 22 |
Tubular cable lugs and connectors for solid conductors |
| N 22 |
Tubular cable lugs and connectors – Ni / VA applications |
Cable Tools
Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
Data Sheets
Klauke Orange Tools Insulated Crimp Cut ToolsDownload
