Battery Powered Cable Crimping Tool 10-240sqmm – Klauke EKM 60 ID ISM VDE

Klauke EKM 60 ID ISM VDE

Insulated Battery Powered

Cable Crimping Tool

Klauke EKM 60 ID ISM VDE | Electrical Safety Tools

Orange Tools with Insulated Protection for Cutting & Crimping Cables

The Klauke EKM 60 is a battery powered cable crimping tool that has a large crimping range for cable lugs and connectors up to 240sqmm – suitable for crimping tubular cable lugs and connectors.

The EKM 60 is part of the Klauke Orange Tool range insulated and VDE certified to 1000 V for increased safety when working on potentially voltage-carrying electrical equipment or crimping conductors to facilitate the installation of joints and terminations.

The orange housing of the battery powered cable crimping tool makes it easily differentiated from standard crimping tools and the built-in display allows user to view all tool data instantly.

Extra large crimping area due to innovative 2-stage telescopic cylinders (patent pending) and indent crimping so no change of dies is required.

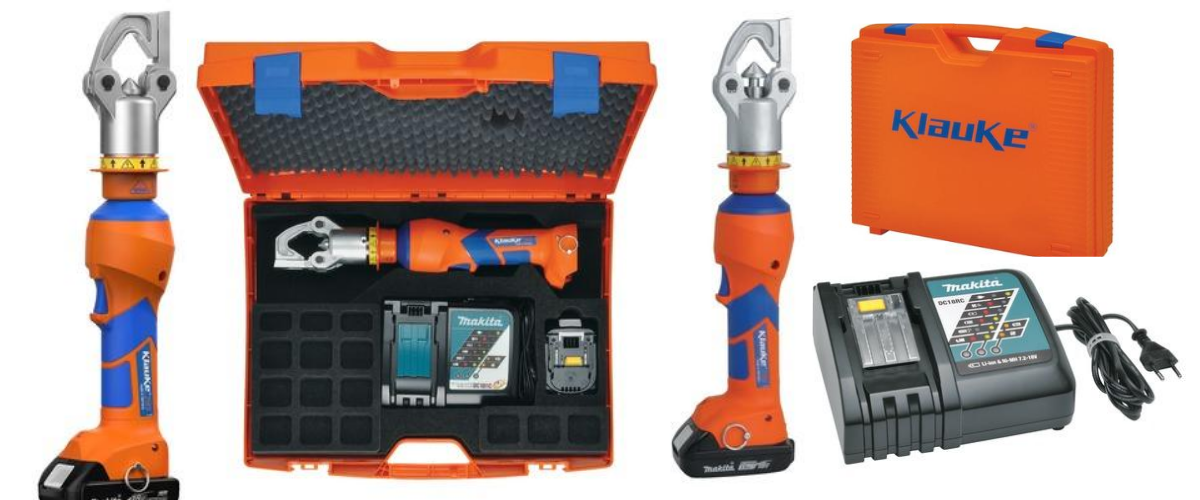

KLAUKE EKM60

CABLE CRIMPING TOOL

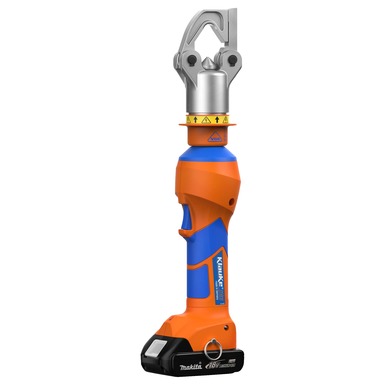

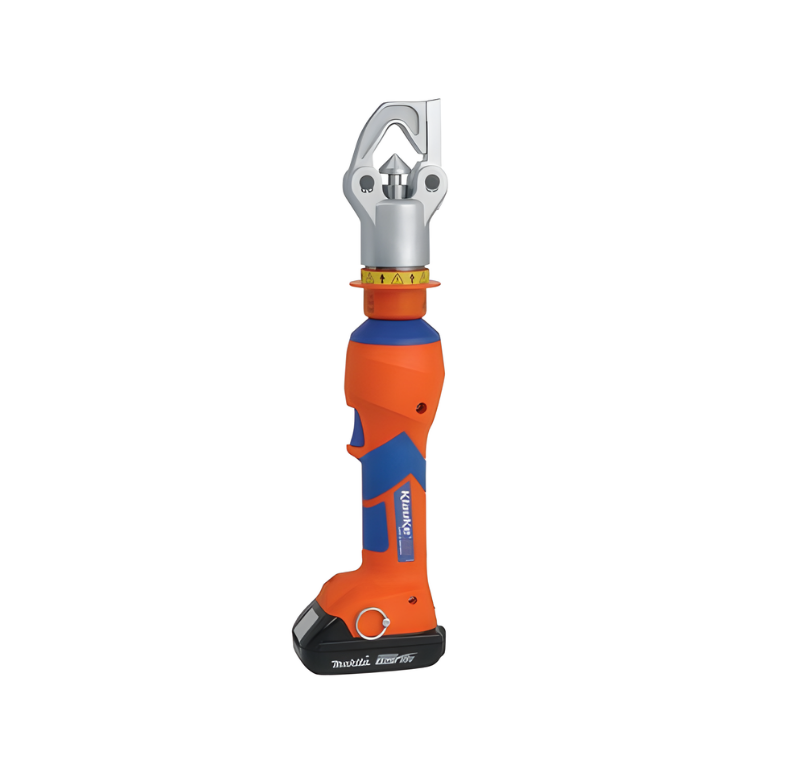

Klauke EKM60 with innovative 2-stage telescopic cylinder
Closed head, flip top style, rotatable
Quality assurance via visual and audible signals in case of error
Simple and safe: One-button operating concept for controlling all tool functions
Effortless working due to balanced centre of gravity
LED for work area illumination
Always ready-to-use thanks to battery charge and service display

suitable for

Very well suited for compacted conductors
Especially for fine strand conductors according to DIN VDE 60228

Klauke EKM60 ISM VDE

TECHNICAL SPECIFICATION

The following table outlines the performance specification of the Klauke EKM60 ISM VDE crimping tool:

Cable crimping force	-30-60 kN
Stroke	35.5 mm
Crimping tool range Cu	10-240qmm
Crimping tool range Al	50-240sqmm
Crimping tool cycle	2 s (for MRS) to 7 s (depending on crimping cross-section)
Number of crimps	approx 100-300
Battery voltage	18 V
Battery capacity	1.5 Ah, Li-Ion
Charging time	15 min
Weight incl. battery	2.6 kg
Ambient temperature	-10°C to +40°C

Klauke EKM 60 ID ISM VDE – Orange Tools

BATTERY POWERED CABLE CRIMPING TOOL – DIES

The following tables show the correct die sets to use for installing cable lugs, connectors, joints and end sleeves using Klauke EKM60 ISM VDE crimping tool:

Suitable for	Crimping range sqmm	Crimp Profile
Copper tubular cable lugs and connectors
Tubular cable lugs and connectors, standard type, Tubular cable lugs for switch gear connections	10 – 240	Standard tubular cable lugs, tubular cable lugs for switchgear connections
Tubular cable lugs and connectors for fine stranded conductors	10 – 240	Tubular cable lugs and connectors for fine wire conductors

Suitable for	Crimping range sqmm	Crimp Profile
Terminals, connectors and pin terminals acc. to DIN
Solderless terminals (DIN 46234) connectors and pin terminals (DIN 46230, DIN 46341)	10 – 240	Crimp terminals, connectors and pin terminals

Suitable for	Crimping range sqmm	Crimp Profile
Aluminum compression cable lugs and connectors
Aluminum compression cable lugs and connectors acc. to DIN	50 – 240	Pressed cable lugs and connectors according to DIN – Al
Compression joints for full tension connections of Aldrey conductors acc. to DIN EN 50182, Al-conductor acc. to DIN EN 50182, 120 – 185 mm2	50 – 185	Press connector for tension-resistant connections of Aldrey ropes
Compression joints acc. to DIN 48085, part 3 for Al/St-cable acc. to DIN EN 50182	50 – 240	Press connector after DIN 48085, Teil 2

Suitable for	Crimping range sqmm	Crimp Profile
Aluminum/copper compression cable lugs and connectors
Aluminum/copper compression cable lugs and connectors	50 – 240	Pressed cable lugs and connectors according to DIN – Al / Cu

CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
