Klauke EMS55 CU | Ratchet Cable Cutters up to 50mm | Overhead Line & SWA Armoured Cables

Klauke EMS55 CU | Ratchet Cable Cutters up to 50mm

Ratchet Cable Cutter | Klauke EMS55 CU

Thorne & Derrick | Distributed from Stock | Approved Klauke Tools Supplier | UK & Export Sales

Cable Cutting Tools Supplier | Electromechanical Ratchet Type

Cable Cutting Tools


Klauke EMS55 CU Cable Cutters

Ratchet Cable Cutter

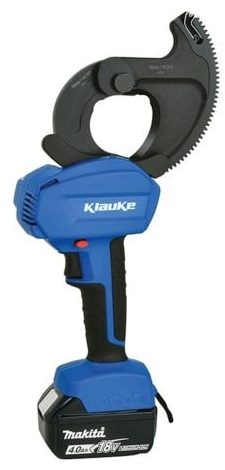

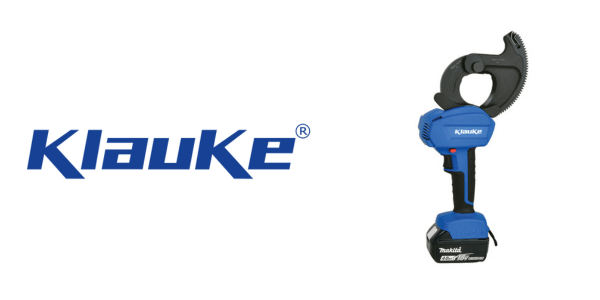

Klauke EMS55 CU is a ratchet cable cutter suitable for cutting stranded and fine-stranded copper and aluminium conductors/cables, with the ability to deliver optimal cutting results without manual reworking. The EMS55 CU has durable tool mechanics thanks to cleaning brush located on the cutting edges with a maximum cable cutting diameter of up to 50mm.

*Please note: Klauke may make improvements and/or changes in the specifications of cable cutting tools at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.

Ratchet Cable Cutter Klauke EMS 55 CU

See also | Klauke EMS55 ST | Ratchet Cable Cutters up to 45mm | Overhead Line & SWA Armoured Cables




RATCHET CABLE CUTTER SPECIFICATIONS

  • Klauke Part Reference –EMS55 CU
  • Tool Head TypeSickle closed
  • Conductor Classes1.2 and 5 Conductor
  • Maximum Cable Cutting Range – 50mm dia
  • Tool Weight including Battery – 3.4kg
  • Cable Cutting Time8 s to 10 s (depending on material thickness)
  • Number of Cuts150 cuts at 500mm² Copper Cl. 2
  • Battery Charging Time15 mins
Klauke Ratchet Cable Cutters Full Kit EMS 55CU

Klauke Ratchet Cable Cutters Full Kit | EMS 55CU


Klauke EMS55 CU

Features

  • 2-component housing
  • Durable gear
  • Change of cutting direction via toggle button (red)
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • Maintenance-free cable cutting tool
  • Battery System: Makita

Insulated Cable Cutting Tools

The Klauke ES32SISML-WSH is a battery powered cable cutting tool with a maximum cutting range of 32mm suitable for use with copper and aluminium conductors up to 300sqmm. The Klauke ES32SISML insulated cable cutter has a slim cutting head for Jointers working in substations, switchgear and trenches with confined spaces – this insulated tool provides advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V AC, 1500V DC.

The cable cutting tool is typically used by UK DNO’s and their ICP Contractors to core cut 185sqmm, 240sqmm and 300sqmm BS7870 Waveform 600/1000V cables – improved worker safety with RSI reduction and electrical shock protection.

Cable Cutting Tools

Approved by National Grid UK | UK DNO Approvals UKPN & Scottish Power Energy Networks (SPEN) | LV Jointers | Insulated Jointing Tools


Klauke

➡ Should you require any technical advice or support to select the correct cable cutting tool for the application please do not hesitate to contact Thorne & Derrick’s technical sales team – see our full range of hydraulic or battery type cable cutting and crimping tools.
