Klauke EMS55 ST | Ratchet Cable Cutters up to 45mm | Overhead Line & SWA Armoured Cables

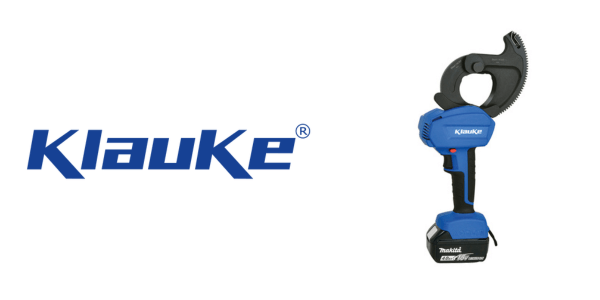

Klauke EMS55 ST Ratchet Cable Cutters up to 45mm

Ratchet Cable Cutters | Klauke EMS55 ST

Thorne & Derrick | Distributed from Stock | Approved Klauke Tools Supplier | UK & Export Sales

Cable Cutting Tools Supplier | Electromechanical Ratchet Type

Cable Cutting Tools

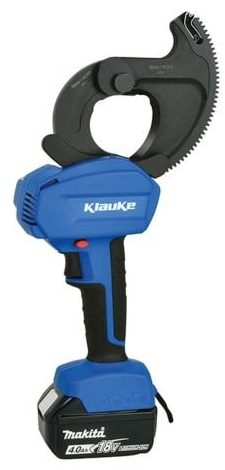

Klauke EMS55 ST Cable Cutters

Ratchet Cable Cutter

Klauke EMS55 ST is a ratchet cable cutter suitable for cutting overhead lines, armoured wires, and cables (class 1 and class 2), with the ability to deliver optimal cutting results without manual reworking. The EMS55 ST has durable tool mechanics thanks to cleaning brush located on the cutting edges with a maximum cable cutting diameter of up to 40mm.

*Please note: Klauke may make improvements and/or changes in the specifications of cable cutting tools at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.

Ratchet Cable Cutter | Klauke EMS55 ST

See Also | Klauke EMS55 CU | Ratchet Cable Cutters up to 50mm | Overhead Line & SWA Armoured Cables


RATCHET CABLE CUTTER SPECIFICATIONS

  • Klauke Part Reference – EMS55 ST
  • Tool Head TypeSickle closed
  • Conductor Classes1, 2 and ACSR Conductor
  • Maximum Cable Cutting Range – 45mm dia
  • Tool Weight including Battery – 3.4kg
  • Cable Cutting Time8 s to 10 s (depending on material thickness)
  • Number of Cuts150 cuts at 500mm² Copper Cl. 2
  • Battery Charging Time15 mins

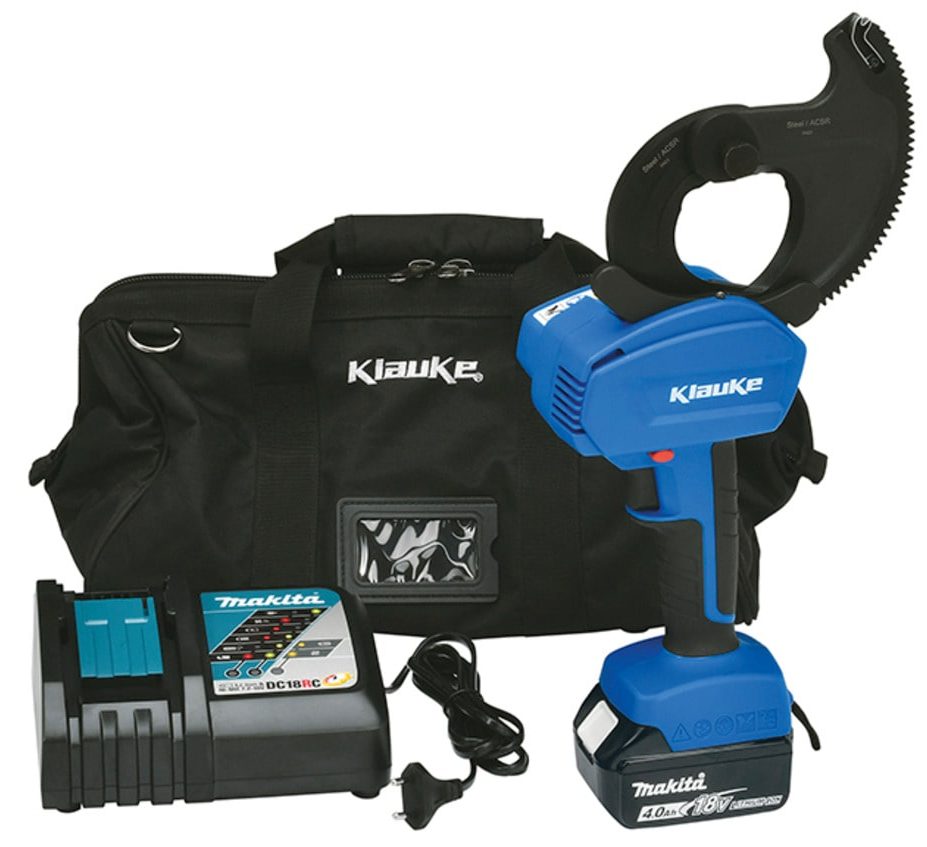

Klauke Ratchet Cable Cutters Full Kit

Klauke Ratchet Cable Cutters Full Kit | EMS55 ST


Klauke EMS55 ST

Features

  • 2-component housing
  • Durable gear
  • Change of cutting direction via toggle button (red)
  • Simple and safe: one-handed operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • Maintenance-free cable cutting tool
  • Battery System: Makita

Insulated Cable Cutting Tools

The Klauke ES32SISML-WSH is a battery powered cable cutting tool with a maximum cutting range of 32mm suitable for use with copper and aluminium conductors up to 300sqmm. The Klauke ES32SISML insulated cable cutter has a slim cutting head for Jointers working in substations, switchgear and trenches with confined spaces – this insulated tool provides advanced worker and electrical protection to utility contractors working live in the vicinity of energised Mains and Service cables up to 1000V AC, 1500V DC.

The cable cutting tool is typically used by UK DNO’s and their ICP Contractors to core cut 185sqmm, 240sqmm and 300sqmm BS7870 Waveform 600/1000V cables – improved worker safety with RSI reduction and electrical shock protection.

Cable Cutting Tools

Approved by National Grid UK | UK DNO Approvals UKPN & Scottish Power Energy Networks (SPEN) | LV Jointers | Insulated Jointing Tools


Klauke

➡ Should you require any technical advice or support to select the correct cable cutting tool for the application please do not hesitate to contact Thorne & Derrick’s technical sales team – see our full range of hydraulic or battery type cable cutting and crimping tools.
