Lineside Multicore Signalling Cable Joint Kits

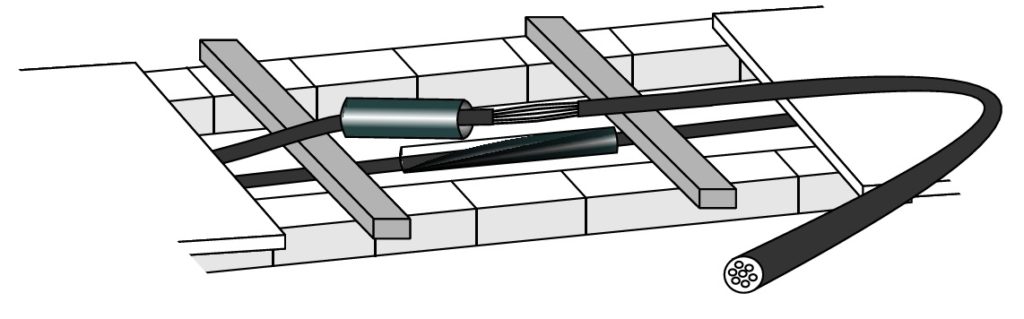

The below table features all lineside multicore signalling cable joint kits complete with crimp connectors including heat shrink and featuring SPS part numbers, PADS Network Rail approvals and cable joint description.

Other Heat Shrink Cable Joints For Rail Cable Connections

SPS PART NUMBER	P.A.D.S CAT. NO	CABLE JOINT DESCRIPTION SIZE (sqmm)	CABLE P.A.D.S CAT. NO
SPS 071	54/15870	7 CORE 1.5 JOINT	6/120091
SPS 071	54/15870	10 CORE 0.75-1.5 JOINT	6/120093 AND 6/120094
SPS 071	54/15870	12 CORE 0.75-1.5 JOINT	6/120096 AND 6/120097
SPS 072	54/15871	19 CORE 0.75-1.5 JOINT	6/120099 AND 6/120100
SPS 073	54/15874	27 CORE 0.75-1.5 JOINT	6/120102 AND 6/120103
SPS 074	54/15872	37 CORE 0.75-1.5 JOINT	6/120105 AND 6/120106
SPS 075	54/37009	48 CORE 0.75-1.5 JOINT	6/120108 AND 6/120109
SPS 076	54/15880	61 CORE 0.75-1.5 JOINT
SPS 703	54/37120	7 CORE 2.5 JOINT	6/120092
SPS 703	54/37120	10 CORE 2.5 JOINT	6/120095
SPS 703	54/37120	12 CORE 2.5 JOINT	6/120098
SPS 704	54/37121	19 CORE 2.5 JOINT	6/120101
SPS 705	54/37122	27 CORE 2.5 JOINT	6/120104
SPS 706	54/37123	37 CORE 2.5 JOINT	6/120107
SPS 707	54/37124	48 CORE 2.5 JOINT	6/120110

Lineside Multicore Signalling Cable Joint Kits

For Non Standard Applications

Lineside Multicore Signalling Cable Joint Kits

The below table features all lineside multicore signalling cable joint kits for non standard applications including SPS part numbers, PADS Network Rail approvals, cable joint description and cable size.

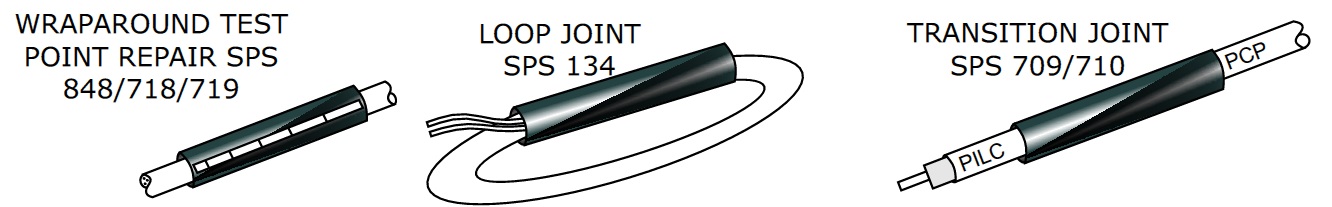

SPS PART NUMBER	P.A.D.S CAT. NO	CABLE SIZE (sqmm)	CABLE JOINT DESCRIPTION
SPS 848	—	7-10 CORE 0.75-2.5	TEST POINT KITS FOR SIGNALLING CABLE
SPS 718	54/37078	12-27 CORE 0.75-2.5	TEST POINT KITS FOR SIGNALLING CABLE
SPS 719	54/37077	37-48 CORE 0.75-2.5	TEST POINT KITS FOR SIGNALLING CABLE
SPS 134	54/15889	37 CORE 0.75-1.5	INDUCTION LOOP JOINT (REED T/C)
SPS 709	54/15846	37 CORE 0.75-1.5	TRANSITION JOINT TYPE B2 TO PILC
SPS 710	54/15848	19 CORE 0.75-1.5	TRANSITION JOINT TYPE B2 TO PILC

Rail Cable Accessories, Electrification & Installation Equipment

Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.

Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
