Mechanical Cable Drum Jacks

Mechanical Cable Drum Jack


Mechanical drum jacks

Mechanical Drum Jacks for Low & High Voltage Power Cable Installations

The Trailer and Winch Solutions range of Mechanical Drum Jacks are available in 4 variants to suit the pulling-in and laying of LV MV HV power cables into underground trench.

TWS’s cable rollers are specialised equipment used in the telecommunications and utility industries for the efficient installation of cable systems, including fiber optics and power cables. These rollers safely support, guide and protect cables during the cable laying process, minimising cable damage and ensuring smooth deployment into the trench by the cable pullers.

Thorne & Derrick International distribute the most extensive range of Cable Pulling & Cable Laying Equipment to enable the installation of low, medium and high voltage power cables into underground trench or duct.


Drum Jack Selection Guide

The following table includes further insight on Trailer and Winch Solutions range of Cable Drum Jacks available at Thorne & Derrick, including a technical data sheet download for each product to aid ideal selection:

Mechanical Cable Drum Jacks Cable Jack Type Jack Capacity Cable Jack Size Weight Mechanical Drum Jacks Technical Data Sheets

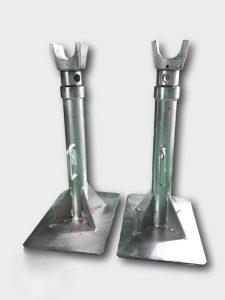

3 Tonne Mechanical Cable Drum Jack 3 Tonne Mechanical Cable Drum Jack 3000Kg/Pr 300x300mm 17Kg Drum Jack Datasheet
6 Tonne Mechanical Cable Drum Jack 6 Tonne Mechanical Cable Drum Jack 6000Kg/Pr 450x300mm 21Kg Drum Jack Datasheet
8 Tonne Mechanical Cable Drum Jacks 8 Tonne Mechanical Cable Drum Jack 8000Kg/Pr 600x300mm 29Kg Drum Jack Datasheet

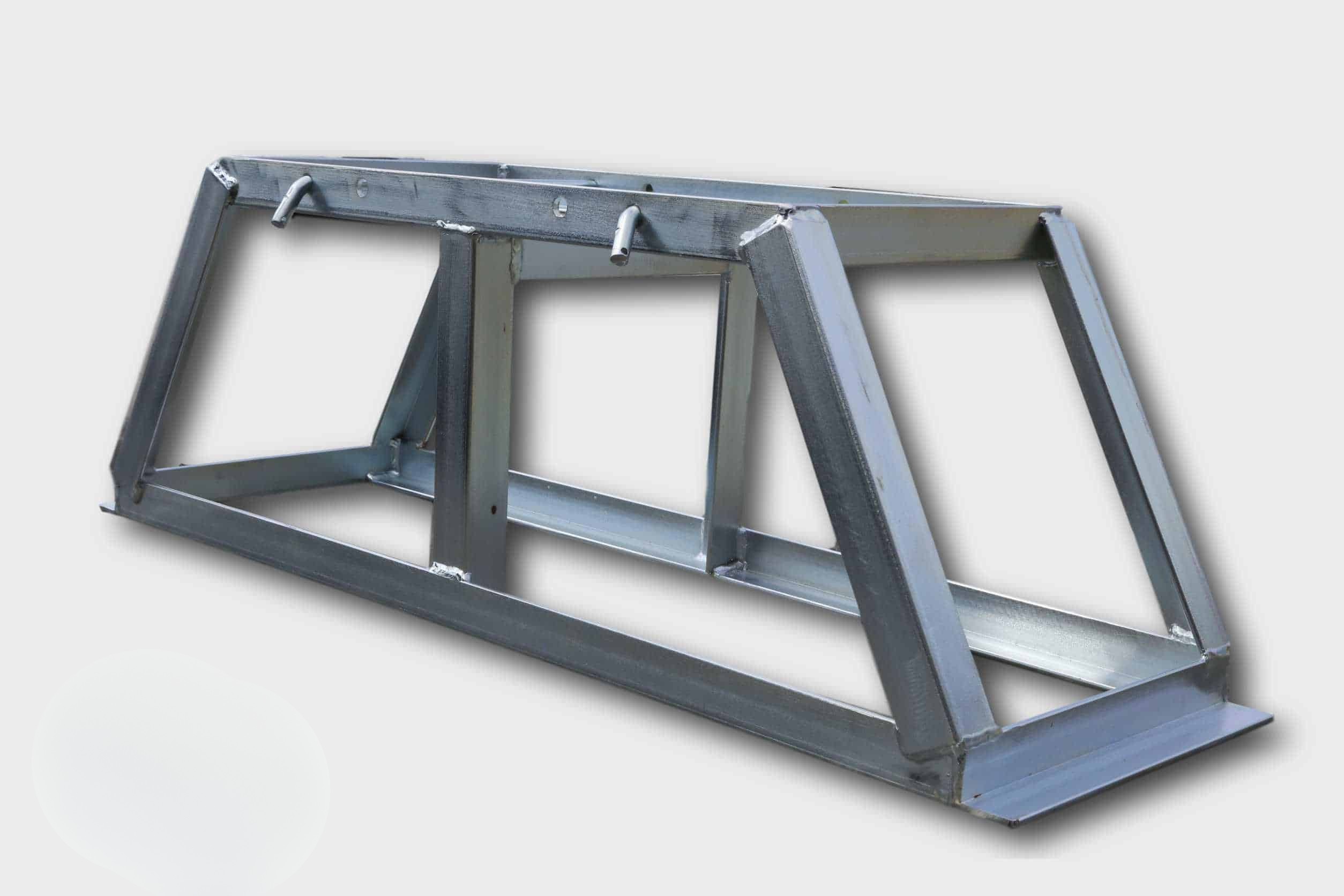

Mechanical Cable Jack Stand MJS01 Mechanical Cable Jack Stand MJS01 Lifts the jack by 300mm 1000mm x 320mm x 340mm high 19Kg Drum Jack Datasheet

tws | trailer & winch solutions ltd

Trailer & Winch Solutions Ltd

Trailer and Winch Solutions Ltd are a manufacturer of cable laying equipment and cable pulling accessories for the following voltage classes: 600/1000V (LV), 11kV 33kV (MV) & 66kV 132kV (HV).

Thorne & Derrick distribute a complete range of LV, MV & HV Cable Pulling Products for installation into trench or duct including LV, 11kV/33kV medium voltage (MV), 66kV/132kV high voltage (HV) and EHV transmission and distribution cables up to 400kV.

Thorne & Derrick

Data Sheets
